Assembly Manual 11
6-2

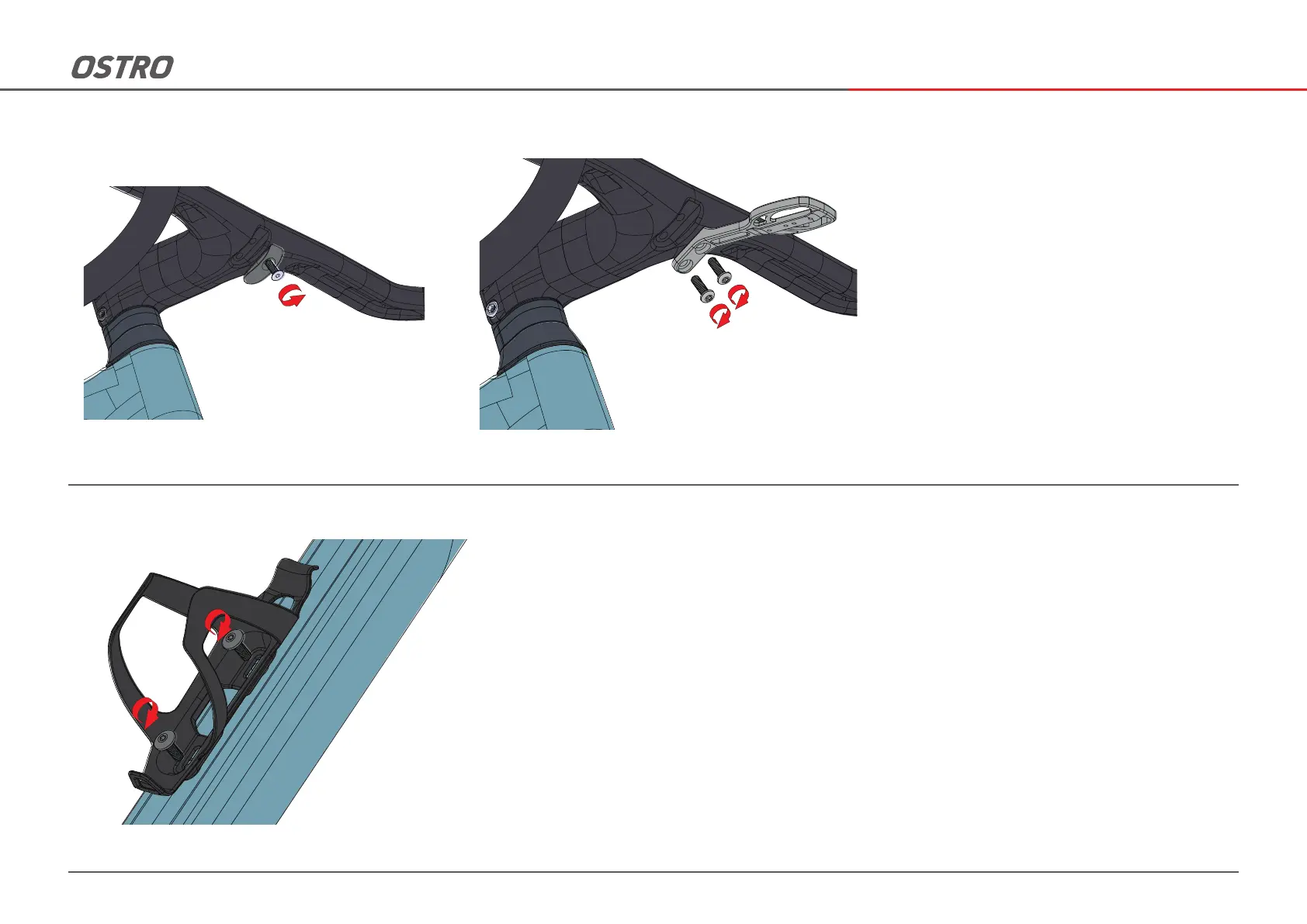

Release the bolt and remove the cover.
Install cages and tighten M5 bolts with T20 Torx to 2 Nm.
Install the computer mount and tighten the 2 bolts to 2 Nm.
6-1
7-1
Computer mount
Bottle cage
