Assembly Manual 13

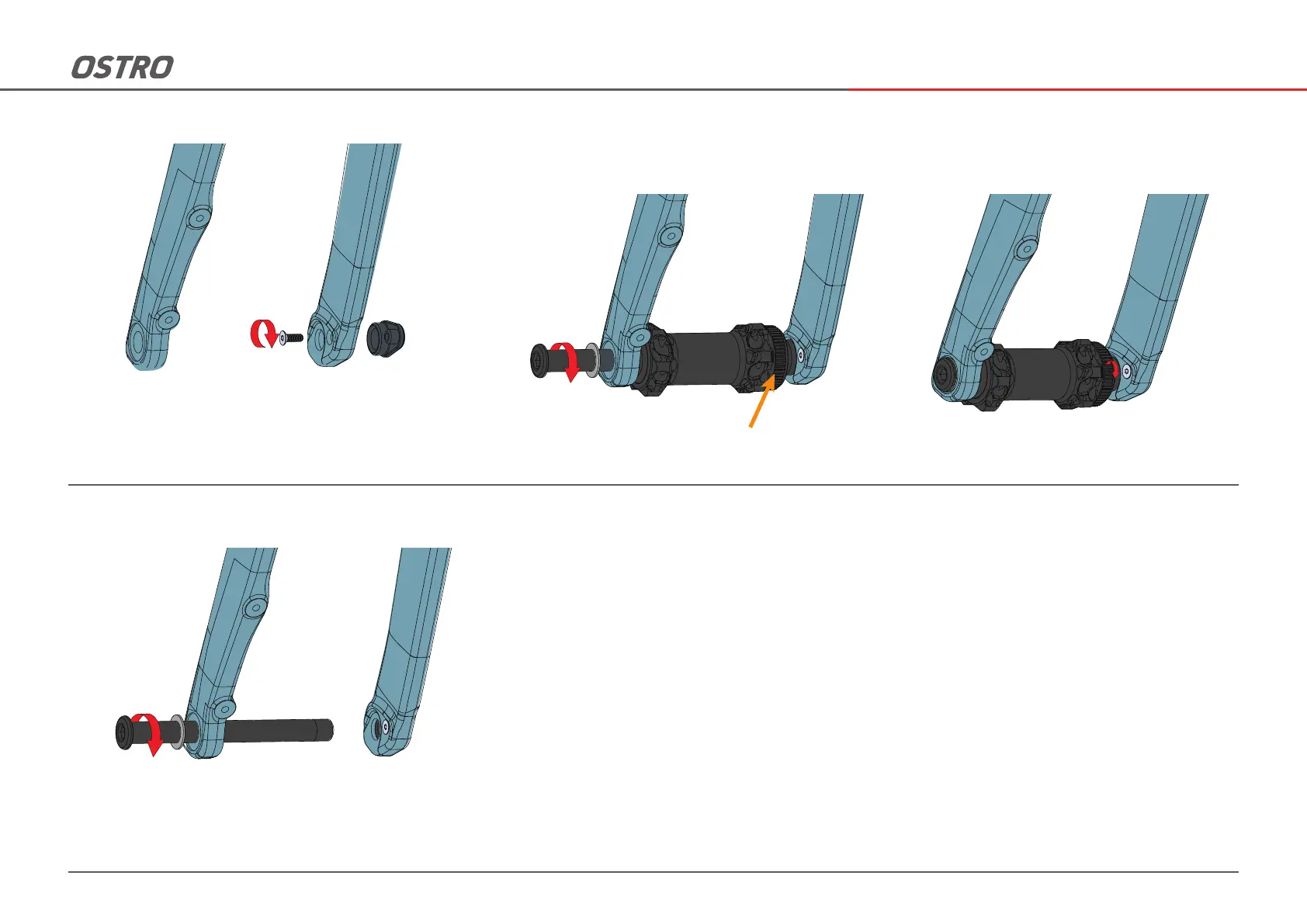

Apply Loctite 243 on bolt threads. Thread the bolt in but do not
tighten, this will allow the insert to align when installing the
axle
Remove the thru-axle and remove the hub. Install front wheel
and tighten the thru axle (with the nylon washer) to 12Nm.
Install a front hub in the dropout with the free hub
on non-drive side. This will allow better access for
the next step. Install the thru-axle with the nylon
washer and tighten to 12Nm
After ensuring the dropout insert is correctly
aligned, tighten the dropout bolt to 1 Nm.
9-1
9-4
9-2 9-3
Fork nut adjustment
rotor-mount
on drive side !
To Next Page
