Assembly Manual 12

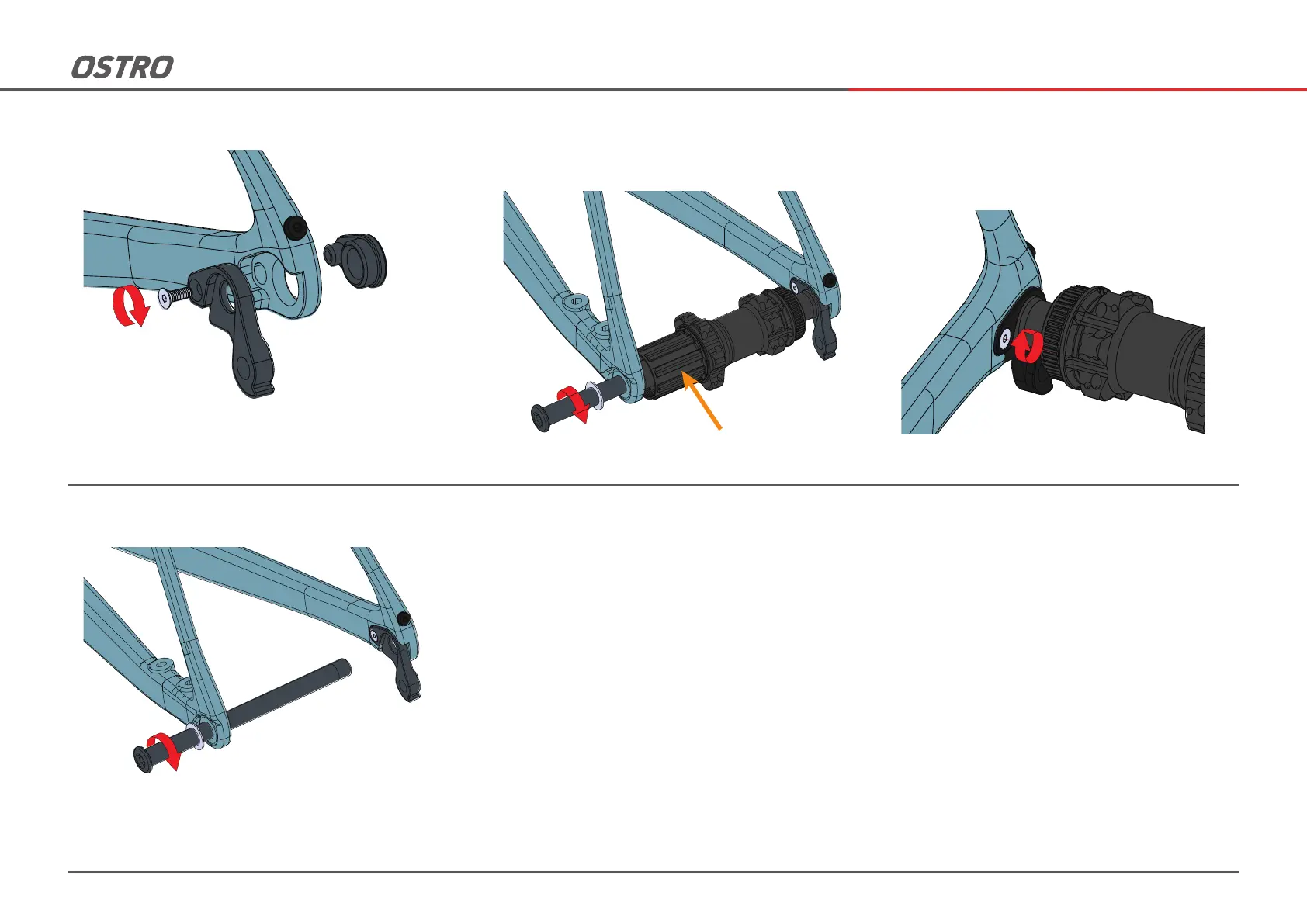

Apply Loctite 243 on bolt threads. Thread the bolt in but do
not tighten, this will allow the insert to align when installing
the axle
Remove the thru-axle and remove the hub. Install the rear
wheel and tighten the thru-axle (with the nylon washer) to
12Nm.
Install a rear hub in the dropout with the free hub on
non-drive side. This will allow better access for the
next step. Install the thru-axle with the nylon
washer and tig hten to 12Nm.
After ensuring the dropout insert is correctly
aligned, tighten the dropout bolt to 1 Nm.
8-1
8-4
8-2 8-3Thru-Axle Installation
freehub on
non-drive side !
