Assembly Manual 05
3-5 3-6 3-7
3-2 3-3 3-4

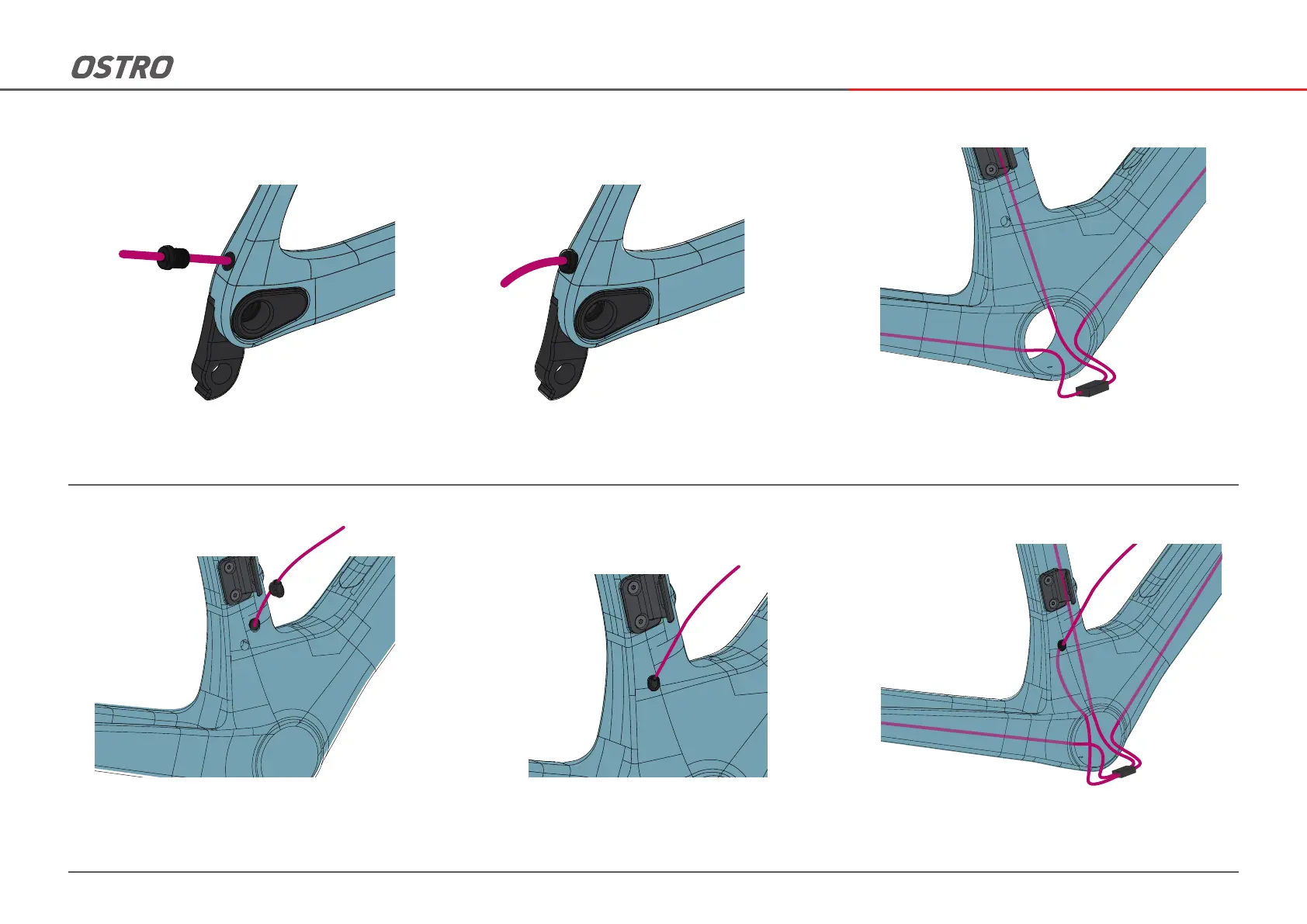

Route the front derailleur Di2 cable through the seat tube
hole to the bottom bracket exit port.
Install Di2 cable grommet.
Connect to the Di2 Junction B
Connect to the Di2 Junction B
Install Di2 cable grommet.
Route the rear derailleur Di2 cable through
the chainstay.
To Next Page
