Factory Cat Micro-HD V2.0 - Central Command Side Panel Controls; Military Grade Side Panel Controls; Legacy Side Panel Controls; Touch Screen Side Panel Controls

- 8 - FC-WALK-BEHIND-V2-OP-EN

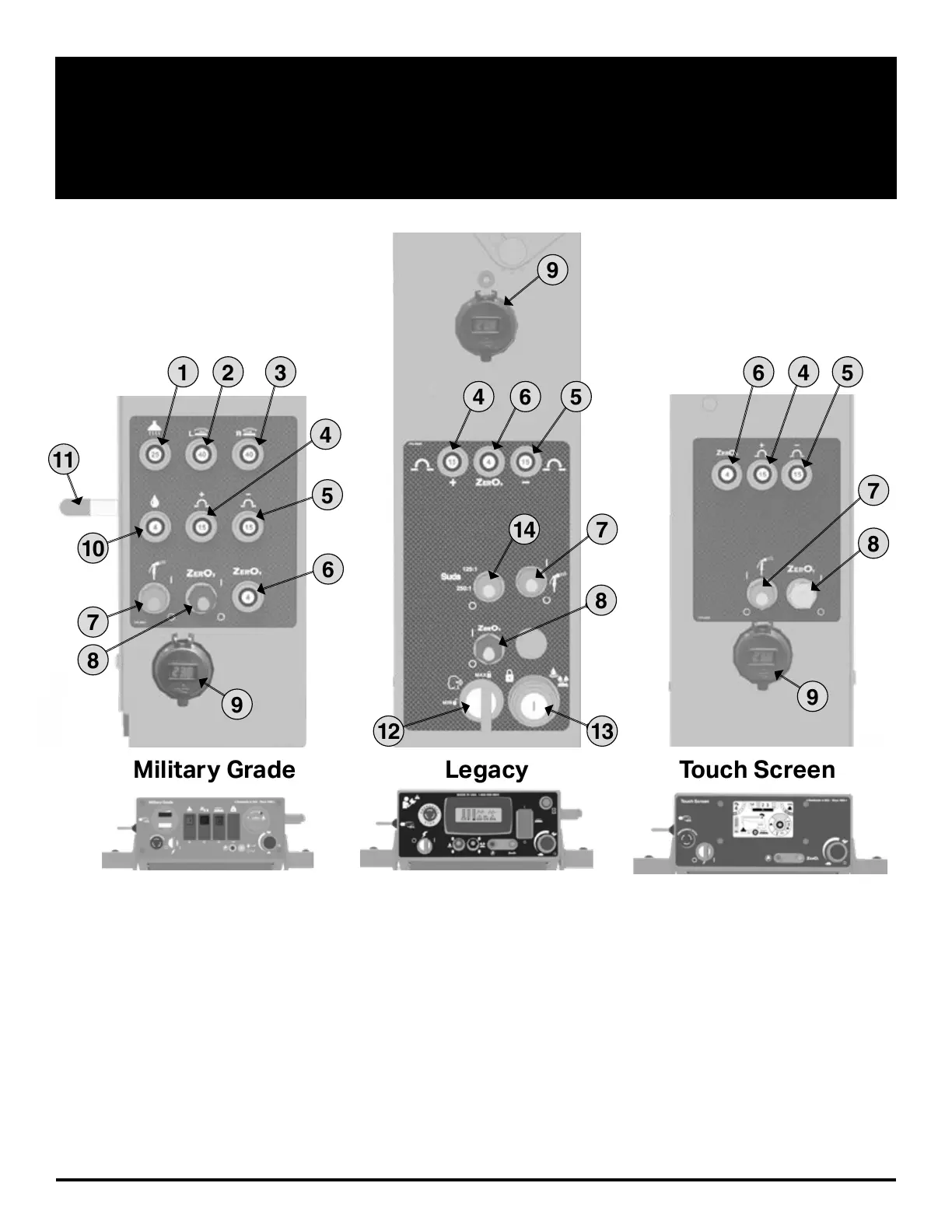

CENTRAL COMMAND SIDE PANEL CONTROLS
1. Vac Circuit Breaker
2. Left Brush Circuit Breaker
3. Right Brush Circuit Breaker
4. Positive BUSS Circuit Breaker
5. Negative BUSS Circuit Breaker
6. ZErO3 Circuit Breaker
7. Spray Jet On (I) / Off (O)
8. ZErO3 On (I) / Off (O)
9. Dual USB Voltmeter
10. Solution Valve Circuit Breaker
11. Military Solution Control Lever
12. Legacy ECON switch Max (locked)
Min (unlocked)
13. Legacy Dual Manager Lockout
Solution/Downpressure
14. Suds Switch 125:1/ 250:1/ Off (O)
2 41 63
4
5
6
5
Touch ScreenLegacy
Military Grade
10
11
9
9
9
7
7
7
14
8
8
8
12 13
64 5
