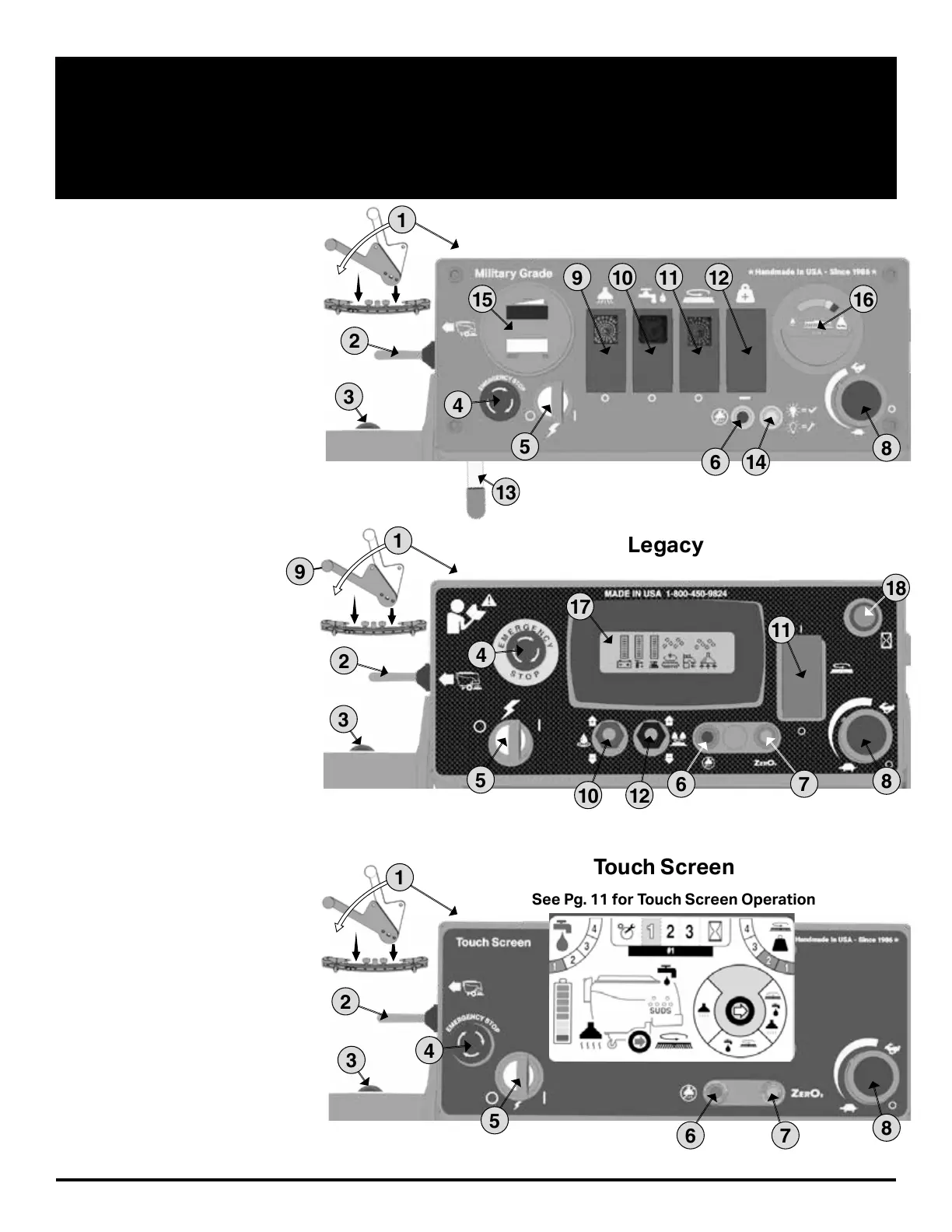

CENTRAL COMMAND DASHBOARD CONTROLS (MILITARY, LEGACY, TOUCH SCREEN)
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
See Pg. 11 for Touch Screen Operation
Touch Screen
Legacy
6 14
18
6
6 7
7
8
9
15 16
10 11 12
13
12
11
17
10
9
8
8
Military Grade
1. Squeegee Lever
2. Reverse Switch
3. Drive Switch (Both Handles)
4. E-Stop
5. Key Switch
6. Vac Clog Light
7. Z
ErO3 Light
8. Speed Potentiometer
9. Vac Switch
10. Solution Switch
11. Scrubdeck Switch
12. Down pressure Switch
13. Military Flow Lever
14. Military Status Light
15. Military Battery Gauge / Hour Meter
Combo
16. Military Down Pressure Gauge
17. Legacy LCD Screen
18. Legacy Hour Meter Button
