Logic analyzer
Example:

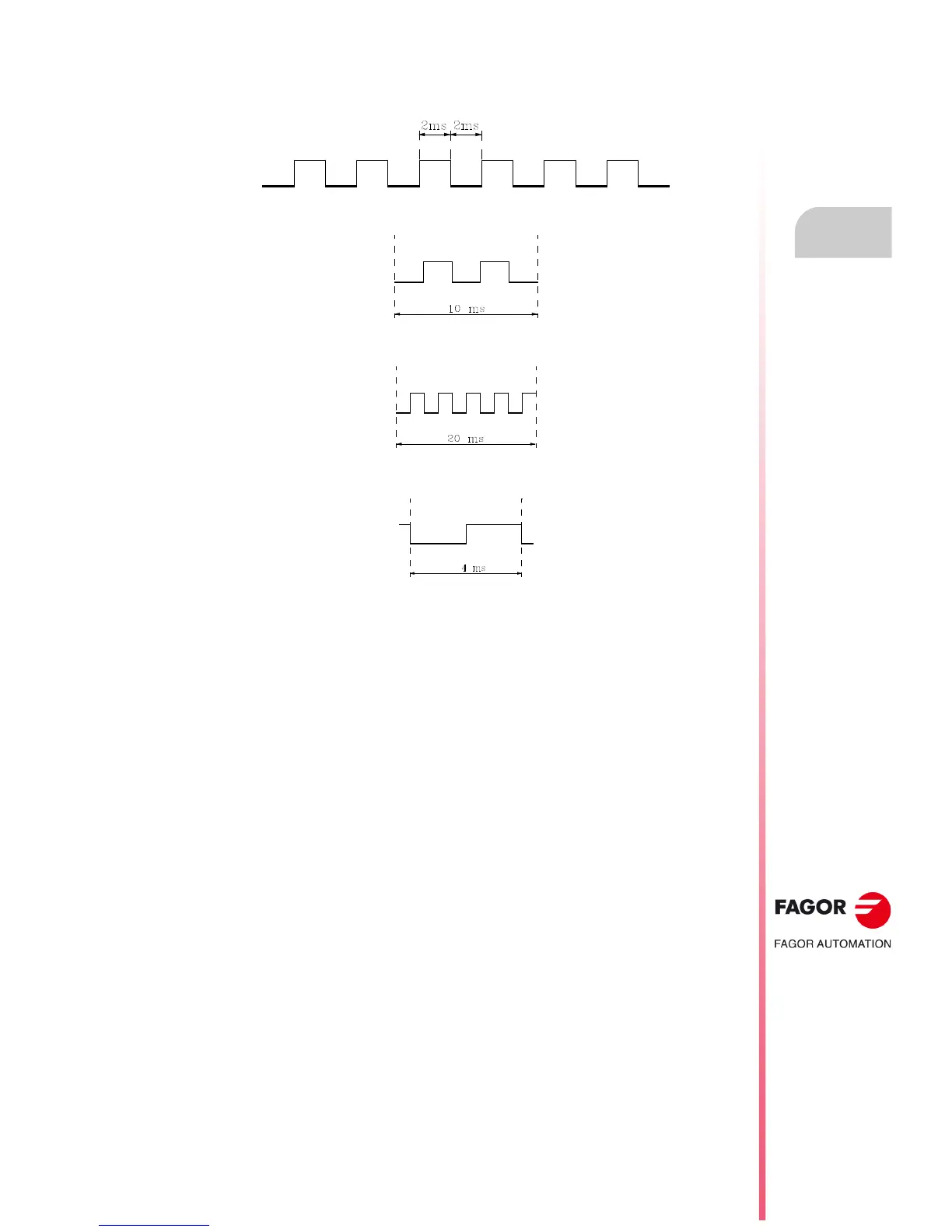

There is a mark that changes states every 2 milliseconds.
Using a 10 millisecond time base, it will look like this:
Using a 20 millisecond time base, it will look like this:
Using a 4 millisecond time base, it will look like this:
The time base is defined in milliseconds and the selected value will be shown in the information
window. By default, the CNC assumes a time base of 10 milliseconds.
At first, a time base may be defined that will match the frequency of the signals to be treated. Then,
when analyzing the trace, that base time may be modified to obtain a higher resolution of the signals.
