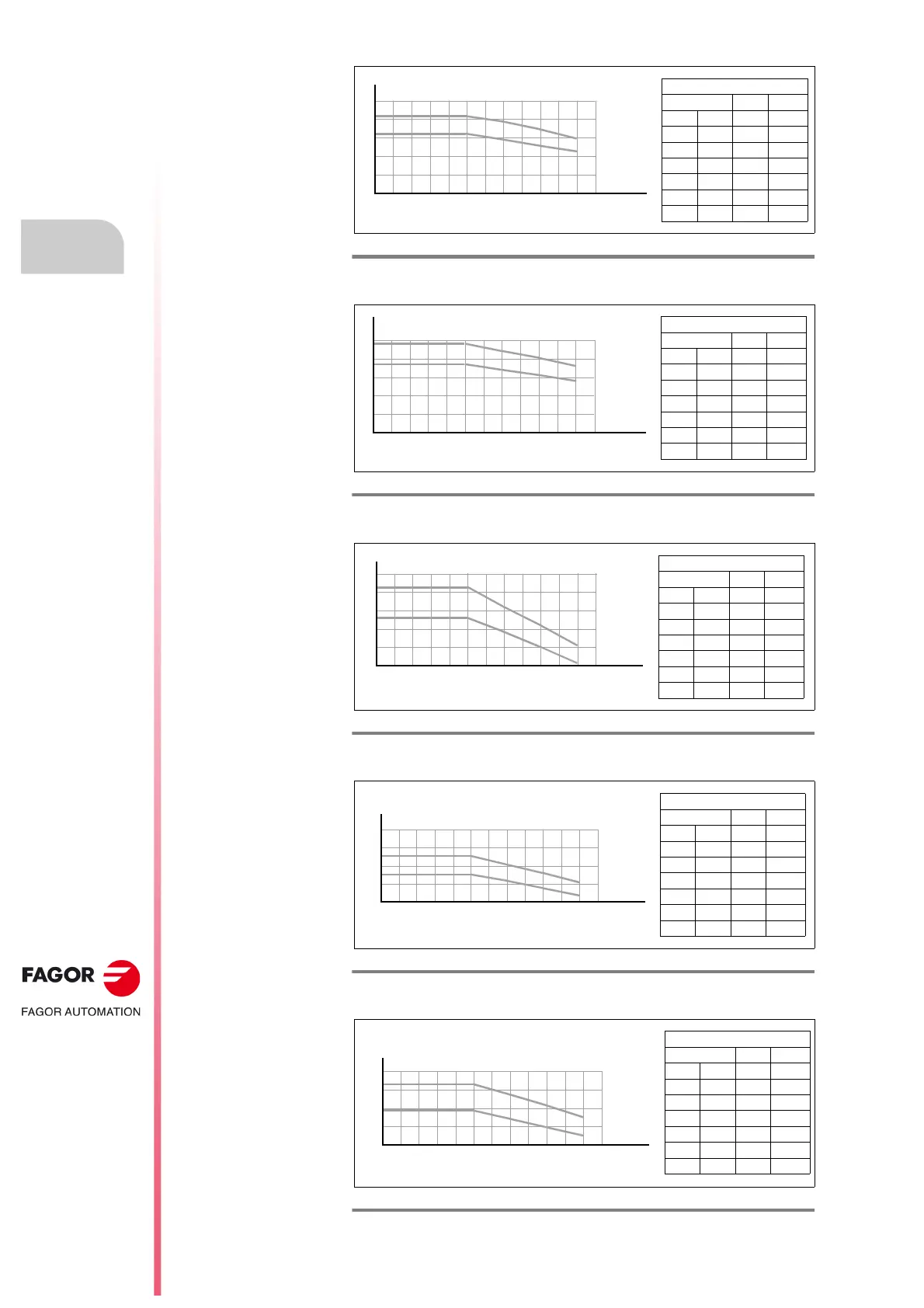

F. H3/39
Current derating on ·SPD 2.75· drives for fc = 8 kHz.
F. H3/40
Current derating on ·SPD 2.85· drives for fc = 8 kHz.
F. H3/41
Current derating on ·SPD 3.100· drives for fc = 8 kHz.
F. H3/42
Current derating on ·SPD 3.150· drives for fc = 8 kHz.
F. H3/43
Current derating on ·SPD 3.200· drives for fc = 8 kHz.
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
30
In
40
10
IS6-40
0
50
SPD 2.75
T ambient In IS6-40
° C ° F A A
35 95 32.0 41.6
40 104 32.0 41.6
45 113 32.0 41.6
50 122 28.9 37.7
55 131 25.7 33.5
60 140 22.5 29.2
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
30
In
40
10
IS6-40
0
50
SPD 2.85
T ambient In IS6-40
° C ° F A A
35 95 37.0 48.1
40 104 37.0 48.1
45 113 37.0 48.1
50 122 34.0 44.2
55 131 31.0 40.3
60 140 27.9 36.3
35 40 55 60
50
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
60
In
70
40
80
IS6-40
30
SPD 3.100
T ambient In IS6-40
° C ° F A A
35 95 56.0 72.8
40 104 56.0 72.8
45 113 56.0 72.8
50 122 48.2 62.7
55 131 40.0 52.1
60 140 31.5 40.9
35 40 55 60
80
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
100
In
120
60
IS6-40
40
SPD 3.150
T ambient In IS6-40
° C ° F A A
35 95 70.0 91.0
40 104 70.0 91.0
45 113 70.0 91.0
50 122 62.8 81.6
55 131 55.3 71.9
60 140 47.4 61.7
35 40 55 60
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
120
In
140
80
IS6-40
60
100
SPD 3.200
T ambient In IS6-40
° C ° F A A
35 95 97.0 126.1
40 104 97.0 126.1
45 113 97.0 126.1
50 122 88.1 114.6
55 131 79.0 102.7
60 140 69.5 90.4
