X5 connector
X5. RS-232 serial line
This connector of the RS-232 serial line board that may be included in a
modular drive is a 9-pin male sub-D connector for RS-232 serial
connection to a PC in order to set the module configuration parameters
and to adjust it.
The description of the pins of this connector is:
F. H3/70

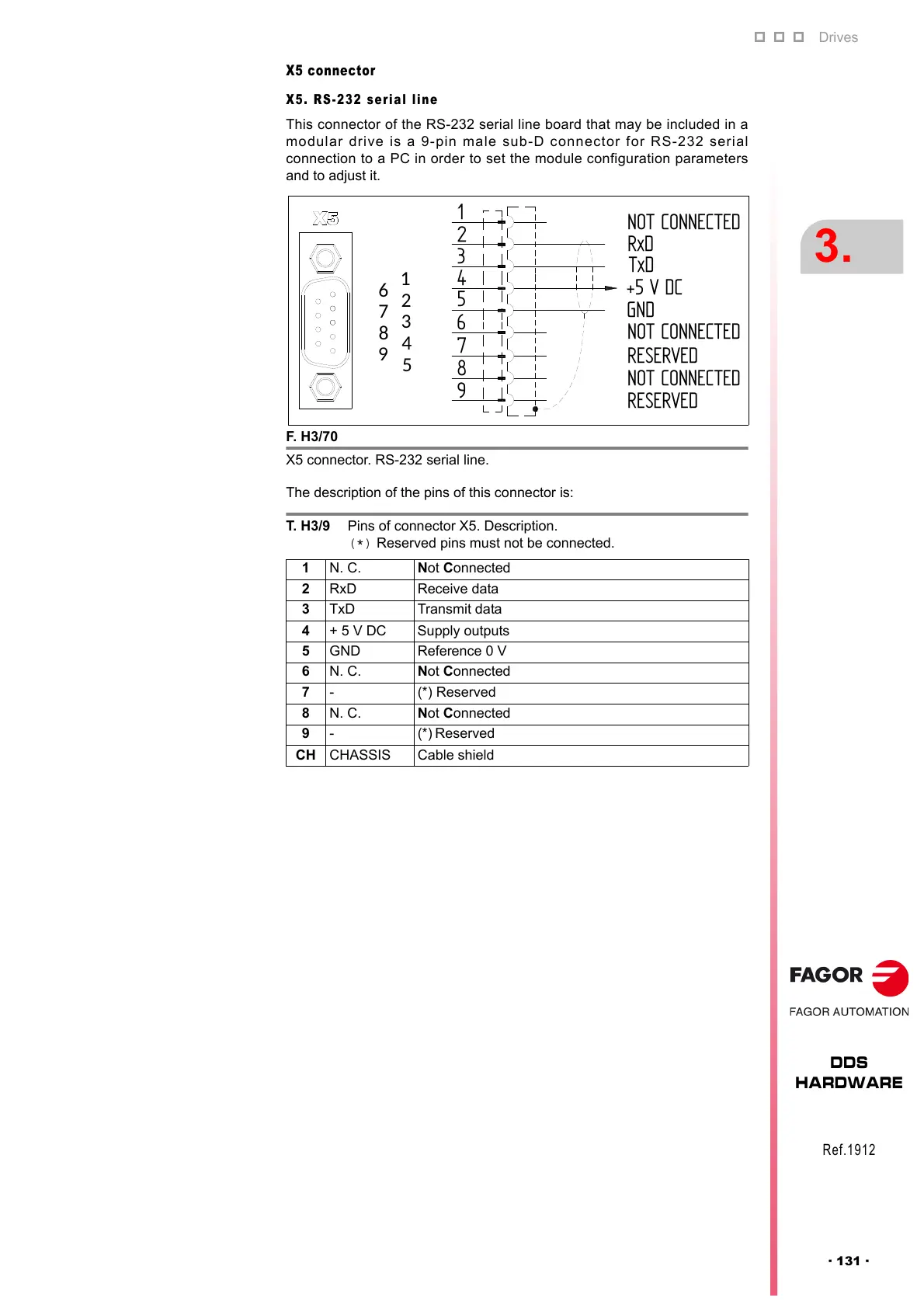

X5 connector. RS-232 serial line.
T. H3/9 Pins of connector X5. Description.
(*) Reserved pins must not be connected.
1 N. C. Not Connected
2 RxD Receive data
3 TxD Transmit data
4 + 5 V DC Supply outputs
5 GND Reference 0 V
6 N. C. Not Connected
7 - (*) Reserved
8 N. C. Not Connected
9 -(*) Reserved
CH CHASSIS Cable shield
