Fagor DDS AXD/SPD 2.50 User Manual

Drives
3.
Ref.1912
· 155 ·
DDS
HARDWARE
CMC 1.25
These drives have the following connectors:
F. H3/111

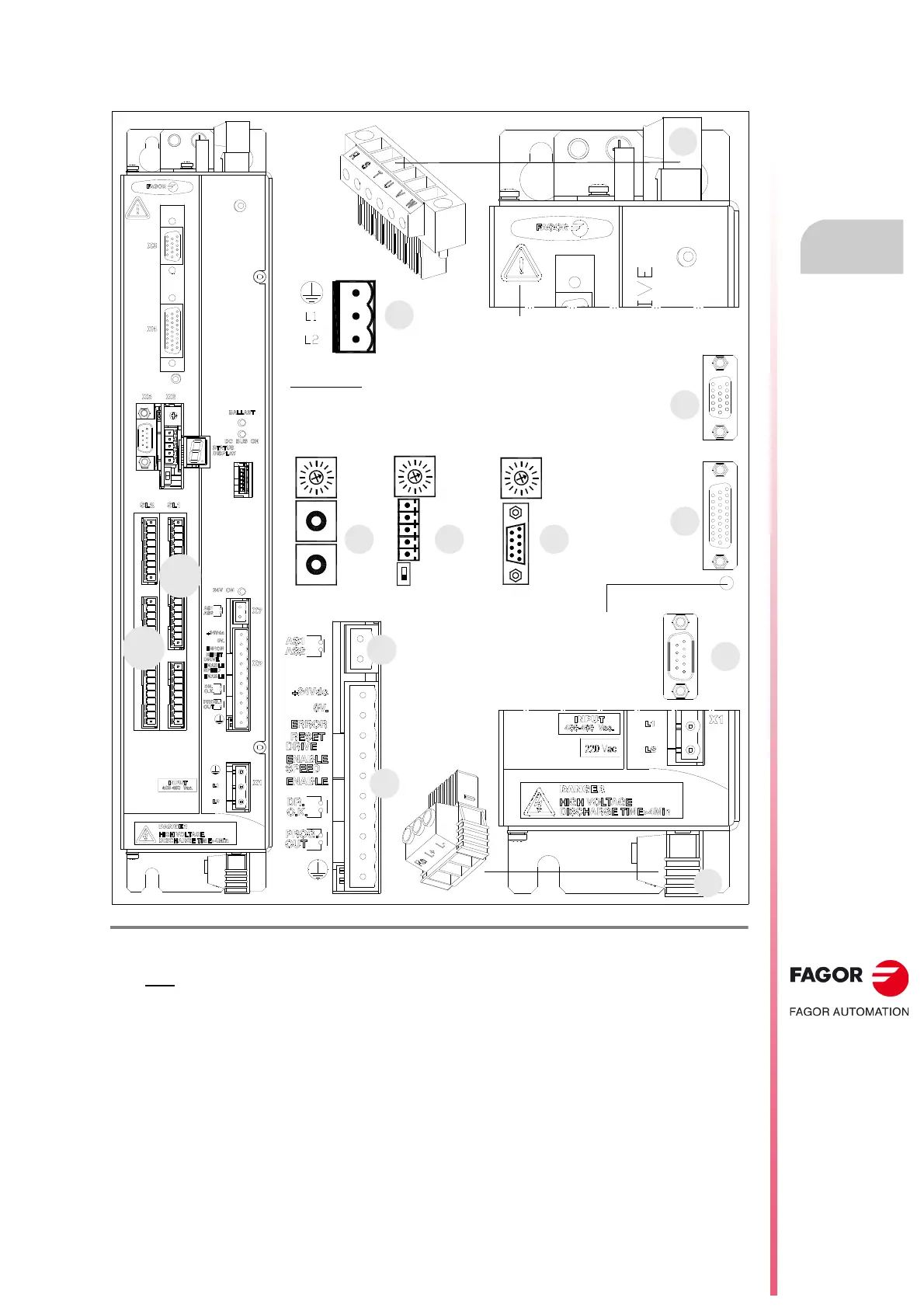

CMC 1.25 compact drives. Connectors.
1. Power connector for motor (U, V, W) and mains connection (R, S, T).
Note. RST has been the classic nomenclature for mains phases. L1L2L3 is its equivalent nowadays.
2. Connector for the external Ballast resistor (Re) and for accessing the power bus (L+, L-).
X1. Connector for the internal 24 V DC power supply (2-ph, with line voltage V AC).
X2. Connector for the basic control signals.
X3. Connector with two possible uses:
• as output of the encoder simulator.
• as input of the direct feedback for the position loop.
X4. Connector for motor feedback connection (encoder).
X5. Connector for RS-232 serial line connection.
X6.
Possible connectors that may be located in this position:
• SERCOS-II
a
or CAN
b
interface connector (always with X5).
• Connector for RS-232/422
c
serial line connection (never with X5).
X7. Connector for external acknowledgment of the status of the safety relay.
SL1. Slot for the cards A1, 16DI-8DO and 8DI-16DO.
SL2. Slot for the cards 16DI-8DO and 8DI-16DO.
positioning drive
RESET button
CANSERCOS RS422
(a) (b) (c)
NODE
SELECT
NODE
SELECT
0
1
0
4
8
4
0
8
0
4
8
1
2
3
4
5
1
9
NODE
SELECT
OUT
IN
Possibilities:
X5. Serial line RS-232 + (X6. SERCOS
a
or X6. CAN
b
)
or X6. Serial line RS-232/422
c
·without X5·
top view
1
X1
X6 X6 X6
2
SL1
SL2
WARNING. AC touch current greater than
3.5 mA. Install a ground wire with a section
of at least 10 mm² (Cu) or 16 mm² (Al).
X4
X5
X3
BOOT button.
Software update.
SERCOS|CAN transmission
speed selection.
X7
X2
bottom
view
or
