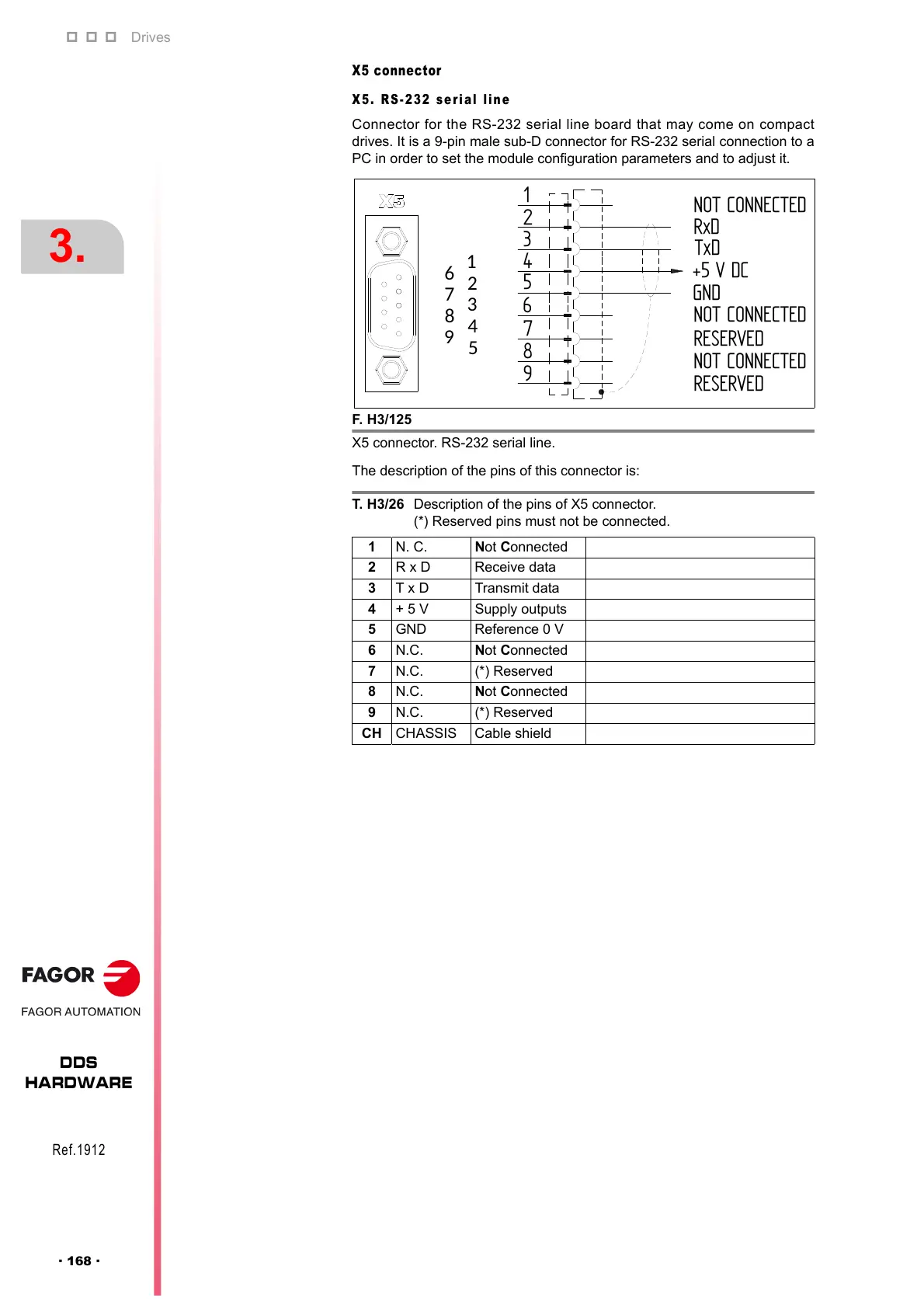

X5 connector
X5. RS-232 serial line
Connector for the RS-232 serial line board that may come on compact
drives. It is a 9-pin male sub-D connector for RS-232 serial connection to a
PC in order to set the module configuration parameters and to adjust it.
The description of the pins of this connector is:
F. H3/125
X5 connector. RS-232 serial line.
T. H3/26 Description of the pins of X5 connector.
(*) Reserved pins must not be connected.
1 N. C. Not Connected
2 R x D Receive data
3 T x D Transmit data
4 + 5 V Supply outputs
5 GND Reference 0 V
6 N.C. Not Connected
7 N.C. (*) Reserved
8 N.C. Not Connected
9 N.C. (*) Reserved
CH CHASSIS Cable shield
1
2
3
4
5
6
7
8
9
1
2
3
4
6
5
7
8
9
NOT CONNECTED
RxD
TxD
+5 V DC
GND
NOT CONNECTED
RESERVED
NOT CONNECTED
RESERVED
