Fagor DDS AXD/SPD 2.50 User Manual

Drives
3.
180
Ref.1912
DDS
HARDWARE
· 170 ·
The description of the pinout of this connector is:

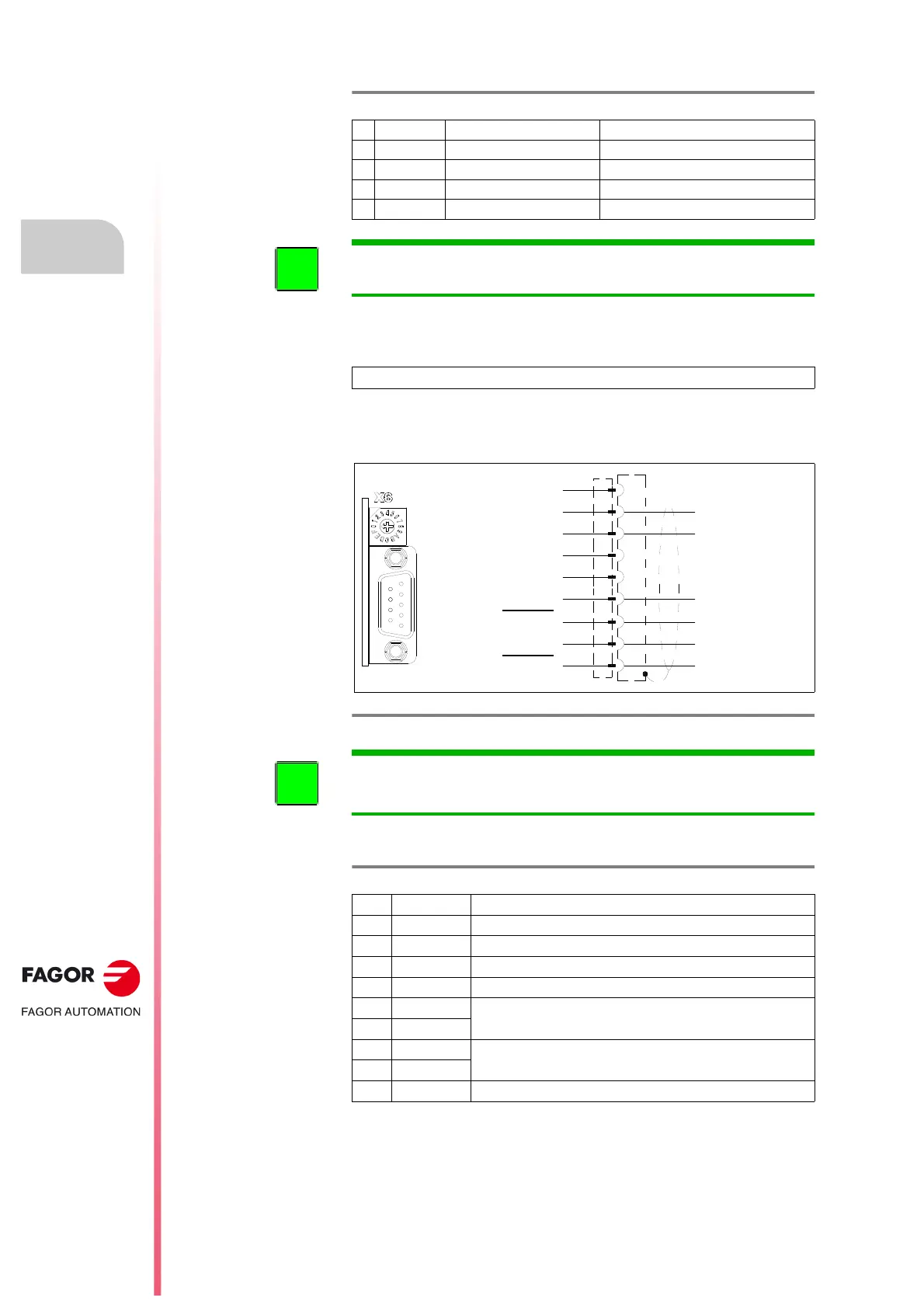

X6. RS-232/422 serial line connector
It is a 9-pin male sub-D connector for connecting an RS-232/422 serial line
with a device acting as master. This device is usually a PC or an ESA video
terminal (VT).
The description of the pins of this connector is:
T. H3/27 Pinout of connector X6 (CAN interface). Description.
1
GNDa Not Connected
2
CANL CAN L bus line
3
SHIELD Overall shield
4
CANH CAN H bus line
5
SHIELD Not Connected
INFORMATION. Note that on compact drives ACD, SCD and CMC, this
connector will always come with connector X5.
i
NOTE. Only CMC compact drives can have this connector.
F. H3/128
X6 connector. RS-232/422 serial line.
1
2
3
4
5
6
7
8
9
1
2
3
4
6
5
7
8
9
TxRS232 OUT
RxRS232 OUT
RxD232
TxD232
+5 V DC
TxD422
TxD422
RxD422
RxD422
GND ISO
RxRS422 +IN
RxRS422 -IN
TxRS422 +OUT
TxRS422 -OUT
NOT CONNECTED
INFORMATION. Note that on compact drives, only the CMC models can
have this RS-232/422 connector and only when they do not have the
connector X5.
i
T. H3/28 Pins of the RS-232/422 connector. Description.
1 N. C. Not Connected
2 RxD 232 RS-232 serial line. Data reception
3 TxD 232 RS-232 serial line. Data transmission
4 +5 V ISO Supply outputs
5 GND ISO Reference 0 V
6 TxD 422
RS-422 serial line.
Data transmission
7 #TxD 422
8 RxD 422
RS-422 serial line.
Data reception
9 #RxD 422
CH CHASSIS Cable shield
