Installation
8.
Ref.1912
· 275 ·
DDS
HARDWARE

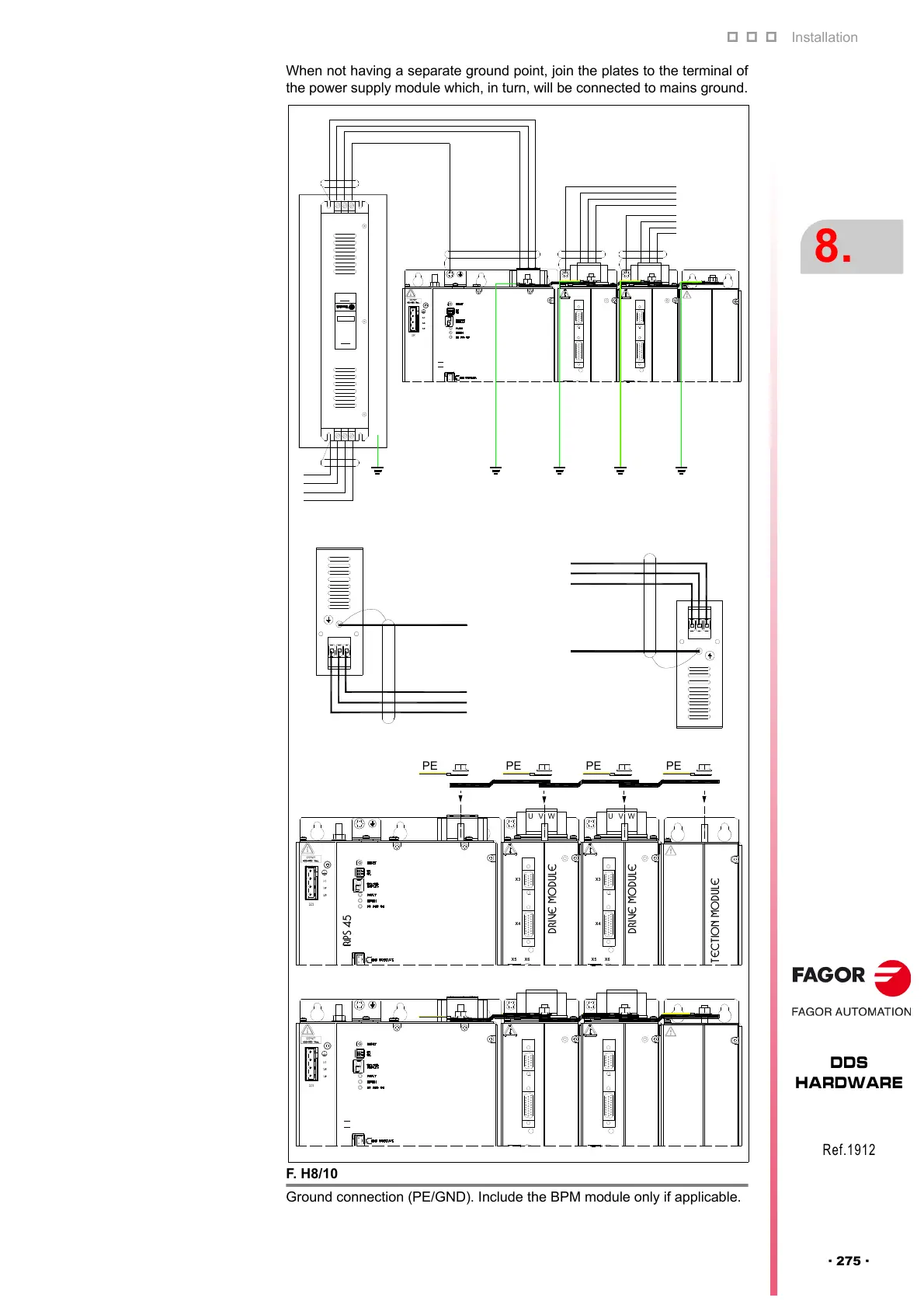

When not having a separate ground point, join the plates to the terminal of
the power supply module which, in turn, will be connected to mains ground.
F. H8/10
Ground connection (PE/GND). Include the BPM module only if applicable.
RPS 45
X4
X3
UVW
DRIVE MODULE
X5
X6
X4
X3
UVW
DRIVE MODULE
X5
X6
TECTION MODULE
PE
PE
PE PE
RPS 45
X4
X3
UVW
DRIVE MODULE
X5
X6
X4
X3
UVW
DRIVE MODULE
X5
X6
TECTION MODULE
PE
PE
PE
PE
RPS 45
X4
X3
UVW
DRIVE MODULE
X5
X6
X4
X3
UVW
DRIVE MODULE
X5
X6
MPC- 4x...
L3' L2' L1'
LOAD
MAIN FILTER 42A
Type:
3 Phase RFI Filter
MAINS
L3 L2 L1
TECTION MODULE
MPC- 4x...
MPC- 4x...
GND
MPC- 4x...
GND
PE
PE
see
detail B
PE/GND PE/GND PE/GND PE/GND
see
detail A
MAINS FILTER
BOTTOM VIEW
MAINS FILTER
TOP VIEW
GND
GND
Detail A
Detail B
