Installation
8.
310
· 290 ·
Ref.1912
DDS
HARDWARE
Connection of the APS-24 power supply
Take two mains phases and ground to the input connector X1 of the
auxiliary power supply APS-24. See figure:
Connection of the auxiliary power supply of the PS-25B4 and
the XPS
Take the two mains phases and ground to the input connector X3 of the
auxiliary power supply integrated into the main power supply. See figure:
Connection of the auxiliary power supply of the RPS
Take the three mains phases and ground to the input connector X1 of the
main power supply. See figure:

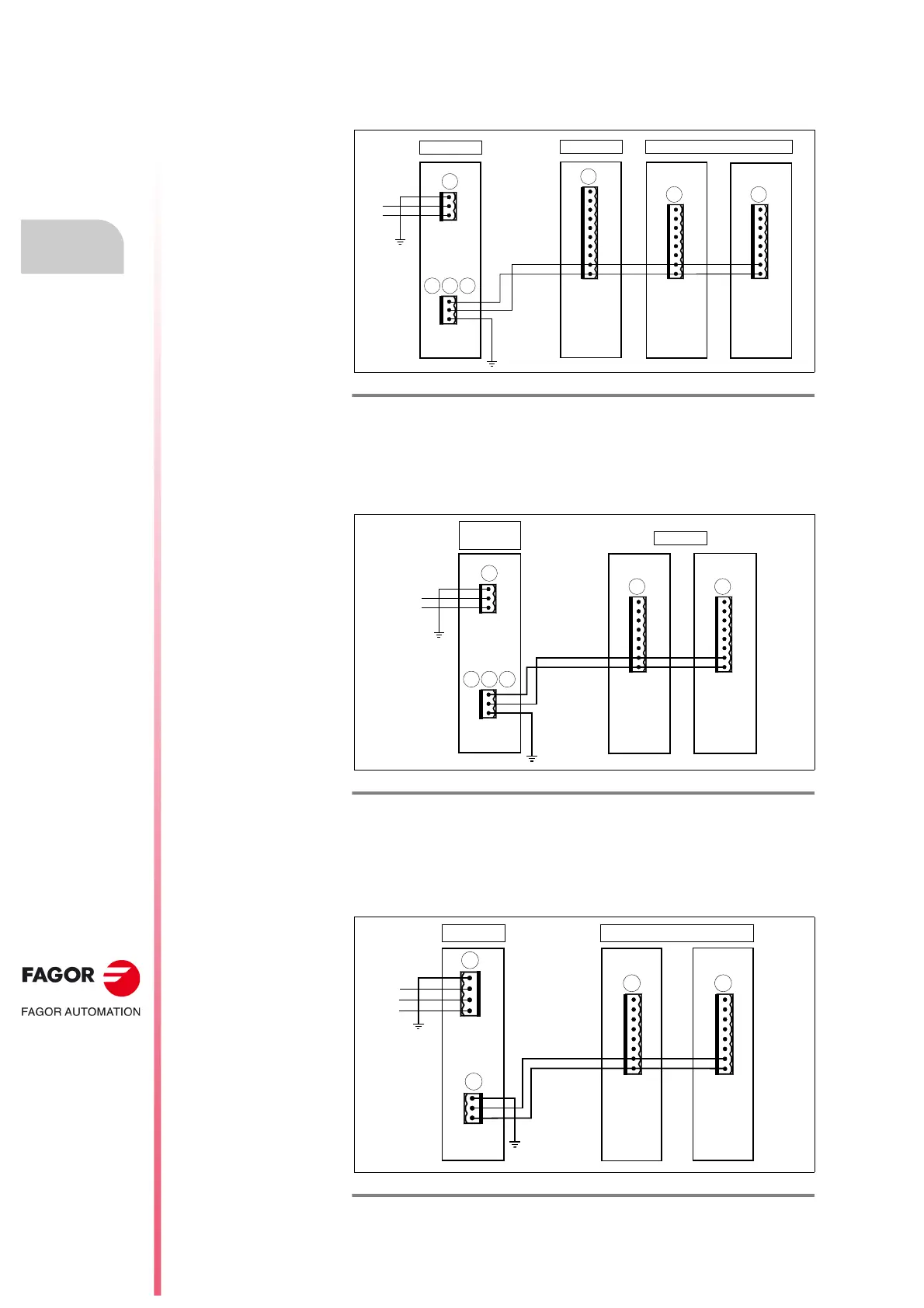

F. H8/22
Connection of the APS-24 with the PS-65A and the modular drives.
F. H8/23
Connection of the auxiliary power supply integrated into the PS-25B4 and
XPS with the modular drives.
F. H8/24
Connection of the auxiliary power supply integrated into the RPS with the
modular drives.
