Dimensions
DIMENSIONS
Compact drives
11.
Ref.1912
· 375 ·
DDS
HARDWARE
11.3 Compact drives
ACD/SCD/CMC 1.08, ACD/SCD/CMC 1.15
F. H11/16

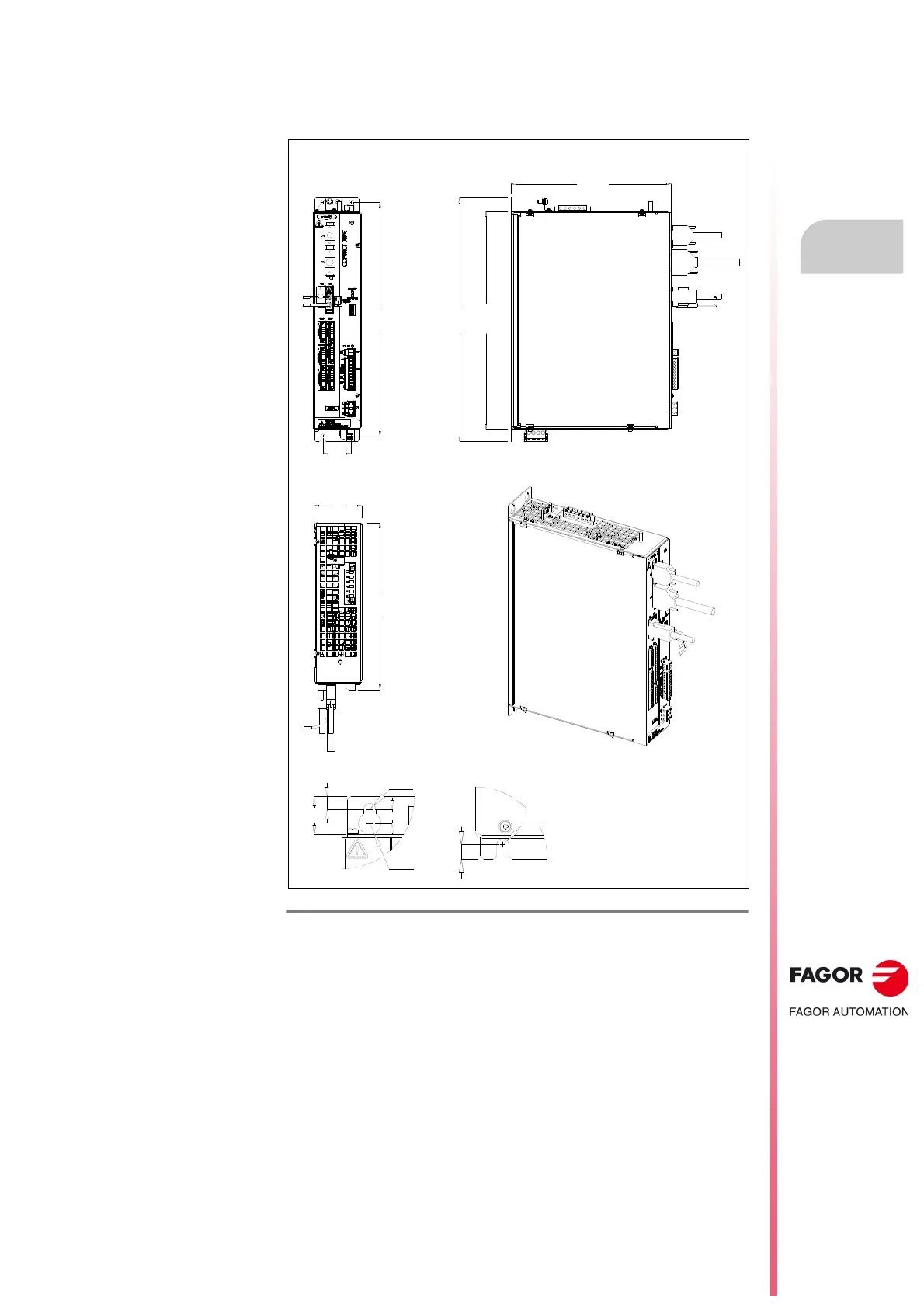

Compact drives, ACD/SCD/CMC 1.08 | 1.15. Dimensions.
Dimensions in mm. 1 in = 25.4 mm
R3.5
8.5
22
R3.5
R6.5
8
7.5
255
389
347
45
373
77
266
