DDS
HARDWARE
11.8 RPS CHOKES
F. H11/23

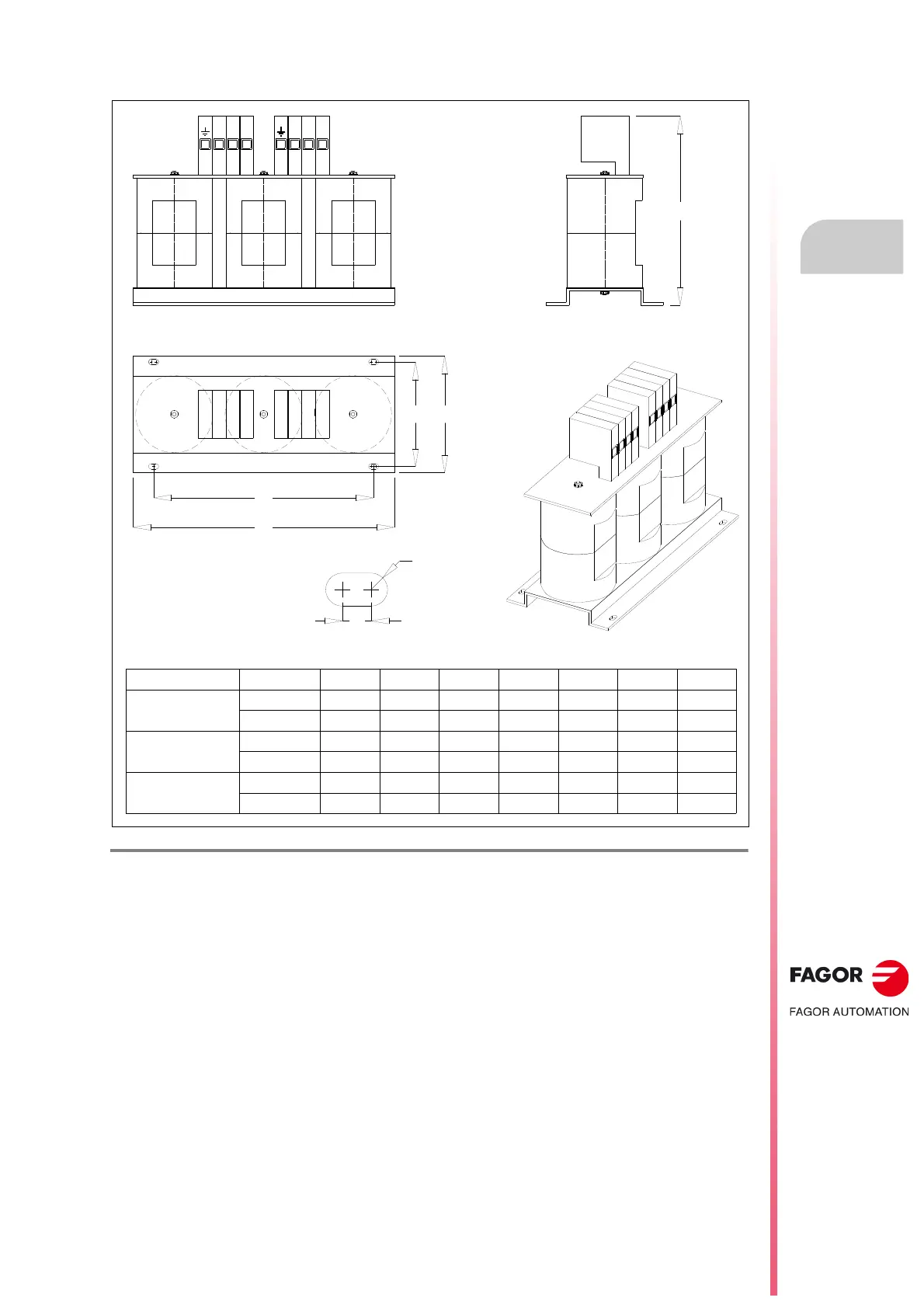

CHOKES. RPS-75-3 CHOKE, RPS-45 CHOKE and RPS-20 CHOKE. Dimensions.
T1
T2 T3
U1 V1 W1
B
C
D
G
F
ØE
A
CHOKE Units A B C D E F G
RPS-75-3
mm 380 235 152 170 9 18 271
in 14.96 9.25 5.98 6.69 0.35 0.70 10.66
RPS-45
mm 330 175 136 150 8 15 228
in 12.99 6.88 5.35 5.90 0.31 0.59 8.97
RPS-20
mm 330 175 136 150 8 15 162
in 12.99 6.88 5.35 5.90 0.31 0.59 6.37
