5.2.2. Heat pump installation.
➢ The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation
must be solid; the bracket must be strong enough and anti-rust treated;
➢ The heat pump needs a water pump (Supplied by the user). The recommended pump specification-flux:
refer to Technical Parameter, Max. lift ≥10m

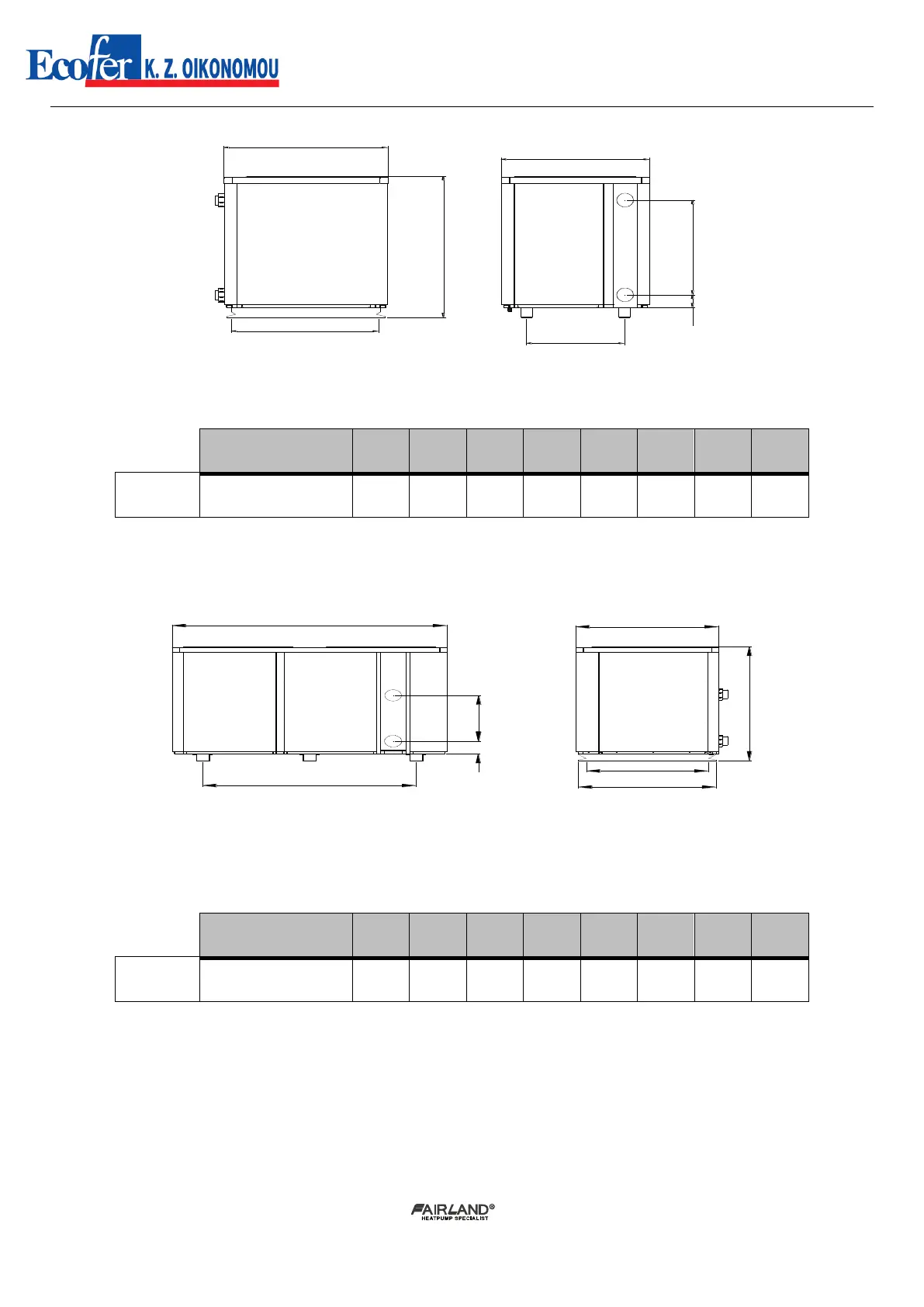

UNIT=MM
A
B
C
D
E
F
G
H
Model
IPH150T
1000
660
1110
1070
1000
780
105
1260
UNIT=MM
A
B
C
D
E
F
G
H
Model
IPH300T
1000
1630
1090
1050
2100
515
140
1280
