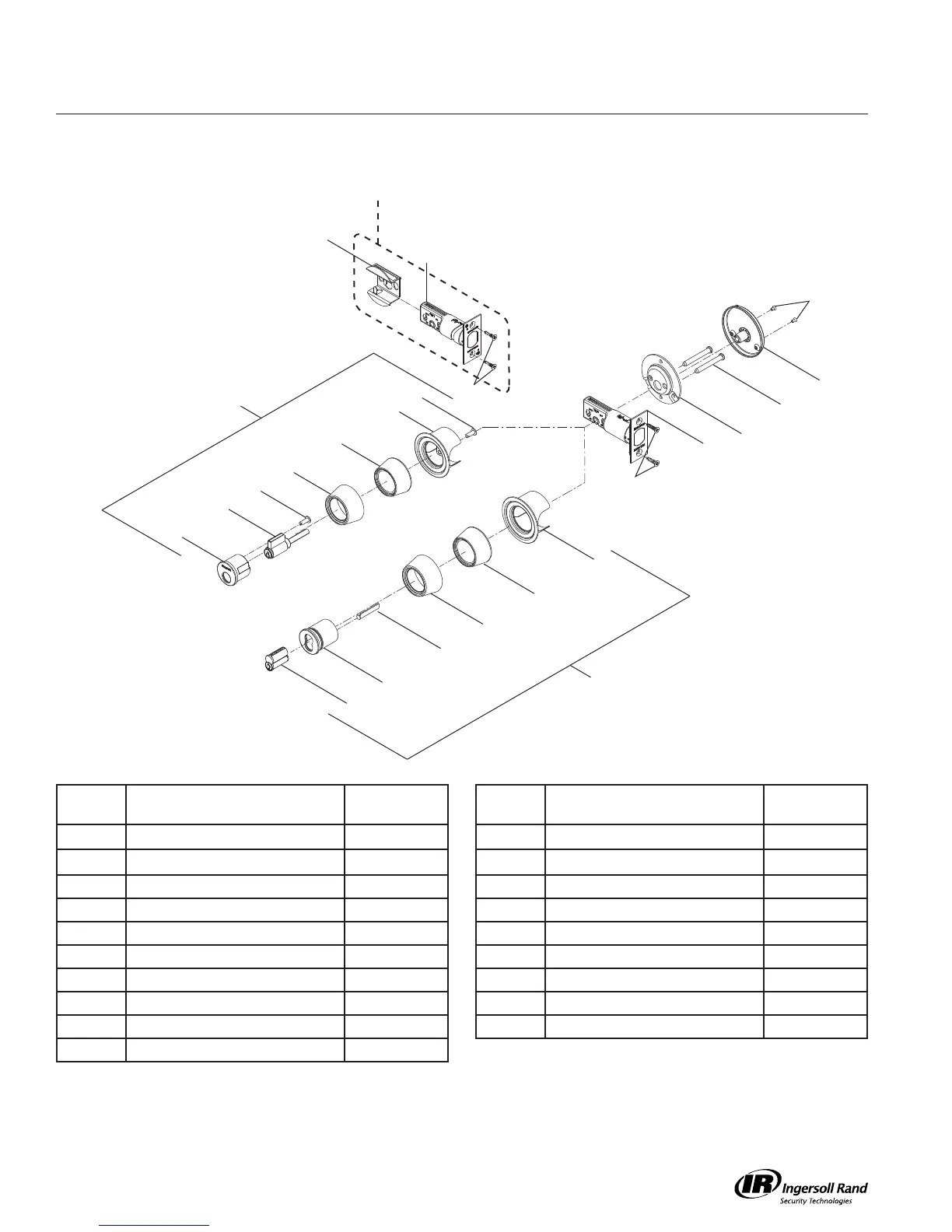

D100/200 Series Service Manual
Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy (G only) SFIC 29 Insert Ring B520-541
2 Outside Housing Assy (P only) Q500-074 30 Cylinder Retaining Screw (2) B300-108
7 Mounting Plate B600-018 31 Adapter Shield B520-650
10 Fire-Rated Bolt (F only) * 32 Anti-Pry Shield B520-649
11 Regular Bolt Q330-256 33 Driver Bar B202-957
15 SFIC Cylinder C607 43 Fire Cup (F only) *
17 Outside Cylinder Housing Assy B610-204 46 Screw, Mounting (2) B600-100
18 Cylinder Housing Assy Q500-009 52 Screw, Deadbolt (2) C603-897
19 5 Pin Cylinder Assy Q500-064 53 Screw, Trim (2) B600-066
25 Thumbturn Assy B302-041
D141G (SFIC)
D141P
Single Cylinder x Thumbturn
* Not for sale as individual parts.
