Falcon D111G User Manual

17
33
28
29
31
2
7
46
1
18
21
28
29
30
32
5
30
52
13
52
12
43
For F (UL)
15
14

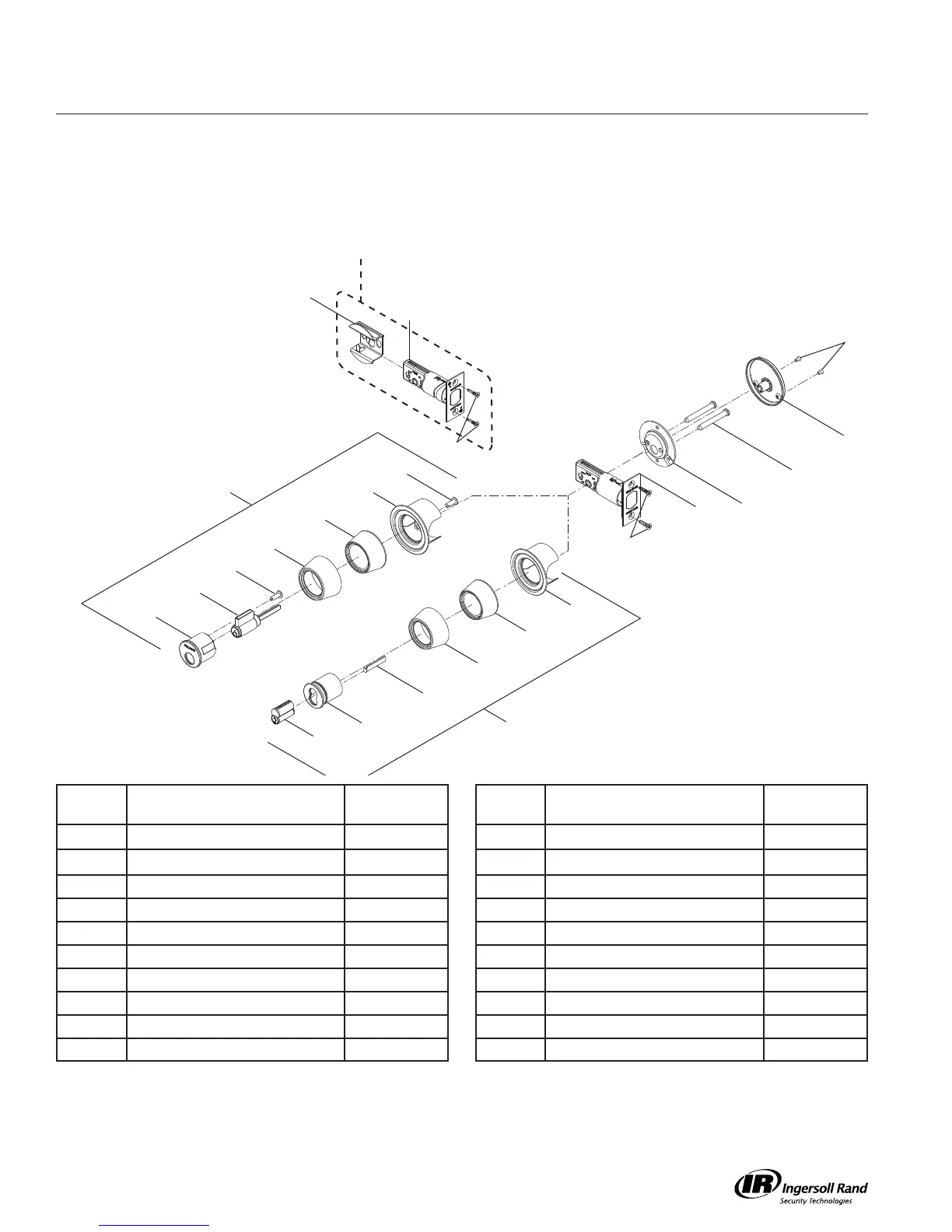

D100/200 Series Service Manual
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy (G only) SFIC 28 Outside Rose 36-086
5 Outside Housing Assy (P only) Q500-077 29 Insert Ring B520-541
7 Mounting Plate B600-018 30 Cylinder Retaining Screw (2) B300-108
12 Fire-Rated Bolt (F only) * 31 Adapter Shield B520-650
13 Regular Bolt Q330-253 32 Anti-Pry Shield B520-649
15 SFIC Cylinder C607 33 Driver Bar B202-957
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
18 Cylinder Housing Assy Q500-009 46 Screw, Mounting (2) B600-100
21 5 Pin Cylinder Assy Q500-067 52 Screw, Deadbolt (2) C603-897
25 Thumbturn Assy B302-041 53 Screw, Trim (2) B600-066
D241G (SFIC)
D241P
Single Cylinder x Thumbturn
Assemblies
* Not for sale as individual parts.
