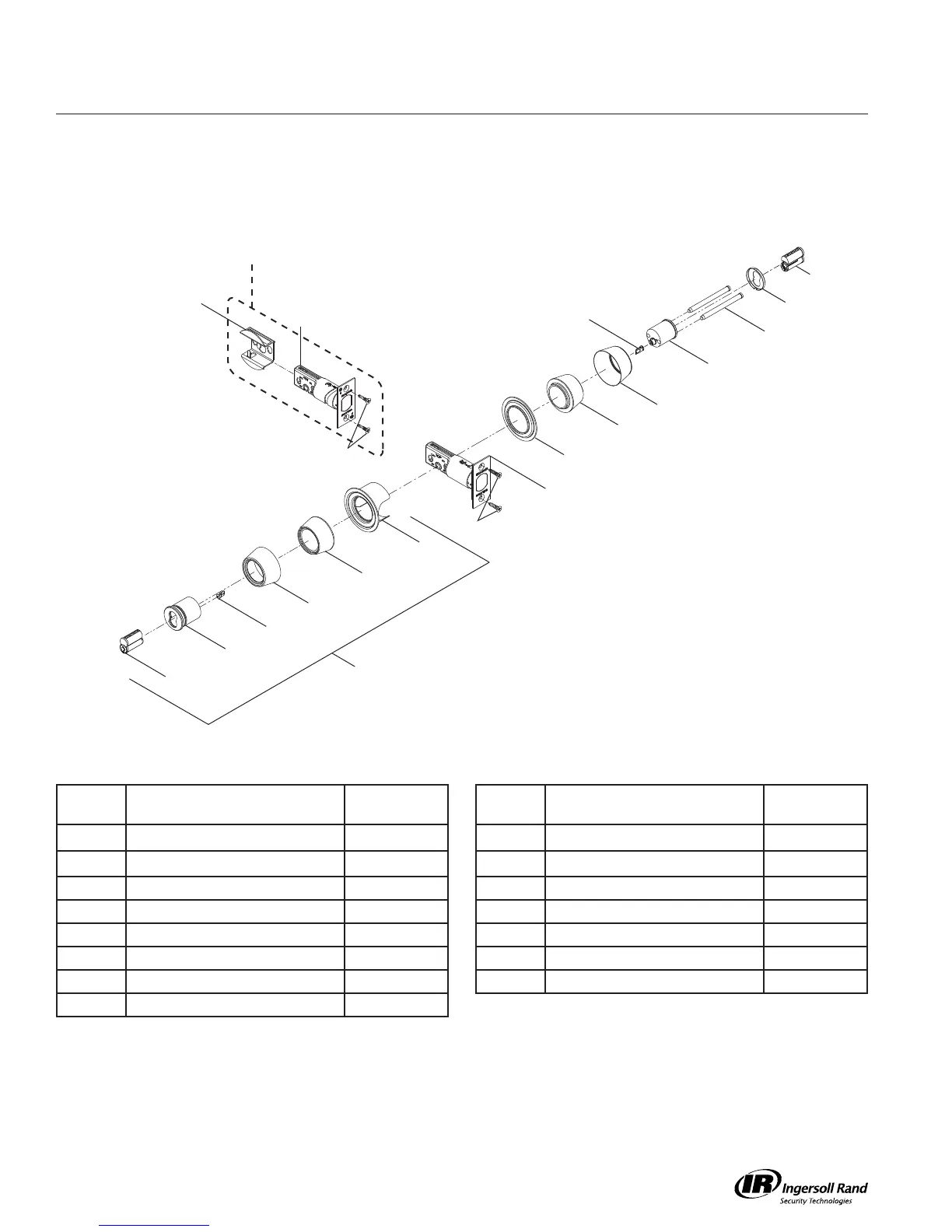

D100/200 Series Service Manual
Assemblies
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy (G only) SFIC 31 Adapter Shield B520-650
10 Fire-Rated Bolt (F only) * 35 Driver Bar (2) B202-580
11 Regular Bolt Q330-256 39 Snap-On Face Plate, Inside B610-014
15 SFIC Cylinder (2) C607 41 Inside Cylinder Housing B610-281
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
27 Ring, 2-1/8” Bore 38-031 49 Screw, Mounting (2) B600-053
28 Outside Rose (2) 36-086 52 Screw, Deadbolt (2) C603-897
29 Insert Ring (2) B520-541
D131G (SFIC)
Double Cylinder
* Not for sale as individual parts.
