Falcon D111G User Manual

25
7
44
37
54
53
52
13
52
12
43
For F (UL)
16

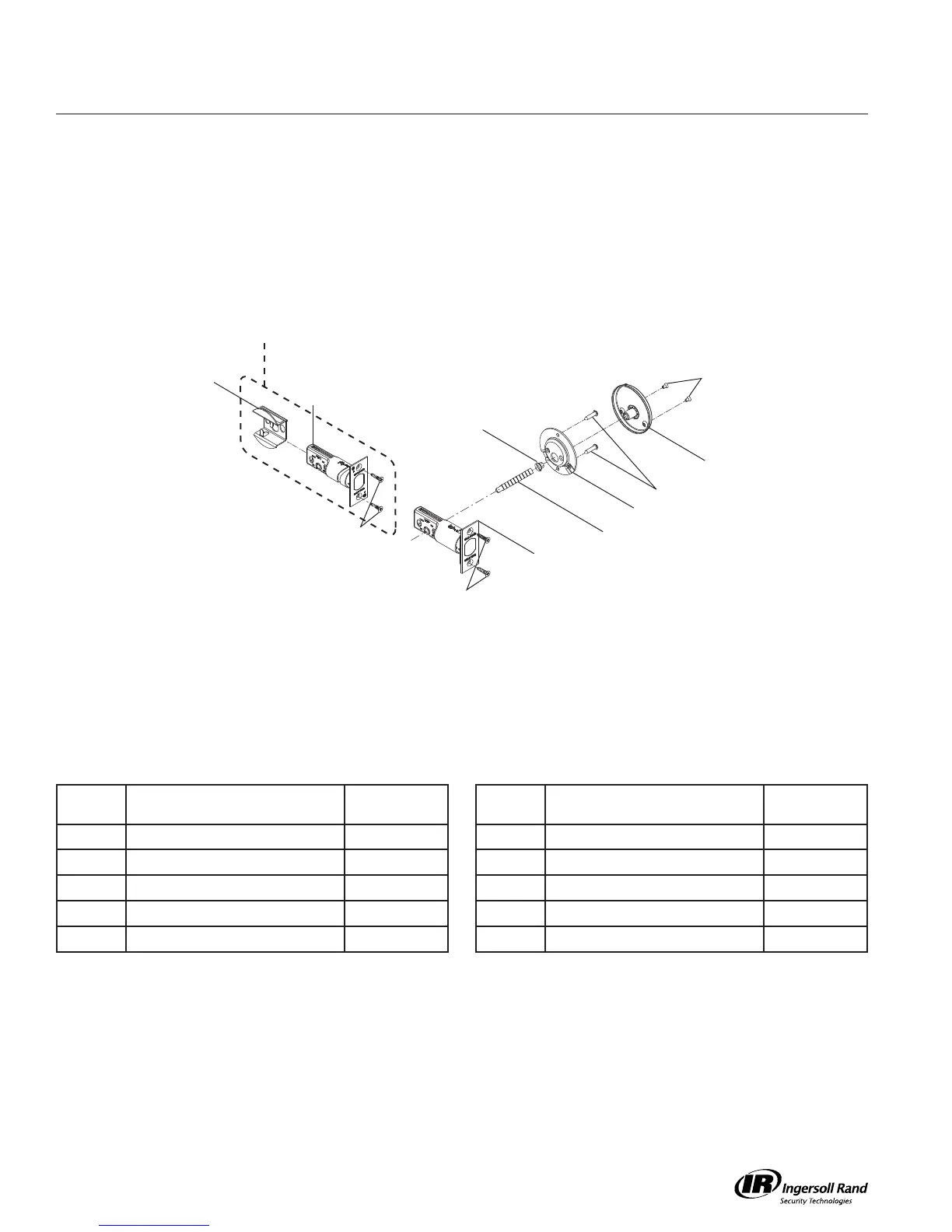

D100/200 Series Service Manual
Call Out
Number Description Part Number
Call Out
Number Description Part Number
7 Mounting Plate B600-018 43 Fire Cup (F only) *
12 Fire-Rated Bolt * 44 Retainer, Driver Bar B520-679
13 Regular Bolt Q330-253 52 Screw, Deadbolt (2) C603-897
25 Thumbturn Assy B302-041 53 Screw, Trim (2) B600-066
37 Driver Bar B600-041 54 Screw, Wood (2) F506-359
D261
Thumbturn, Inside Only
Assemblies
* Not for sale as individual parts.
