Falcon T Series Service Manual

40
T-Series Service Manual

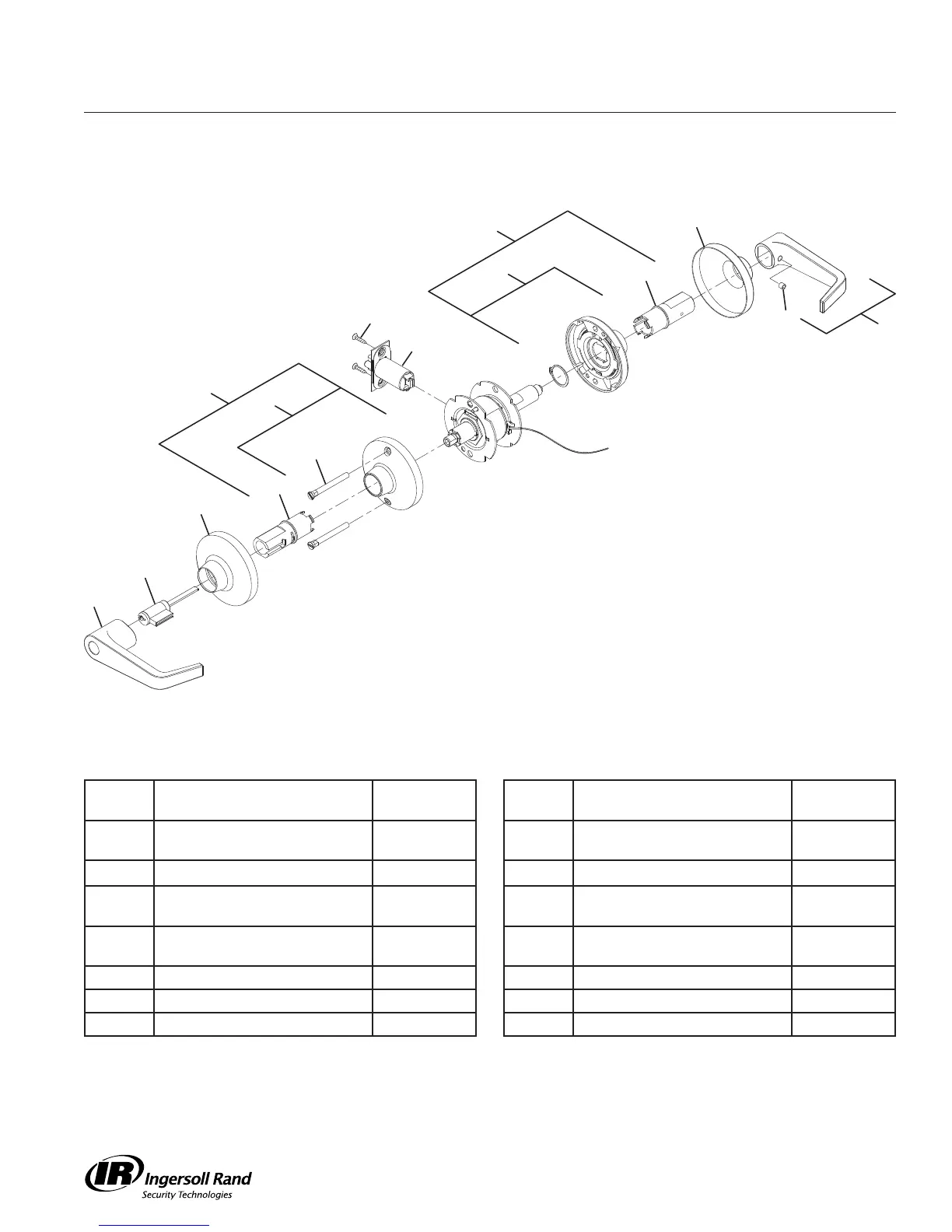

Trim Assemblies
T881
Storeroom Lock (Electrified – Fail Secure)
KK
H
N
M
E
HH
B
AA
H
K
CC
BB
MM
JJ
NN
Note: Spring Cage components require lubrication. See page 47 for specifications.
Call Out
Number Description Part Number
Call Out
Number Description Part Number
B Open Lever, Outside See Page 46,47 BB Spring Cage and Spindle,
Outside, 6-Pin Cylinder
A30910-060-00
E Lever Set Screw 030831-004-30 CC Spindle, Outside, 6-Pin Cylinder A30905-060-00
H Rose 030706-002* HH T851/T881 Lever and Set Screw
Assembly
A31544-00X
K Mounting Post (2) 030715-000-30 JJ Spring Cage and Spindle, Inside,
T851/T881
A31638-000-00
M Deadlatch A98535-00D* KK Spindle, Inside, T851/T881 031519-000-30
N
#8-32 x 6M” Combo Screw
024416-012* MM Locking Spring Cage Q330-270
AA 6-Pin Cylinder A23161-05* NN Non-Locking Spring Cage Q300-271
*= Finish or Specify Finish on All
