Falcon T Series Service Manual

T-Series Service Manual
41

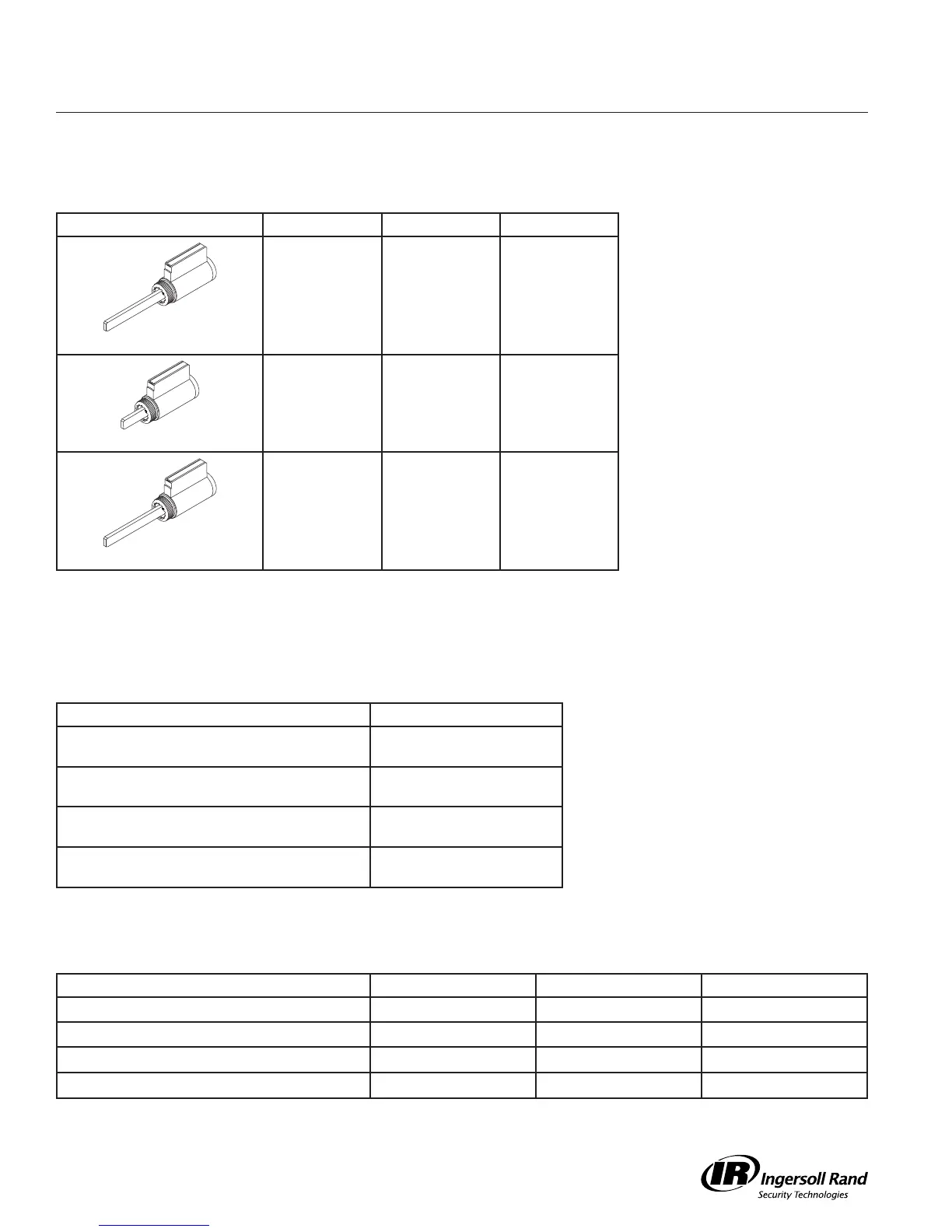

Cylinders
Standard Cylinders
Falcon Complete Standard Cylinders
Function 5-Pin Cylinder 6-Pin Cylinder 7-Pin Cylinder
All Except T381IS, T571
A23151-05 A23161-05 A23171-05
T381IS
A23151-06 A23161-06 A23171-06
T571
A23151-07 A23161-07 A23171-07
Notes: 1) Finishes 606 and 626 only
2) Specify Keyway
3) Cylinders are funished G keyway, keyed differently unless otherwise specified.
4) Restricted sections require additional fee.
Standard Cylinder Options
Description Specify
5 Pinned Cylinder
P suffix
Example: T581PD DAN
6 Pinned Cylinder
P6 suffix
Example: T581PD6 DAN
7 Pinned Cylinder
P7 suffic
Example: T581PD7 DAN
Competitor Keyway Cylinders (6 Pin Only)*
P6 suffix
Example: T581PD6 SCH C
*Cylinders are furnished 0-bitted unless otherwise specified. No master keying, except Schlage C.
Standard Cylinder Tailpieces
Cylinders Std. Functions T381 Inside T571
Falcon 6-pin* (10 pack) A30730-001-00 A30730-003-00 A30730-002-00
Falcon 7-pin (10 pack) A30730-002-00 A30730-004-00 A30730-006-00
Sargent 6 & 10 Line 030997-001-30 030997-003-30 030997-005-30
Yale 1801, 5801 030917-001-30 030917-003-30 030917-005-30
*Assa 65611 and 65661, Corbin Russwin 2000-034 and Schlage (including Primus) all use Falcon 6-pin tailpiece.

Falcon T Series Specifications

General

Grade	ANSI/BHMA Grade 2
Keypad	Yes
Backup Key	Yes
Type	Electronic Lock
Backset	Adjustable 2-3/8" or 2-3/4"
Material	Metal
Finishes	Satin Nickel
Power Source	Battery
Battery Life	Approximately 1 year
Auto-Lock	Yes
Installation	Easy installation with a screwdriver
