Falcon T Series Service Manual

T-Series Service Manual
51
Preparation and Installation

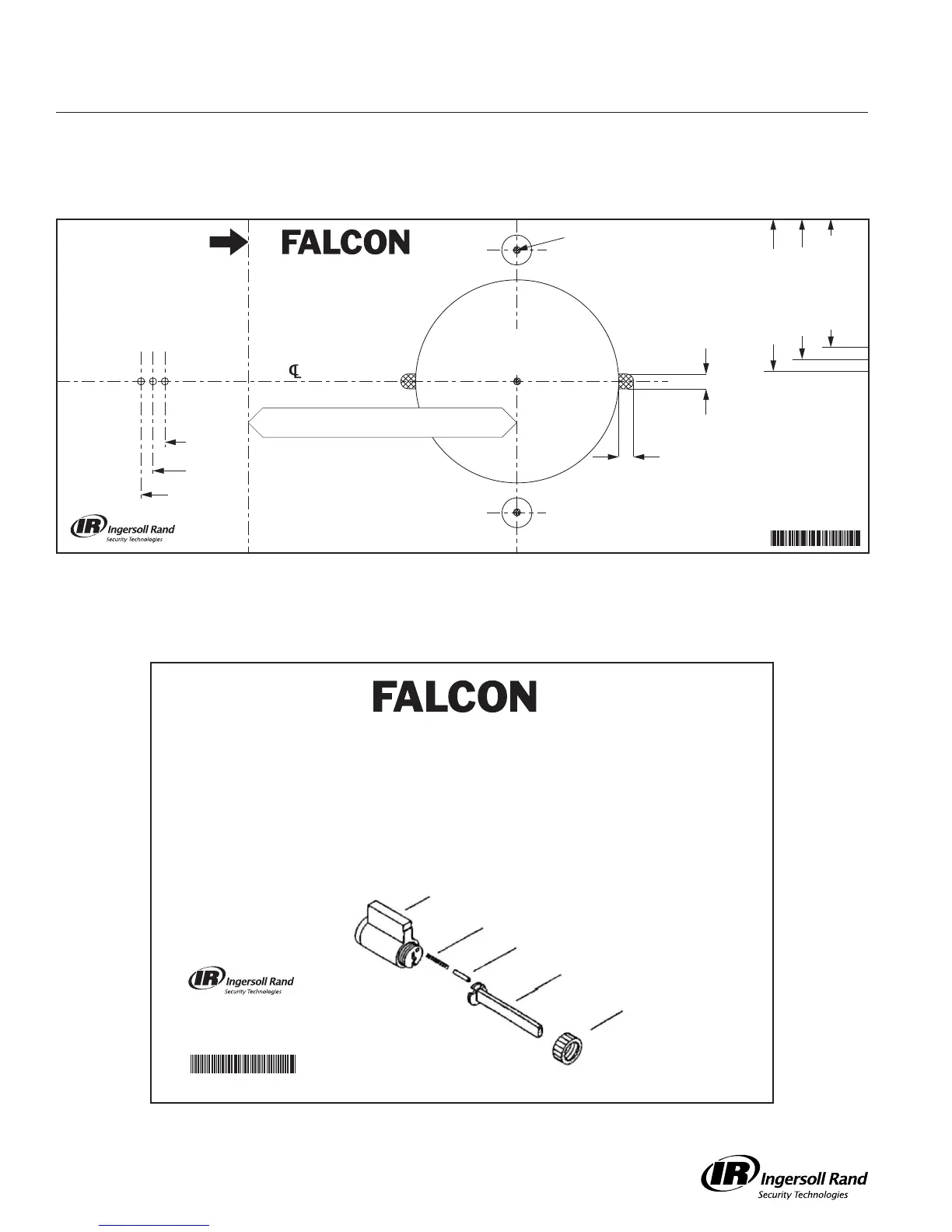

Installation Template
For reference only. DO NOT place on door for drilling.
FOLD HERE &
PLACE ON HIGH
EDGE OF DOOR BEVEL
T–Series
Lever Lock
Template
Mark Centerline of Latch for
Correct Door Thickness.
Drill 1"(25mm) diameter hole.
High Edge
Latch
Mark Center for
7RF"(8mm) Holes
Use of Drill Fixture
030736-000-50
recommended to
ensure proper
alignment of
thru-bolt holes.
Mark Center for
267"(54mm) Hole
IMPORTANT:
Check lock for proper backset
BEFORE drilling
17N"(45mm)
2"(51mm)
267N"(57mm)
7;P"(4mm)
7;P"(4mm) x 67"(3mm) deep
267N"(57mm) Door 2"(51mm) Door
Door Centering Adjustment
27N"(70mm) BACKSET
17N"(44mm) Door
(800) 266-4456
©
2008 Schlage Lock Company
Printed in Country
030793-000-70 Rev. 04/08-b
Tailpiece Installation
800-266-4456
©
2008 Schlage Lock Company
Printed in Country
030102-000-70 Rev. 04/08-b
T-Series Tailpiece Installation
For proper function of the lock, the right tailpiece must be used and installed correctly.
All T-locks with standard cylinders must have the tailpiece installed
VERTICALLY on the cylinder as shown.
NOTE: The cap must be properly adjusted.
If too loose, excessive plug end play will prevent the key from being withdrawn.
If too tight, the plug will drag and be difficult to rotate with the key.
Cap
Tailpiece
Pin
Spring
Cylinder

Falcon T Series Specifications

General

Grade	ANSI/BHMA Grade 2
Keypad	Yes
Backup Key	Yes
Type	Electronic Lock
Backset	Adjustable 2-3/8" or 2-3/4"
Material	Metal
Finishes	Satin Nickel
Power Source	Battery
Battery Life	Approximately 1 year
Auto-Lock	Yes
Installation	Easy installation with a screwdriver
