Falcon T Series Service Manual

T-Series Service Manual
27

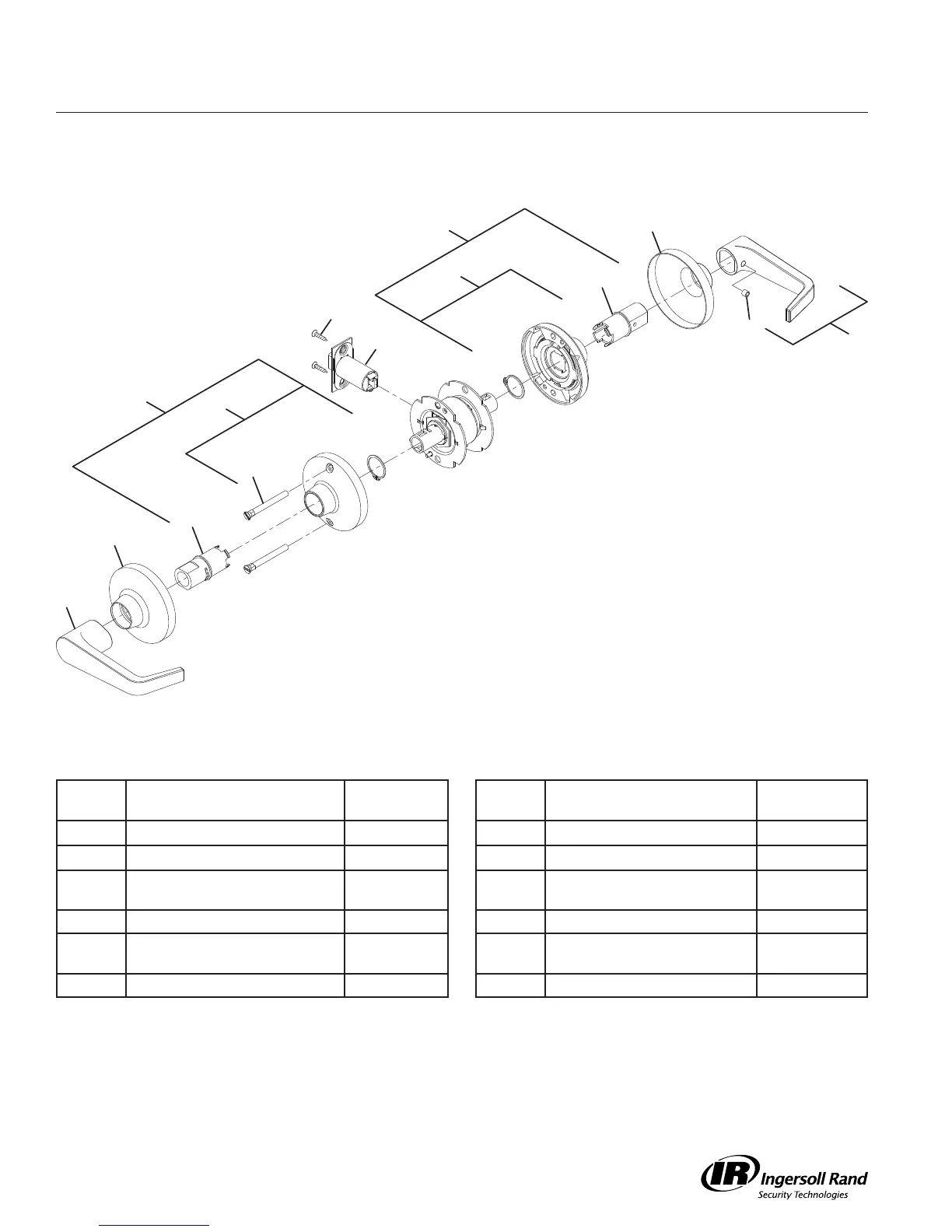

Trim Assemblies
T101
Passage Latchset
A
H
H
E
O
J
K
I
N
L
F
NN
P
NN
Note: Spring Cage components require lubrication. See page 47 for specifications.
Call Out
Number Description Part Number
Call Out
Number Description Part Number
A Closed Lever, Outside See Page 46 K Mounting Post (2) 030715-000-30
E Lever Set Screw 030831-004-30 L Spring Latch A98535-000*
F Closed Lever and Set Screw
Assembly
A30753-00X* N
#8-32 x 6M” Combo Screw
024416-012*
H Rose 030706-002* O Spindle, Inside, Passage/Button 030703-000-30
I Spring Cage and Spindle,
Outside, Passage
A30749-000-00 P Spring Cage and Spindle,
Inside, Passage/Button
A30750-000-00
J Spindle, Outside, Passage A30906-000-00 NN Non-Locking Spring Cage Q330-271
*= Finish or Specify Finish on All

Falcon T Series Specifications

General

Grade	ANSI/BHMA Grade 2
Keypad	Yes
Backup Key	Yes
Type	Electronic Lock
Backset	Adjustable 2-3/8" or 2-3/4"
Material	Metal
Finishes	Satin Nickel
Power Source	Battery
Battery Life	Approximately 1 year
Auto-Lock	Yes
Installation	Easy installation with a screwdriver
