Falcon T Series Service Manual

28
T-Series Service Manual

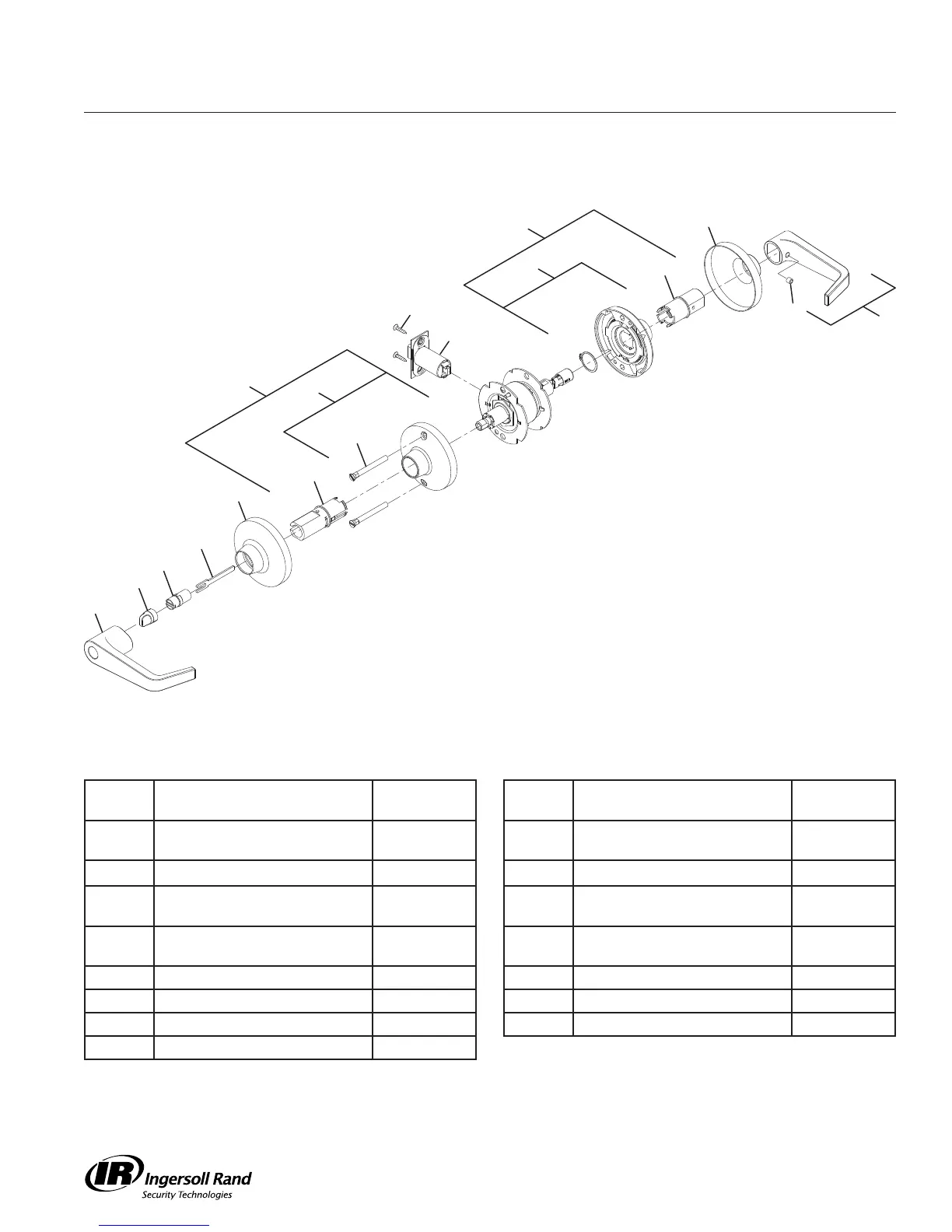

Trim Assemblies
T291
Privacy Hospital Lock
H
V
K
B
LL
S
T
N
L
H
E
O
G
U
NN
P
NN
Note: Spring Cage components require lubrication. See page 47 for specifications.
Call Out
Number Description Part Number
Call Out
Number Description Part Number
B Open Lever, Outside See Page 46 P Spring Cage and Spindle, Inside,
Passage/Button
A30750-000-00
E Lever Set Screw 030831-004-30 S Outer Button Mount 030729-000-70
G Open Lever and Set Screw
Assembly
A30753-01X* T Tailpiece, 6-pin IC 030739-000-30
H Rose 030706-002* U Spring Cage and Spindle,
Outside, Button
A30796-000-00
K Mounting Post (2) 030715-000-30 V Spindle, Outside, Button A30905-000-00
L Spring Latch A98535-000* LL Button, T291, Outside Q033-044*
N
#8-32 x 6M” Combo Screw
024416-012* NN Non-Locking Spring Cage Q330-271
O Spindle, Inside, Passage/Button 030703-000-30
*= Finish or Specify Finish on All
