Falcon T Series Service Manual

T-Series Service Manual
29

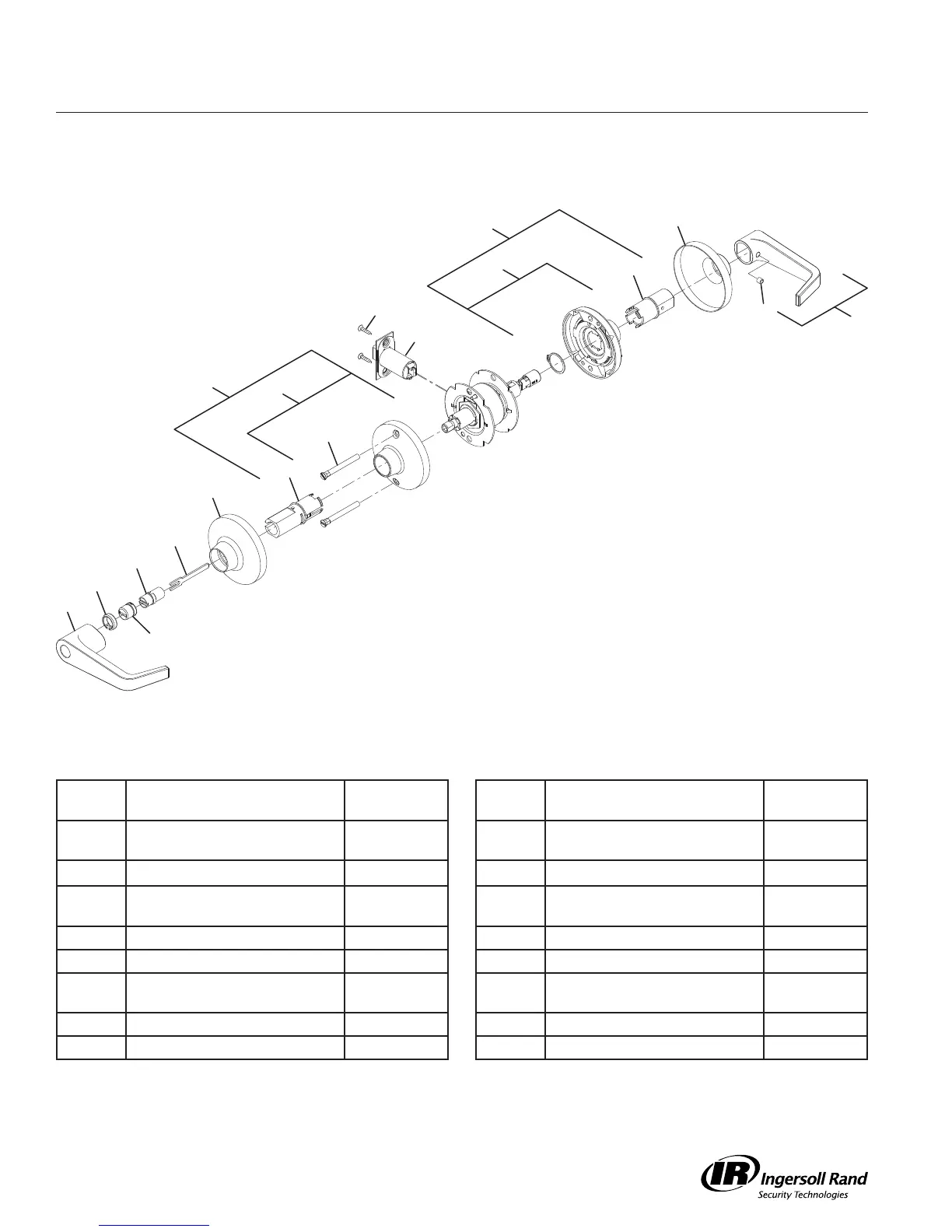

Trim Assemblies
T301
Privacy Lock
H
V
K
B
Q
S
T
R
N
L
H
E
O
G
U
NN
P
NN
Note: Spring Cage components require lubrication. See page 47 for specifications.
Call Out
Number Description Part Number
Call Out
Number Description Part Number
B Open Lever, Outside See Page 46 P Spring Cage and Spindle, Inside,
Passage/Button
A30750-000-00
E Lever Set Screw 030831-004-30 Q Button Spacer 030787-000-70
G Open Lever and Set Screw
Assembly
A30753-01X* R Emergency Release Cap 030654-000*
H Rose 030706-002* S Outer Button Mount 030729-000-70
K Mounting Post (2) 030715-000-30 T Tailpiece, 6-pin IC 030739-000-30
L Spring Latch A98535-000* U Spring Cage and Spindle,
Outside, Button
A30796-000-00
N
#8-32 x 6M” Combo Screw
024416-012* V Spindle, Outside, Button A30905-000-00
O Spindle, Inside, Passage/Button 030703-000-30 NN Non-Locking Spring Cage Q330-271
*= Finish or Specify Finish on All

Falcon T Series Specifications

General

Grade	ANSI/BHMA Grade 2
Keypad	Yes
Backup Key	Yes
Type	Electronic Lock
Backset	Adjustable 2-3/8" or 2-3/4"
Material	Metal
Finishes	Satin Nickel
Power Source	Battery
Battery Life	Approximately 1 year
Auto-Lock	Yes
Installation	Easy installation with a screwdriver
