ENGLISH

other device that ensures disconnection from the electrical mains, with an

opening gap of the contacts that enables total disconnection in overvoltage

category III conditions.

Said disconnection devices must be provided in the mains power supply in

compliance with installation regulations.

The yellow/green earth cable must not be cut o by the switch.

The Manufacturer declines all responsibility for failure to comply with the safety

regulations.

FUMES DISCHARGE

EXTERNAL EXHAUST HOOD SUCTION

In this version the fumes and vapours are discharged outside

through the exhaust pipe.

To this end, the hood outlet tting must be connected via a

pipe, to an external output.

The outlet pipe must have:

• a diameter not less than that of the hood tting.

• a slight slope downwards (drop) in the horizontal sections to prevent conden-

sation from owing back into the motor.

• the minimum required number of bends.

• the minimum required length to avoid vibrations and reduce the suction per-

formance of the hood.

You are required to insulate the pipes if it passes through cold environments.

In the presence of motors with 800m

/h or higher, a check valve is present to

prevent external air owing back.

Deviation for Germany:

when the kitchen hood is used at the same time as appliances that are powered by

energy other than electricity, the negative pressure in the room must not exceed 4 Pa

(4 x 10-5 bar).

HOOD WITH INTERNAL RECIRCULATION FILTERING

In this model, the air passes through the charcoal lters to be

puried and recycled in the environment.

Ensure that the active carbon lters are assembled into the

hood, if not, install them as indicated in the assembly instruc-

tions.

In this version the check valve must not be assembled: remove it if it is

on the air outlet tting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for personnel qualied

The hood can be installed in various congurations.

The generic assembly steps apply to all installations; for each case,

follow the specic steps provided for the required installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes

and vapours towards the suction surface.

After cooking, leave the hood operating until complete extraction of all vapours

and odours. By means of the Timer function, it is possible to set auto switch-o

function which will allow the hood to turn o automatically after 15 minutes of

operation.

WHICH SPEED IS TO BE SELECTED?

1st speed: maintains the circulation of clean air with low electricity consump-

tion.

2nd speed: normal conditions of use.

3rd speed: presence of strong odours and vapours.

4th speed: rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal lters must be cleaned every 30 hours of operation.

The active carbon lters must be replaced every 3-4 months, depending on the

use of the hood.

For further details see the “MAINTENANCE” chap.

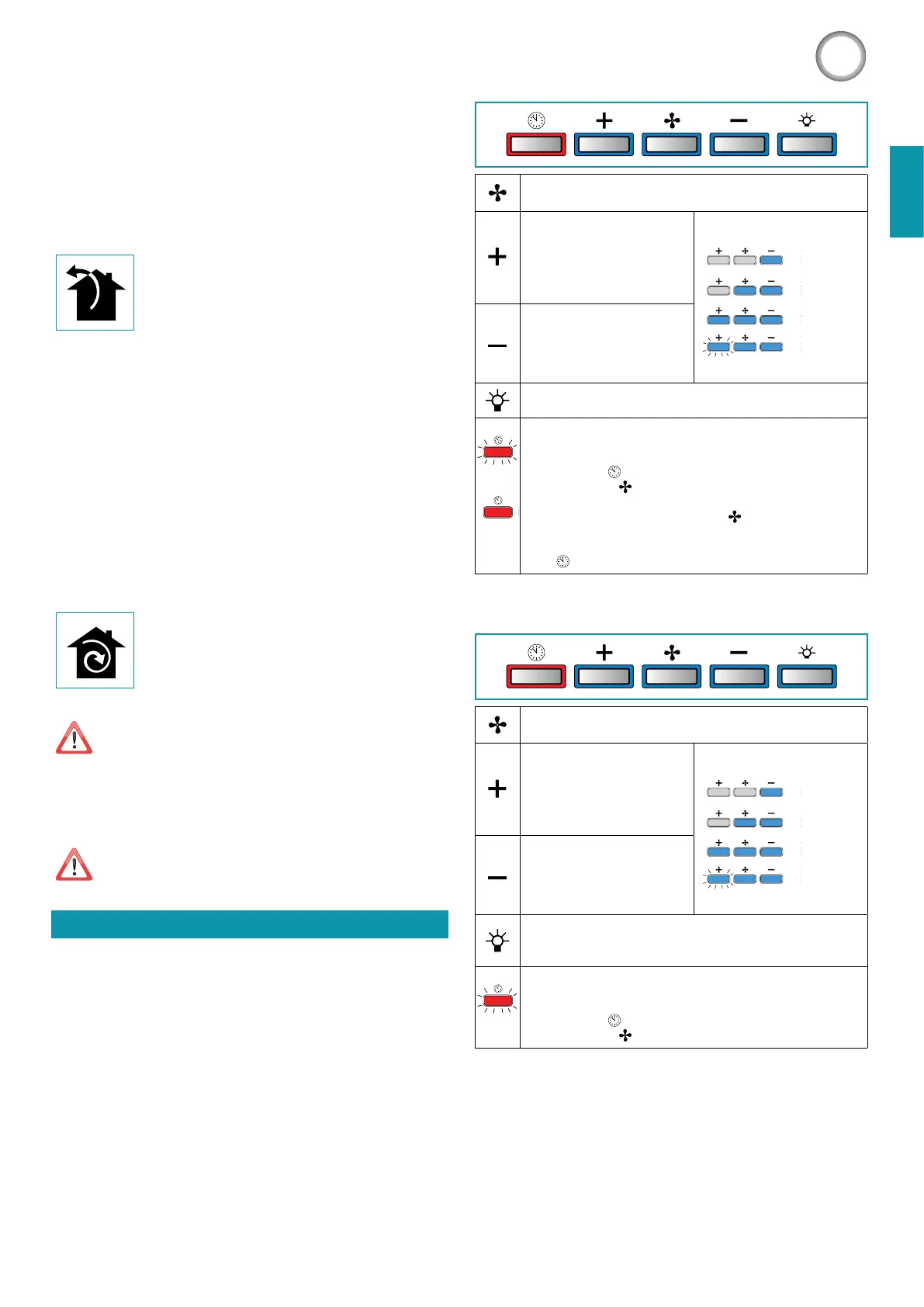

ELECTRONIC PUSHBUTTON PANEL

800

Motor ON/OFF

Upon start-up, the speed is that stored at the previous operation.

Increase speed from 1 to 4

Speed 4 is only active for a few

minutes, then speed 3 activates.

The speeds are indicated by the

LEDs on the keys:

Speed 1

Speed 2

Speed 3

Speed 4

("+" LED ashing)

Reduce speed from 4 to 1

Light on/o

TIMER (red LED ashing)

Auto switch-o after 15 min.

The function deactivates (red LED o) if:

- The TIMER key (

) is pressed again.

- The ON/OFF key (

) is pressed.

FILTER ALARM (red LED steady on with (

) o)

Anti-grease lter maintenance after approximately 30 hours of op-

eration.

Press (

) the meter for 3 seconds to reset.

ELECTRONIC PUSHBUTTON PANEL (PLANE TOP)
