16

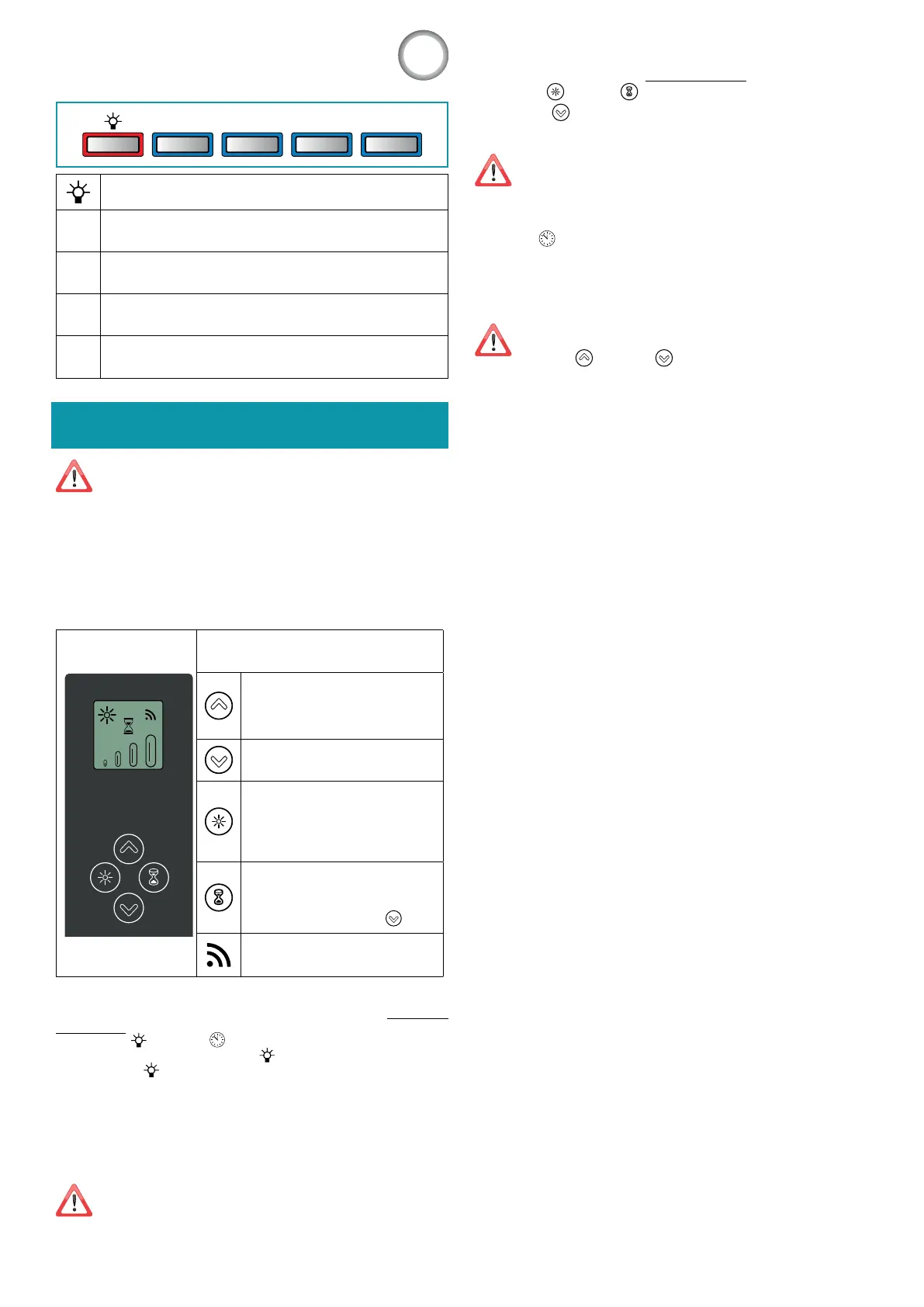

USE OF MECHANICAL PUSH BUTTON
CONTROL PANEL
600
m
3
/h
OFF 1 2 3
Light on/o
OFF
OFF button
Press this button to switch the motor o
1
Button 1: Press this button (button in) to start or set
the motor at minimum speed
2
Button 2: Press this button (button in) to start
or set the motor at medium speed
3
Button 3: Press this button (button in) to start or
set the motor at maximum speed
USING THE RADIO CONTROL
PLANE TOP, OPTIONAL
WARNINGS!:
Place the hood away from sources of electromagnetic waves (e.g.
microwave ovens), which could interfere with the radio control
and with the hood electronics.
The maximum operating distance is 5 metres, that may vary according to
the presence of electromagnetic interferences.
Radio control operated at 433.92MHz.
The radio control consists of two parts:
- the receiver built into the hood;
- the transmitter shown here in the gure.
DESCRIPTION OF TRANSMITTING
COMMANDS
UP
Motor switch-on and speed increase
from 1 to 4. Speed 4 is only active for
a few minutes.
DOWN
Speed decrease and motor switch-o.
Light ON-OFF
Short impulse:
turn light on and o
Long impulse:
change light tone from 2700K to 5600K
TIMER ON: The motor automatically
switches o after 15 min.
The function is automatically disabled
if the motor is switched o (
key)
Command transmission active
ACTIVATION PROCEDURE
Before using the radio control, follow the procedure below on the hood push-
button panel:
• Press LIGHT (
) and TIMER ( ) simultaneously until all LEDs start ashing.
• Release the two keys and press LIGHT (
) again until all LEDs are lit up.
• Release LIGHT ( ): now the receiver is active.
This procedure is also used to deactivate the receiver.
RADIO CONTROL CODE CHANGE
With only one radio control, go directly to point 2.
With several radio controls in the same room, a new code can be created by
following the procedure below.
Disconnect the power to the hood before starting the procedure.
1 CREATE A NEW CODE
The procedure is to be carried out on the radio control.
• Press LIGHT
and TIMER simultaneously until the display starts ashing.
• Press DOWN
on the radio control: saving is conrmed by three brief ash-
es of the display. The new code cancels and replaces the previous default
code.
Reconnect the hood to the electrical power supply, making sure
that the lights and motor are o.
2 ASSOCIATING THE RADIO CONTROL WITH THE HOOD
USING THE ELECTRONIC PUSHBUTTON PANEL
press TIMER (
) on the hood pushbutton panel for 2 seconds:
the red LED lights up.
press any key on the radio control within 10 seconds.
RESTORING DEFAULT CODE
the procedure is to be carried out if the hood is disposed of, sold or transferred.
Disconnect the power to the hood before starting the procedure.
• Press UP
and DOWN simultaneously on the radio control for
more than 5 seconds: reset is conrmed by three brief ashes of the display.
• Reconnect the hood to the electrical power supply.
• Proceed with associating the hood and the radio control, as described in point
2.
