The hood supplied with an 800 m3/h motor is equipped with a check valve whose function is to prevent external air exchange when the hood is not operating: refer
to the instructions D on page 5 for assembly.
When the kitchen hood is used simultaneously with other appliances that use gas or other fuels, the room must have sucient ventilation, in accordance
with regulations in force.
The active carbon filters in this version are to be removed. Refer to the instructions P on page 9 for removal.
Deviation for Germany: when the kitchen hood is used at the same time as appliances that are powered by energy other than electricity, the negative pressure in the room must
not exceed 4 Pa (4 x 10-5 bar).

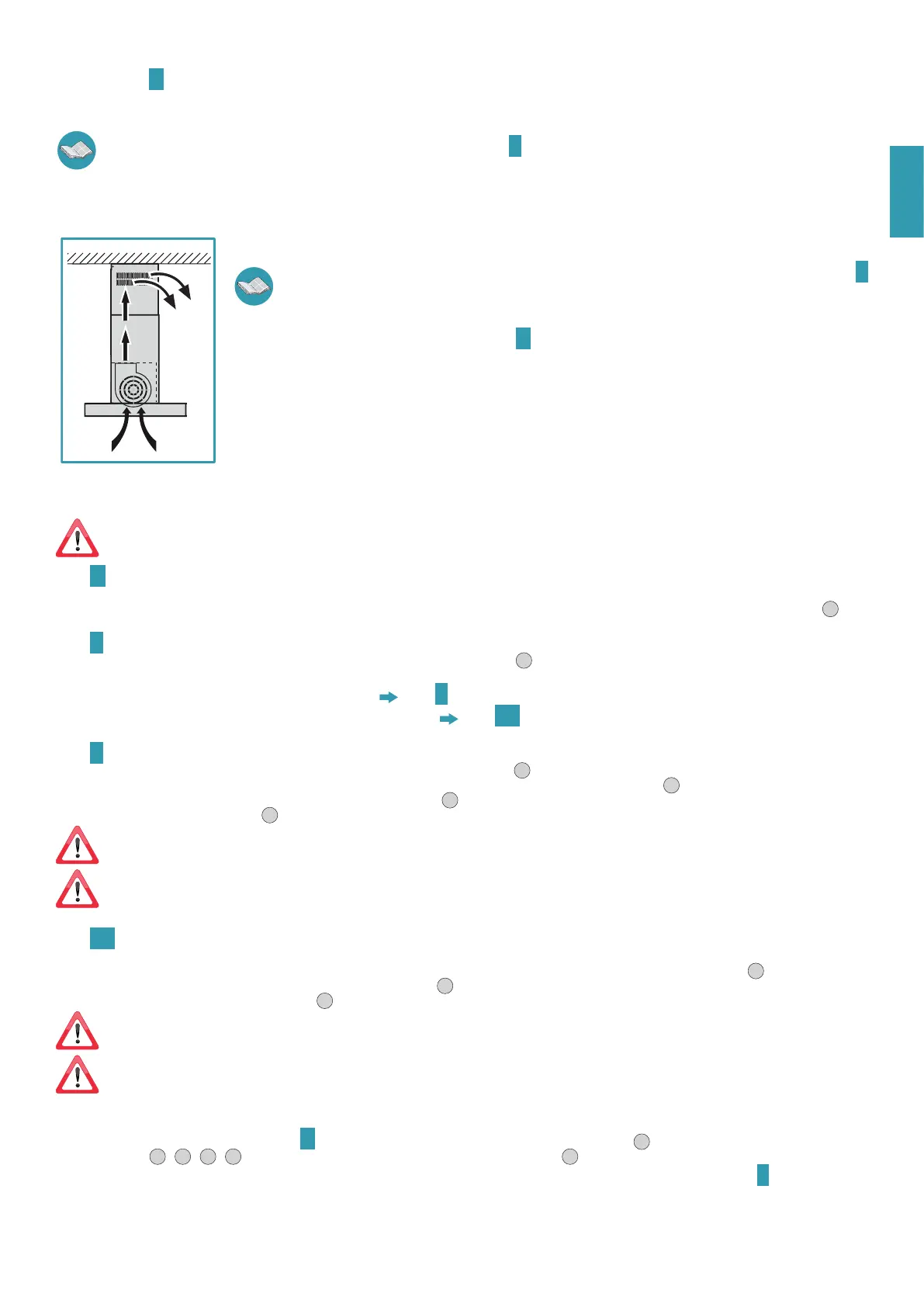

HOOD VERSION WITH INTERNAL RECIRCULATION FILTERING
In this model, air passes through the active carbon filters to be purified and is then recycled into the kitchen environment.
Check that the active carbon filters are assembled onto the hood, if not, install them as indicated in the instructions P
on page 9.
If the hood is set up with a filtering version, the check valve must not be assembled: remove it if it is on the air outlet fitting of the
motor (carry out operations described in the instructions D on page 5 in reverse order).
ASSEMBLY INSTRUCTIONS (only intended for personnel qualied to assemble the hood)
The Luce island hood can be installed in various congurations.
The generic assembly steps apply to all installations; for each case, follow the specic steps provided for the required installation.
Phase D page 4
• Measure the distance (H) from cooker to ceiling; decide the height you wish to position the hood at and take the measurement (H1) as illustrated in Fig.
1
.
Phase
B page 4
• Take the trellis down from the assembly (T+T1) the 8 screws (V2) and put them aside (Fig.
1
).
INSTALLATION ON CEILING
WITH/ WITHOUT FALSE CEILING Phase C page 5
INSTALLATION ON CEILING WITHOUT EXTENSION H AND TRELLIS T Phase C1 page 5
Phase C page 5
• Slide the two parts of the trellis (T) and (T1) to the previously established height (H1) (Fig.
1
).
• When the height is set (H1), put the 8 screws back in (V2) to secure the two parts of the trellis (T) and (T1) together (Fig.
2
).
• Mark 4 drilling points on the ceiling (also identified on page 3), drill (Fig.
3
) Put in 4 x ø 8mm expansion bolts and secure the trellis assembly (T+T1) to the
ceiling by the relative screws (V1) (Fig.
4
).
With false ceilings, the trellis (T+T1) must always be bolted to a masonry ceiling: if this is not possible and it is necessary to attach the hood directly to the
false ceiling, said false ceiling must be reinforced or somehow fitted with a solution that can guarantee safely attaching the hood to it, taking into account
the strength of the used materials and the weight of the hood (reported on page 2).
The xing kit (screws and plugs) supplied with the hood can only be used on masonry walls: should it be necessary to install the hood onto walls in
a different material, assess other fixing systems keeping the wall resistance and weight of the hood in mind (indicated on page 2).
Phase C1 page 5
Only for version with external exhaust (suction): if required by the selected height (H1), it is possible to install the hood using only the trellis (T1) and the flue (G).
• Attach the extension supporting elements (SP) to the trellis (T1) using the 8 self-threading screws (V4) through the pre-drilled holes (Fig.
1
)
• Mark 4 drilling points on the ceiling (also identified on page 3), drill (Fig.
2
) Put in 4 x ø 8mm expansion bolts and secure the extension supporting elements
(SP) to the ceiling by the relative screws (V1) (Fig.
3
).
With false ceilings, the extension supporting elements (SP) must always be bolted to the false ceiling: said false ceiling must be reinforced or somehow fitted
with a solution that can guarantee safely attaching the hood to it, taking into account the strength of the used materials and the weight of the hood (re-
ported on page. 2).
The xing kit (screws and plugs) supplied with the hood can only be used on masonry walls: should it be necessary to install the hood onto walls in
a different material, assess other fixing systems keeping the wall resistance and weight of the hood in mind (indicated on page 2).
EXTERNAL EXHAUST HOOD VERSION SUCTION
• If you wish, install the check valve (M)(Phase D page 5); if the connection is installed (ERM) take it down (Fig.
1
), install the check valve (M) as illustrated in
the figures (Fig.
2
-
3
-
4
-
5
) and put the previously removed connection back in (ERM) (Fig.
6
).
• Find the best length for the flexible (recommended) or rigid pipe to discharge the fumes and connect it suitably to the connection (Phase E page 5).
