FangLing F2100B/T - A3.4 Connection with ONTIME THC

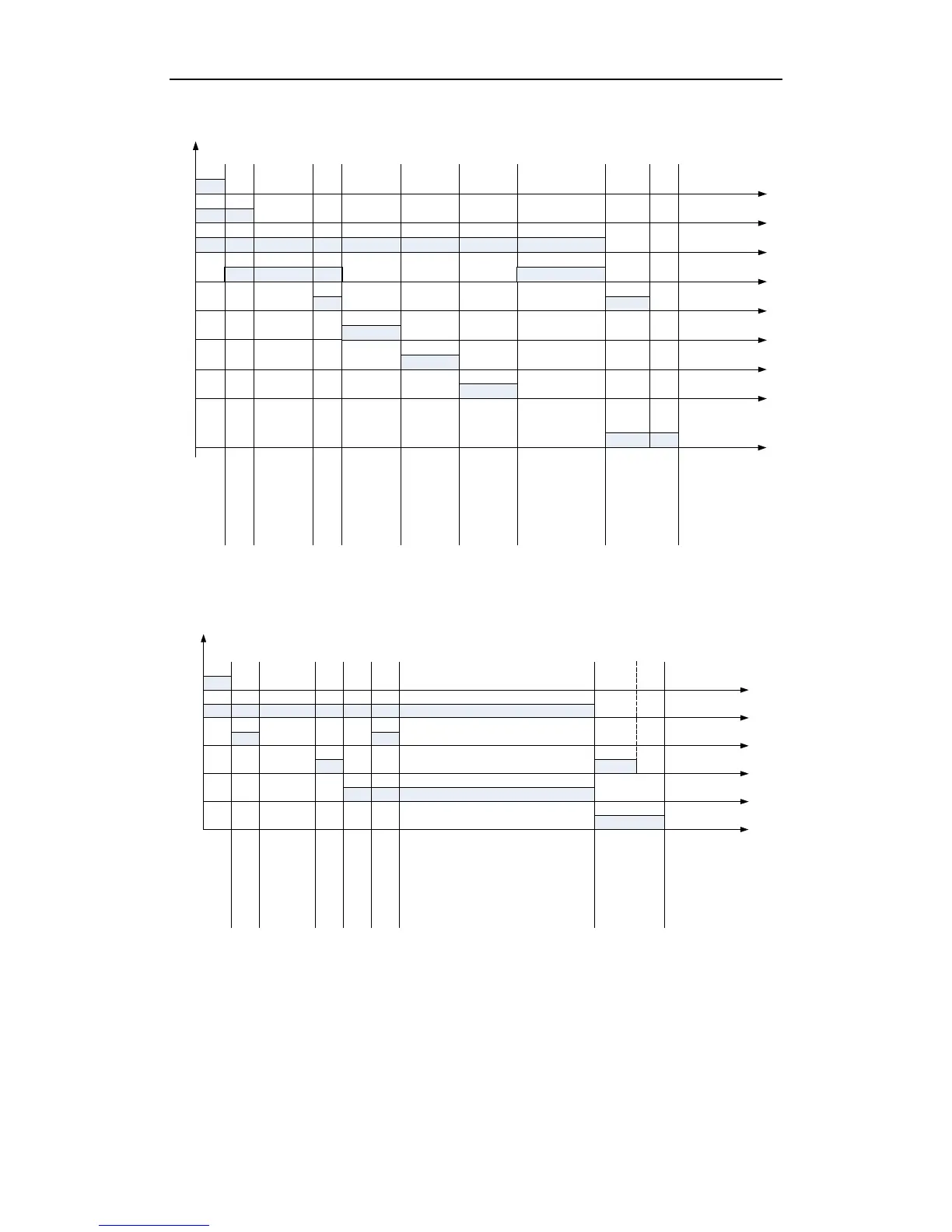

Appendix 2 I/O Timing Sequence Figure of F2000 Series Numerical Control System
120
Ignition
High Preheat
Low Preheat
THC Enable
TorchUp
Pierce 1
Pierce 2
Pierce 3
Blow
Ignition time
High preheat time
Low preheat time Pierce up time
Pierce 2 time Pierce 3 time
Cutting
Torch
up
time
Blow time
Level 3 perforation timing sequence with
THC
M07
M08
Note: Red words
mean output
port. Bold
black words
mean parameter.
Pierce 1 time
Appendix fig 2.2 Flame cutting timing sequence (Level 3 perforation with THC)
Ignition
Low Preheat
TorchDn
TorchUp
Pierce 3
Blow
Ignition time
Torch down time Low preheat time Pierce up time Pierce 3 time Pierce down time
Cutting
Torch
up
time
Blow time
Level 1 perforation timing sequence with
no THC
M07
M08
Note: Red words
mean output
port. Bold
black words
mean parameter.
Appendix fig 2.3 Flame cutting timing sequence (Level 1 perforation with no THC)
