USER MANUAL FOR FT TOWERS 11
9
Red knob base security system
19
Forks
10
Tower base
20
Leg carrier knob
OPERATING MODES

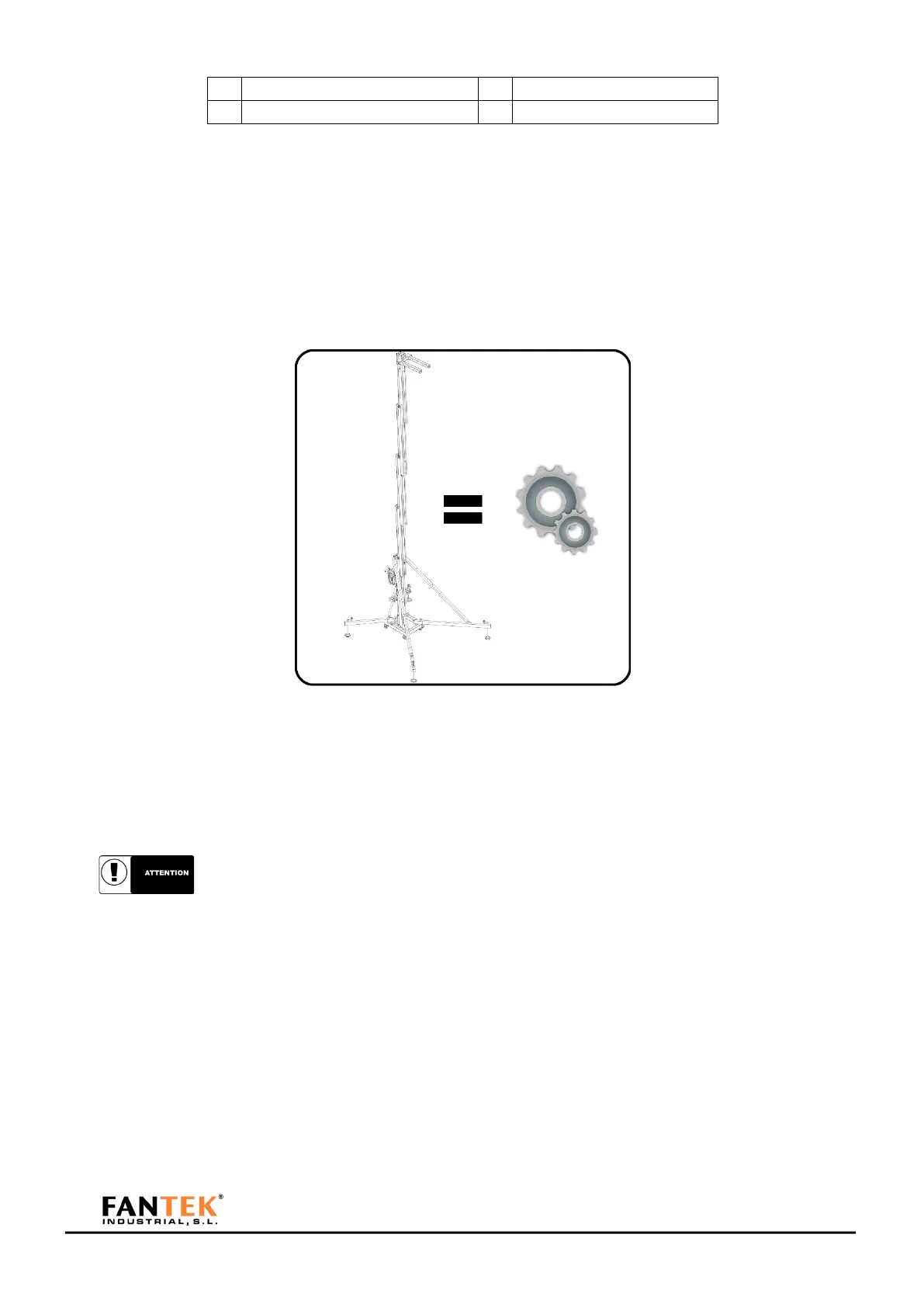

OPERATING MODE AS MECHANISM (MECHANISM MODE)
This mode involves lifting the load with the help of the winch. That is, the winch is driven and the pulleys
and cables are in charge of engaging and finally raising the load.
Figure 25
OPERATING MODE AS STRUCTURE (STRUCTURAL MODE)
This mode involves lifting the load with the help of a manual hoist. That is, the tower is used as a structure
that is all locked to the required working height. Once the tower is raised to this desired height, the load
must be raised with the hoist.
IMPORTANT ¡!! FOR THIS PURPOSE, USE ONLY MANUAL HOISTS
