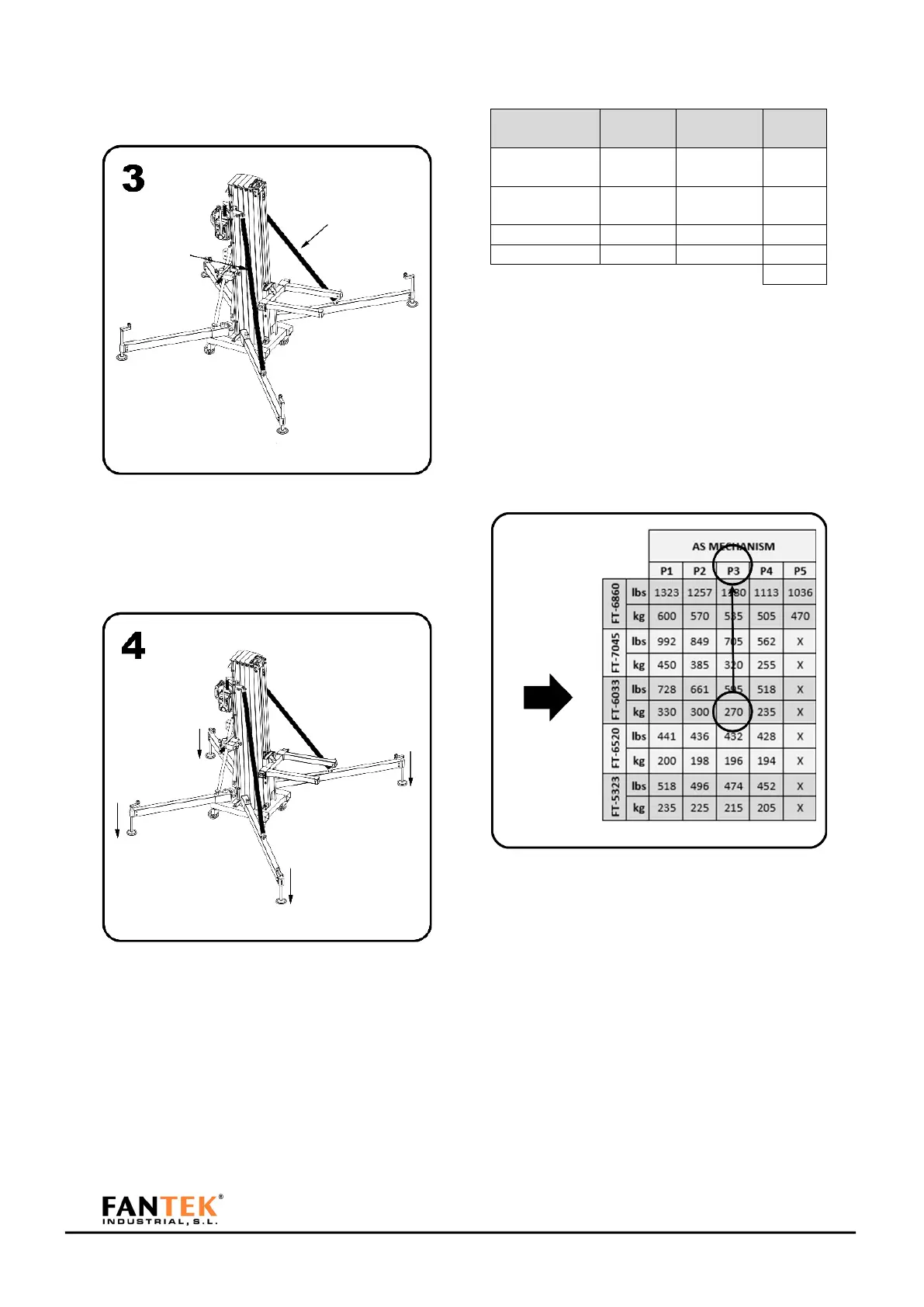

Figure 60
Place the reinforcement bars and fix them with
its pins to frontal legs.
Figure 61
Place the tower in its working position and level
until the bubble level is centered. Wheels should
not take into contact with the ground
Calculate the load to be lifted with the tower. An
example of basic load calculation is attached.
ITEM
WEIGHT
(kg)
QUANTITY
TOTAL
(kg)
Truss
accessory
0,75
2
1,5
Complete
truss system
53,3
0,5
26,65
Loads
368
0,5
184
Cables
38
0,5
19
231,15
Figure 62
In this example we have a weight of 231,15 kg.
With that load, check what position the load
should have on the tower fork. Take into account
that the truss is supported by two points of the
fork. To find out which is the largest load, take
the farthest position from the base of the fork.
Figure 63
Choose the FT tower model. Check for the value
immediately above the load you need. With this
value, take the exact position to which the
accessory for fixing the truss must be placed.
