USER MANUAL FOR FT TOWERS 5

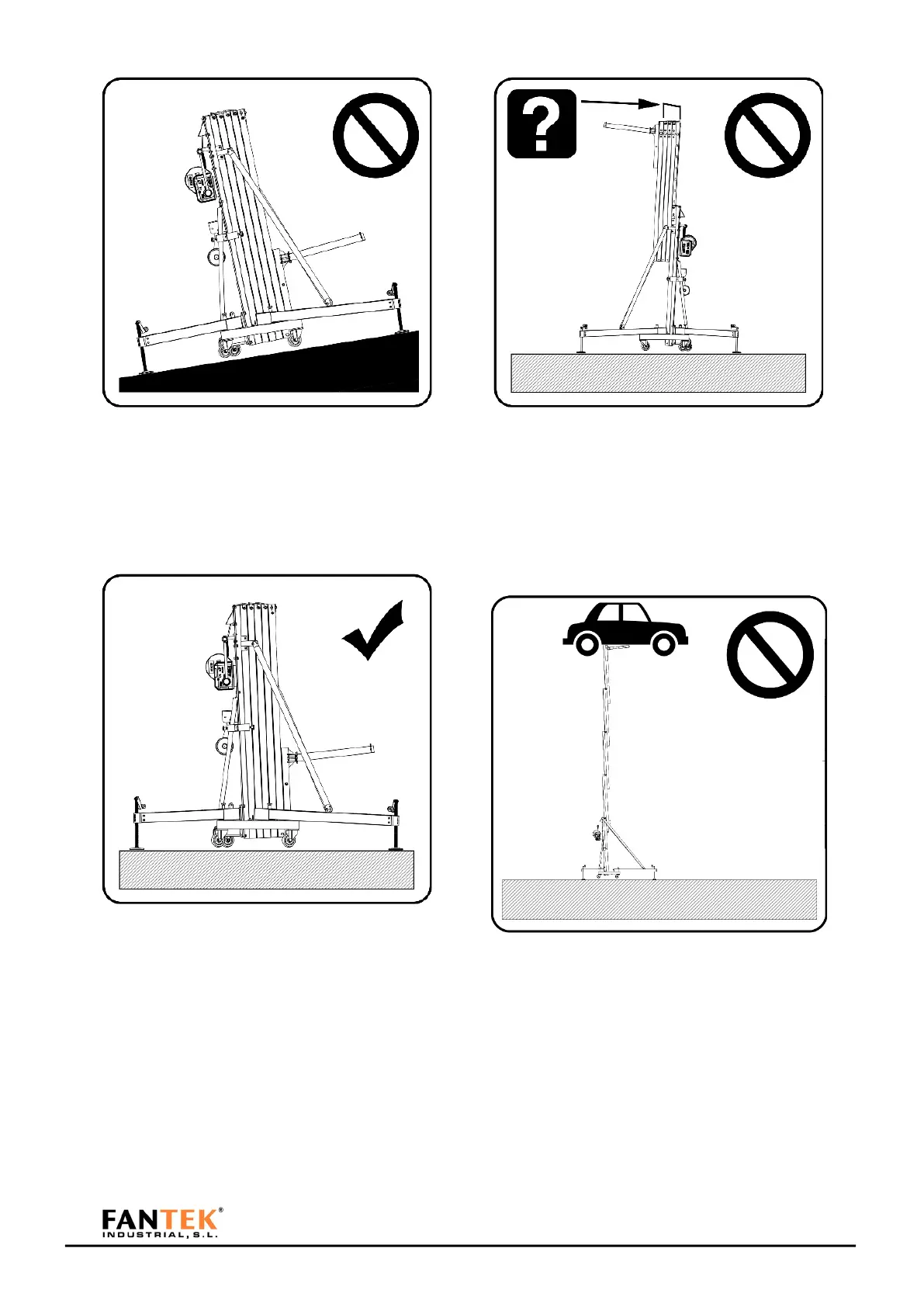

Figure 5
Do not use the tower on inclined surfaces that
require pieces to level the tower.
Figure 6
Mount the longest stabilizer legs in the part of
the horns. Safety pins must lock the stabilizers.
Figure 7
Lift the mast in the correct order.
Lift the mast of the tower starting always with
the carriage. The last mast lifted must be the next
to the section where the winch is placed.
Figure 8
Before placing a load, make sure that the load
never exceeds the maximum allowed. Consult
the section of load data.
