A
AC
Form "A"
Form "B"
O
NOTES:
1.) Units to be installed in accordance with
the National Electrical Code and/or local
electrical codes.
2.) Terminal block will accept a maximum of
#14 AWG wiring.

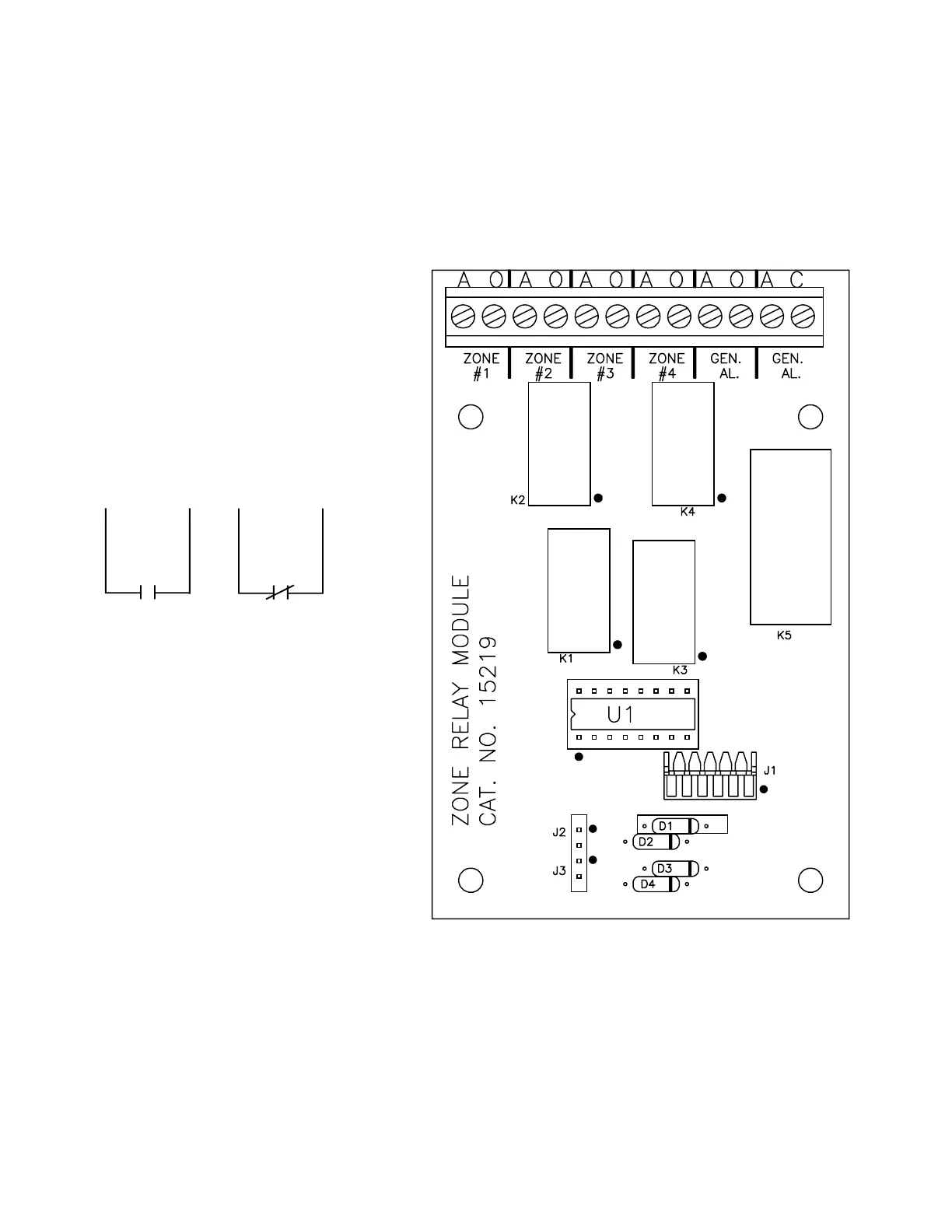

Typical contact configurations
(contacts shown in normal stand-by condition;
transfer for operated condition).
Zone alarm contacts for power limited source
rated 1A. @ 28 V.D.C., resistive.
Not supervised
General alarm contacts for power limited
source rated 5A. @ 30 V.A.C. / V.D.C.
Not supervised
