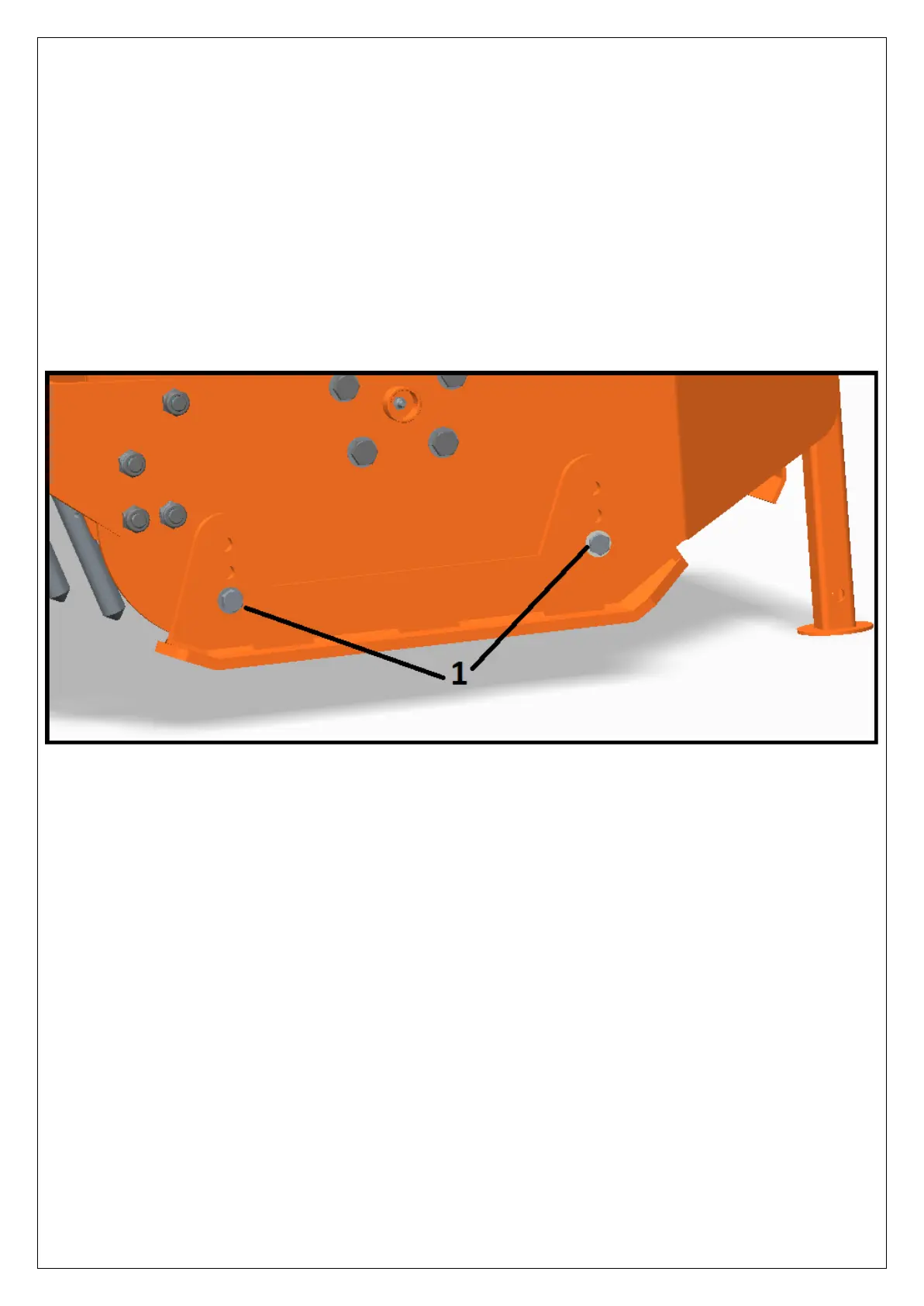

SKID ADJUSTMENT
The position of the skids can be adjusted by:
Loosening and removeing the bolts (1) that clamp the skids to the side plates of the frame,
Reposition the skids according to the needs, and
Retightening the bolts (1).
The skids can be placed in 3 different positions but, in the presence of the stabilizer roller ore the pivoting
wheels, they have the unique function of protecting the side plates of the frame from any direct contact with
the ground.
Therefore, make sure the skids are not positioned below the roller or wheels, because the latter two are the
devices holding the Flail Mower lifted off the ground (and not the skid).
RAKES ADJUSTMENT
The function of the rear rakes is to obtain a more fine crushing by holding the material within the shred-
ding room.
It is therefore recommend to perform the racks adjustment immediately after executing the cutting height
adjustment.
To do this follow these steps:
• remove the upper and lower cotter pins (1) from one of the rakes;
• push the rake downwards in order to retain more material inside the shredding chamber and obtain
a more fine crushing. Vice-versa, pull the rake upwards to retain less material inside the shredding
chamber and to obtain a more coarse crushing;
• insert the split pins (1) on the holes of the rake closest to rear bar;
• repeat the procedures adjusting all other rakes to the same height of the first one.
