5 MEASUREMENT AND CORRECTION OF UNBALANCE

5.1 Placing the wheel rim on the wheel balancer

5.1.1 Select the cone or flange suitable for the wheel to be balanced. Specific mounting instructions are delivered with each flange.

G NOTE The operation of centering and tightening of the wheel on the flanges is of basic importance for correct balancing.

Good results depend on proper performance of these procedures.

Clean accurately all cones, shaft and adapter surface before placing the wheel on the wheel balancer.

! CAUTION Always make sure flanges are correctly locked on the motor shaft and wheel is correctly locked on the

flange being used.

5.2 Input of Rim Dimensions

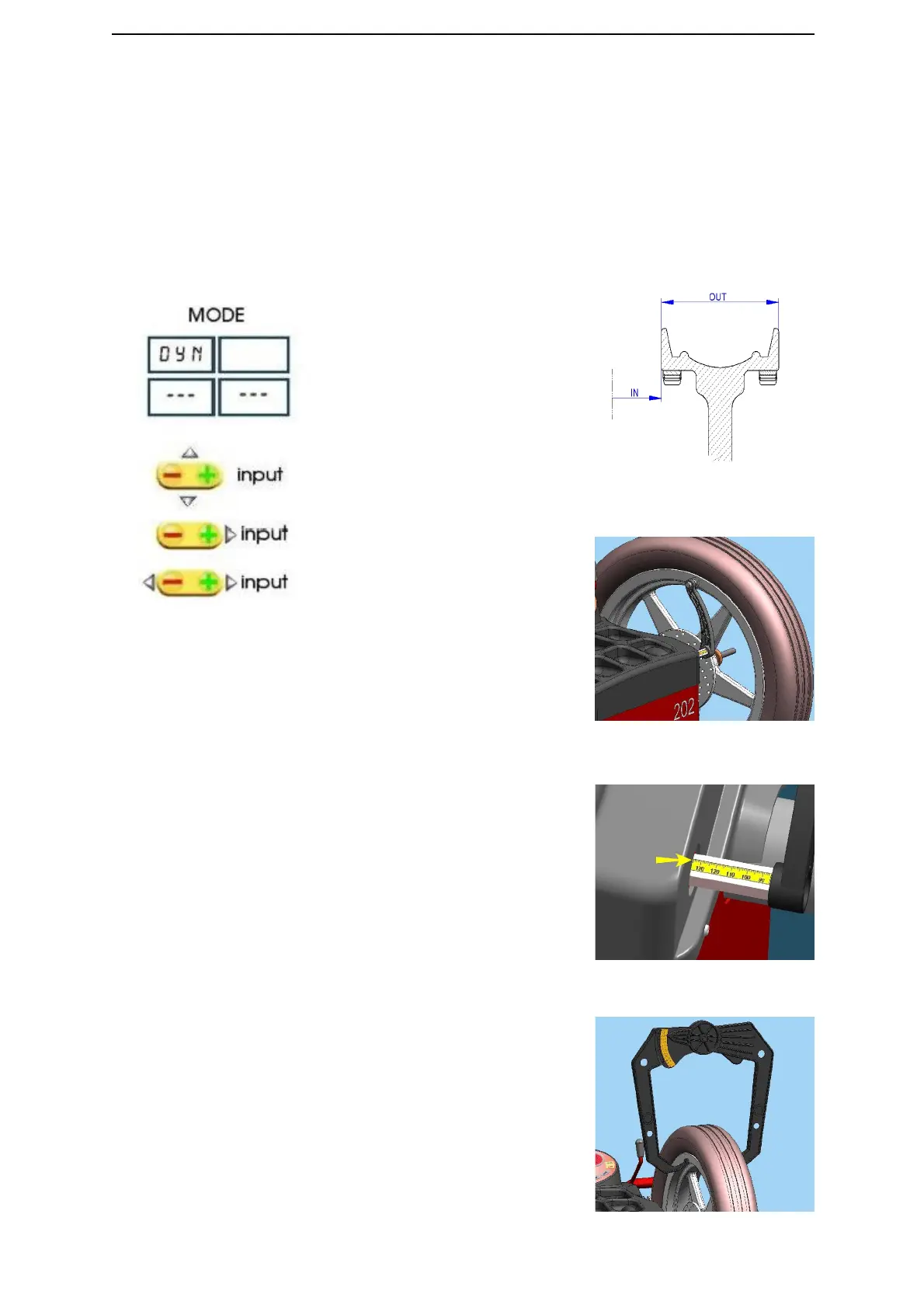

5.2.1 DYNAMIC MODE / STATIC MODE/ ALU

Press MODE to select the operating

mode.

Select the wheel diameter.

Select the distance of the wheel.(Fig. 18,

Fig.19)

Select the wheel width (Fig. 21).
