H0 CONTROLS TO OPERATE THE CRANE
(!) WARNING (!)
Before operating the crane it is compulsory to set
the outriggers. (Plate DE2327 fig. 16)
The crane and hydraulic implements can be manually
operated with:
- ground controls on both sides or, on request
ground controls on both sides and
top seat controls by hand-cables;
- top seat controls.
The plates reported over each lever define their function
in relation to their movement.
(!) ATTENTION (!)
The sequence of the plates placed on the crane controls may be different.
Make sure that the lever you are going to operate correspond to the control
you selected.
(!) Operate the levers smoothly and gradually (!)
When carrying out simultaneous movements of two or more functions, also related
to pump flow and lever travel, it is possible that on reaching the stroke end of a parti-
cular function, an increase in speed of the other functions will occur.
(!) WARNING (!)
While exiting and folding the crane, you must
operate from the distributor side; it is forbid-
den to operate from the double control side
because of the overall dimensions of the
booms. (DE1684A fig. 17)
H0
CONTROLS TO
OPERATE THE CRANE
F 170A
22
fig. 16
fig. 17

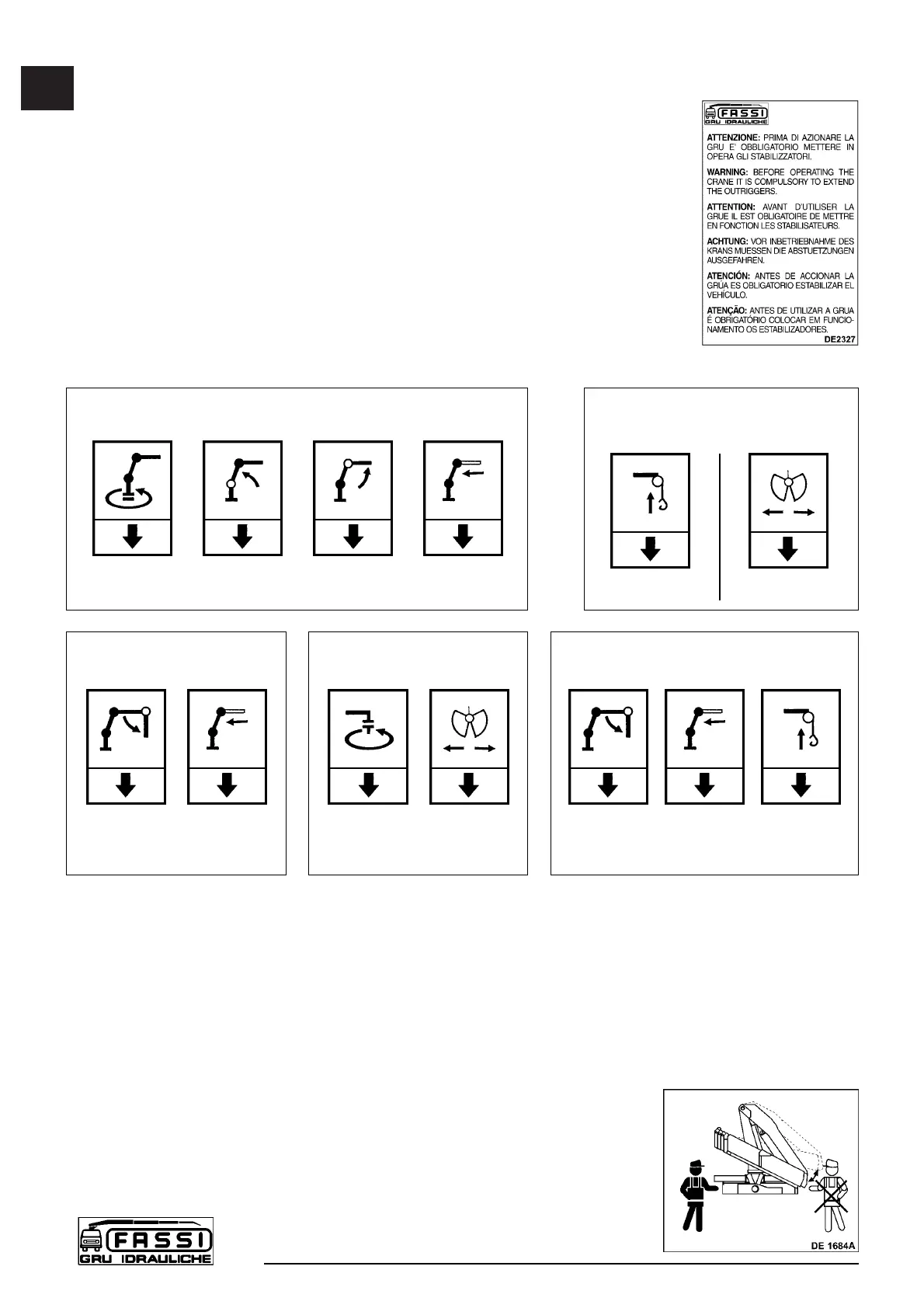

CRANE CONTROLS
IMPLEMENTS CONTROLS
1 Additional function
IMPLEMENTS CONTROLS
2 Additional functions
IMPLEMENTS CONTROLS
2 Additional functions
IMPLEMENTS CONTROLS
3 Additional elements
Rotation Inner
boom
Outer
boom
Extension
booms
Winch Bucket
Jib
outer
boom
Jib
extension
booms
Rotator Bucket Jib
outer
boom
Jib
extension
booms
Winch
