Fassi F 80A.23 - 4.1 HYDRAULIC SCHEMATICS; (version with load limiting device)

4.1
HYDRAULIC
SCHEMATICS
GR3
4.1 HYDRAULIC SCHEMATICS
(version with load limiting device)

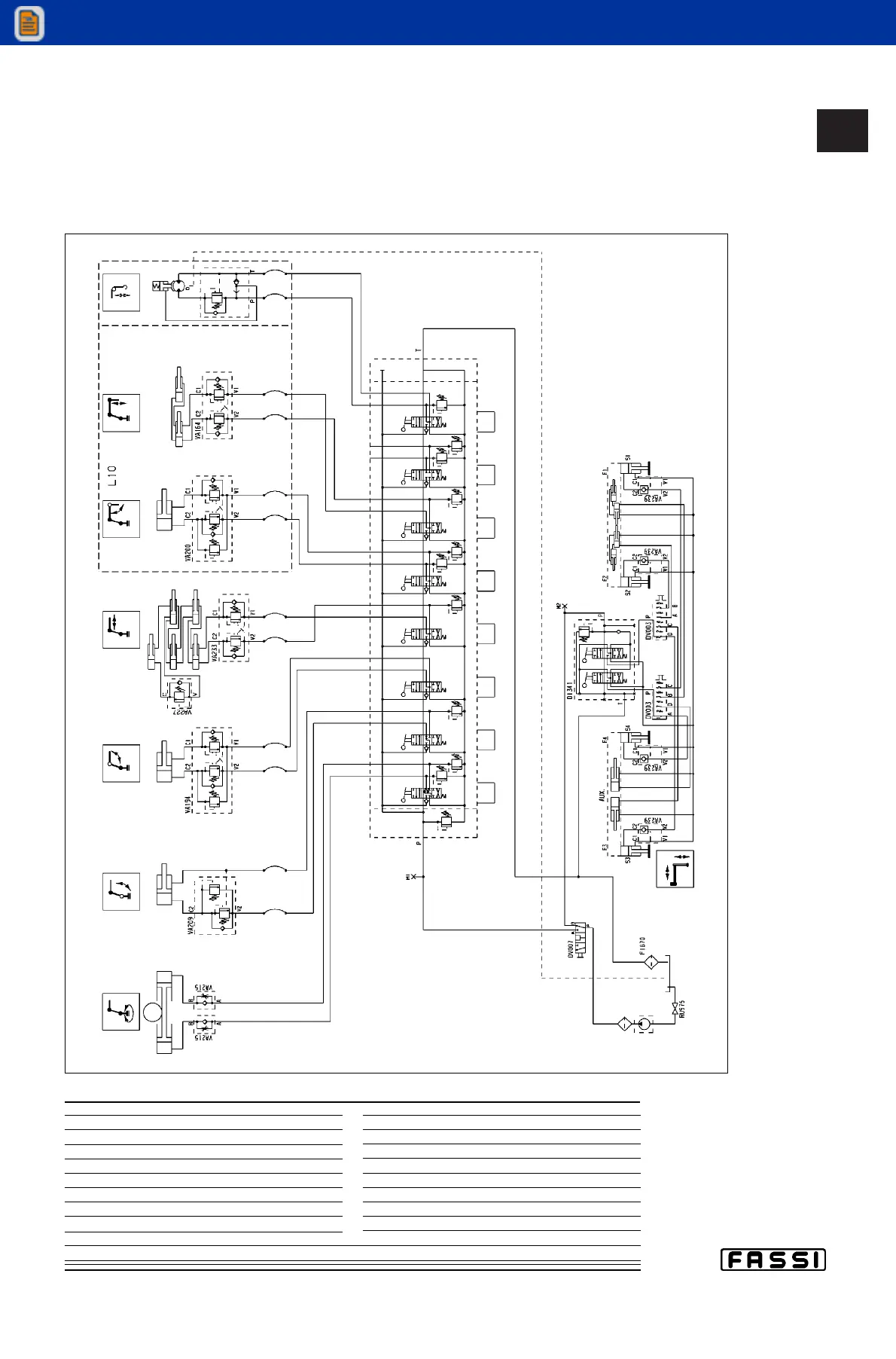

Hydraulic schematic for crane - HCD4 distributor - ground controls - load limiting device
CODE DESCRIPTION
DI341 DISTRIBUTOR
DV003 DEVIATOR
DV007 DEVIATOR
FI870 FILTER (RETURN)
RU975 FAUCET
VA164 DOUBLE EFFECT BLOCK VALVE
VA194 DOUBLE EFFECT BLOCK VALVE
VA200 DOUBLE EFFECT BLOCK VALVE
VA209 SIMPLE EFFECT BLOCK VALVE
VA215 OIL FLOW CHECK VALVE
VA227 SEQUENCE VALVE
VA233 DOUBLE EFFECT BLOCK VALVE
VA239 SIMPLE EFFECT BLOCK VALVE
