Fastech Ezi-SERVO ST User Manual

www.fastech-motions.com - 27
86mm
4-ø6.6 THRU
P.C.D 100
85
100
48
36
28
175
L+203±1
L+28±1
127
9
L ±1
ø91
ø89
0.05
0.05 A
0.076 A
A
A
R 0.4
M8 DP19
8
□ 90
2.5
ø80
-0.029(g6)
-0.010
ø22
-0.004(j6)
+0.009
4-ø6.6 THRU
2.5
P.C.D 100
100
□ 90
48
36
28
153
L
+181±1
L+28±1
105
9
L±1
ø91
ø89
0.05
0.05 A
0.076 A
A
A
R 0.4
M8 DP19
8 85
ø80
-0.029
(g6)
-0.010
ø22
-0.004
(j6)
+0.009
Unit Part Number Motor Stage □Reduction Gear Ratio L Length [mm]
Ezi-SERVO-ST-86M-■-PN□
EzM-86M-■-PN□
Single
Stage
3, 5, 8, 10 78
Ezi-SERVO-ST-86L-■-PN□ EzM-86L-■-PN□ 3, 5, 8, 10 117
Ezi-SERVO-ST-86XL-■-PN□
EzM-86XL-■-PN□ 3, 5, 8, 10 155
Unit Part Number Motor Stage □Reduction Gear Ratio L Length [mm]
Ezi-SERVO-ST-86M-■-PN□
EzM-86M-■-PN□
Double
Stage
15, 25, 40, 50 78
Ezi-SERVO-ST-86L-■-PN□ EzM-86L-■-PN□ 15, 25, 40, 50 117
Ezi-SERVO-ST-86XL-■-PN□
EzM-86XL-■-PN□ 15, 25, 40, 50 155
＊
The code of encoder resolution will be marked in“■”
＊
The code of encoder resolution will be marked in“■”

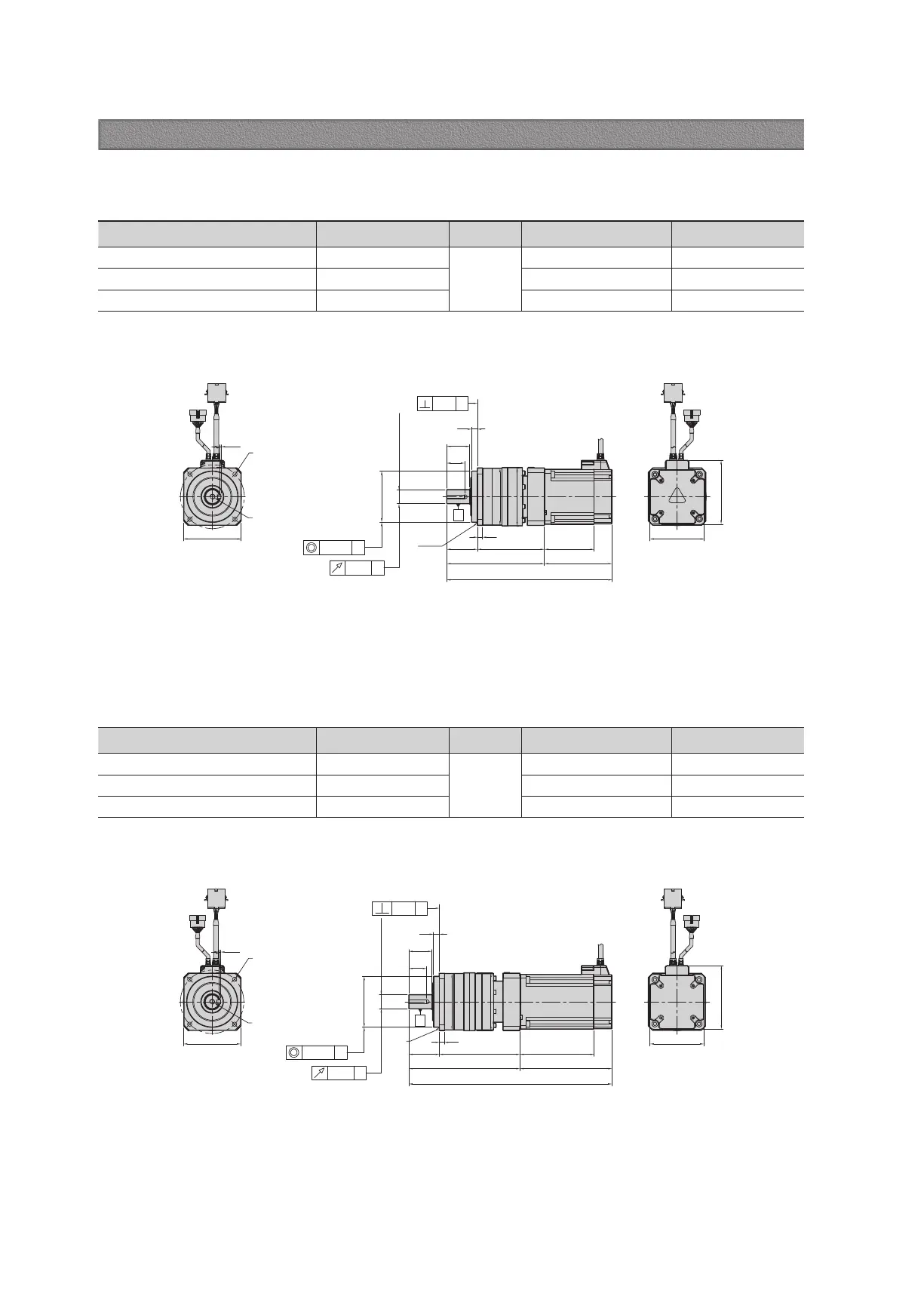

15. Dimensions of Motor with Gearbox [mm]
