www.fastech-motions.com - 29
Drive status LED
Direction setting
switch: ON
Direction setting
switch: OFF
16.4 Resolution Setting Switch(SW3)
*1 : Resolution of position “0” will be different according to the resolution of encoder adopted to the product.
But in case of the encoder with 10,000[ppr] resolution, it will be set as 500.
※ When selected resolution is more then encoder resolution, motor shall be operated by microstep between pulses.
The Number of pulse per revolution.

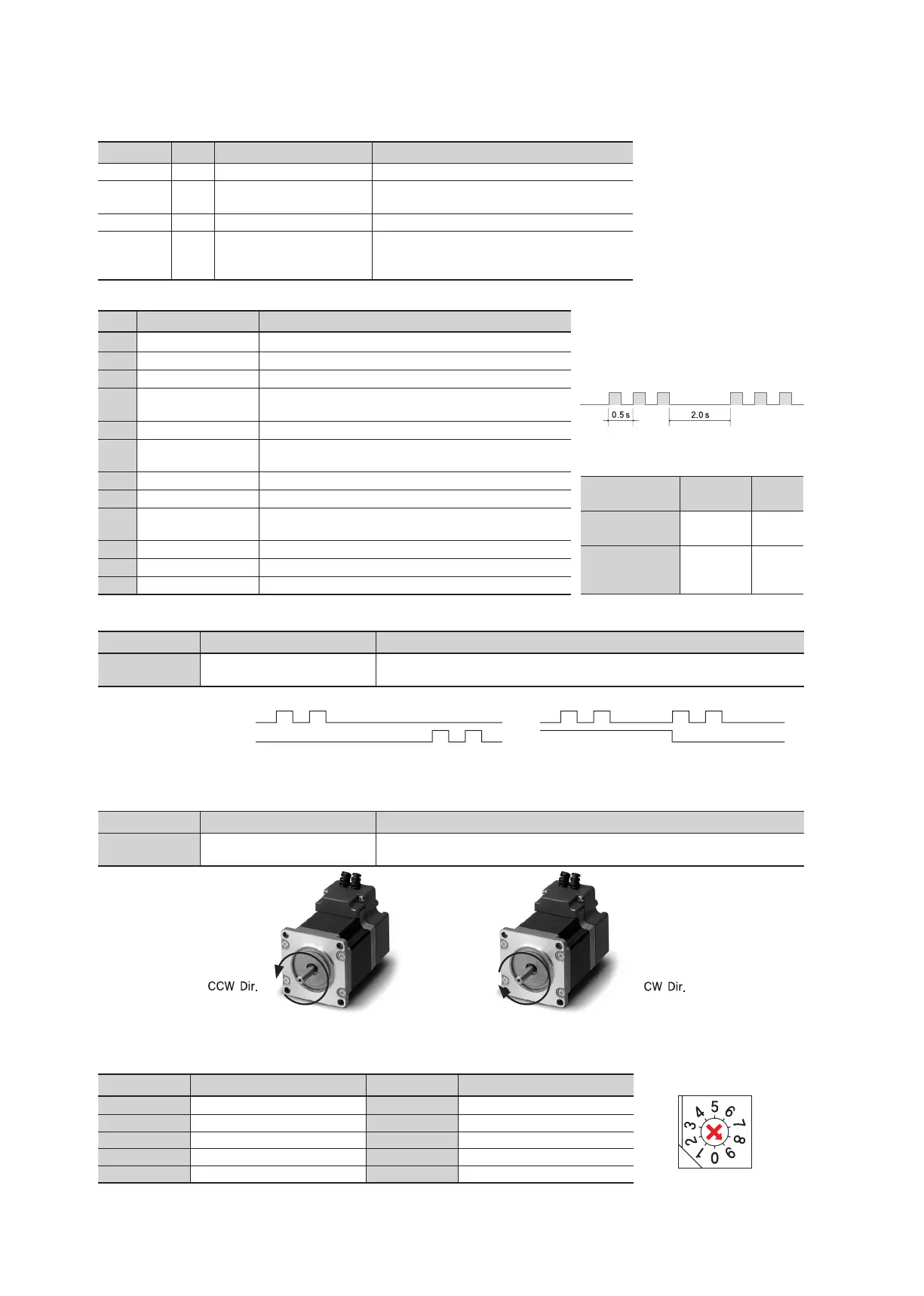

16.1 Drive Status LED
16.2 Pulse Input Setting Switch(SW1.1)
16.3 Rotational Direction Setting Switch(SW1.2)
◆ Protection functions and LED flash times
Indication Color Function ON/OFF Condition
PWR Green Power input indication LED is turned ON when power is applied
INP Yellow Complete Positioning Motion
Lights On when Positioning error reaches within
the preset pulse selected by rotary switch
SON Orange Servo On/Off Indication Servo On: Lights On, Servo Off: Lights Off
ALM Red Alarm indication
Flash when protection function is activated
(Identifiable which protection mode is activated
by counting the blinking times)
Times Protection Conditions
1 Over Current Error
The current through power devices in inverter exceeds the limit value
*1
2 Over Speed Error Motor speed exceeds 3,000 [rpm]
3 Position Tracking Error Position error value is higher than 180˚ in motor run state
4 Over Load Error
The motor is continuously operated more than 5 seconds under
a load exceeding the max. torque
5 Over Temperature Error Inside temperature of drive exceeds 85℃
6
Over Regenerative
Voltage Error
Back-EMF is higher than limit value
*2
7 Motor Connect Error The power is ON without connection of the motor cable to drive
8
Encoder Connect
Error Cable connection error in Encoder connection of drive
10 In-Position Error
After operation is finished, position error more than 1 pulse is
continued for more than 3 seconds
11 System Error Error occurs in drive system
12 ROM Error Error occurs in parameter storage device(ROM)
15 Position Overflow Error Position error value is higher than 1 8 0˚ in motor stop state
Alarm LED flash
(Ex, Position tracking error)
Indication Switch Name Functions
2P/1P
Selecting Pulse
Input Mode
Selectable 1-Pulse input mode or 2-Pulse input mode as Pulse input signal.
ON: 1-Pulse mode OFF: 2-Pulse mode ※ Default: 2-Pulse mode
Indication Switch Name Functions
DIR
Switching Rotational
Direction
Based on CW(+Dir signal) input to driver.
ON: CCW(-Direction) OFF: CW(+Direction) ※ Default: CW mode
Position Pulse/Revolution Position Pulse/Revolution
0
500
*1
5 3,600
1 500 6 5,000
2 1,000 7 6,400
3 1,600 8 7,200
4 2,000 9 10,000
CW(Pulse) Pin
CCW(Dir) Pin
Rotational Direction CW CWCCW CCW
2-Pulse Mode 1-Pulse Mode
Motor EzM-20~60 EzM-86
*1 Over Current
limit
4.8A 9.6A
*2 Over
Regeneratived
Voltage limit
70V 90V
