TP/9S 6509xxxx
MECHANICAL CHARACTERISTICS
The TP/9S keyboard produces a quick and light feel and
is very comfortable for a wide range of music styles. The
keyboard is made of plastic keys and uses springs to let
the key return to its initial position. The frame is made by
a special over-molding process to get a solid body with
the flexibility of the polymer materials and the stability
of the metal core. The TP/9S keyboard with his features
comes in a compact size and it is adaptable to different
uses in various types of cabinets.

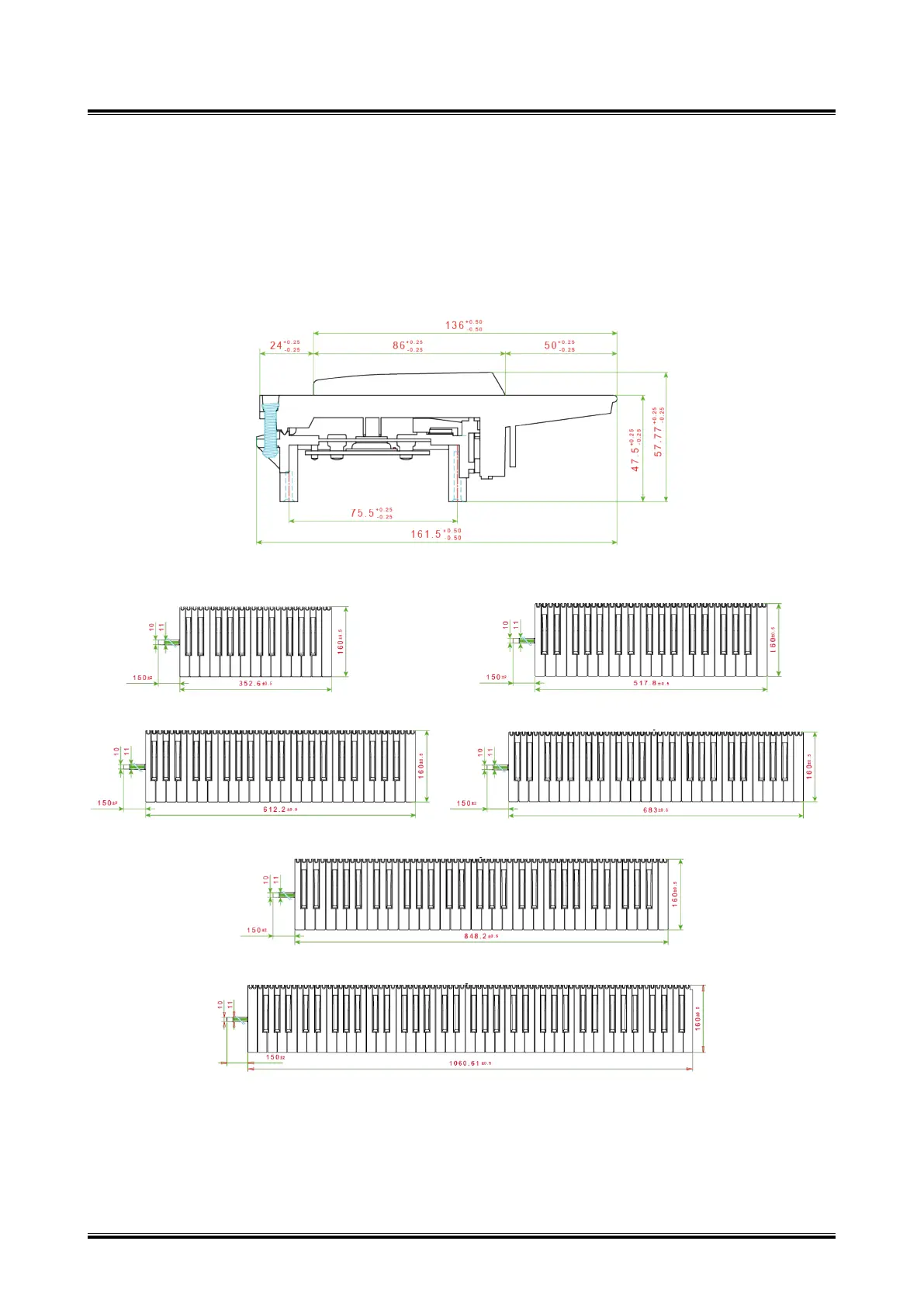

Figure 2: TP/9S Side View
(a) 25 keys (b) 37 keys
(c) 44 keys (d) 49 keys
(e) 61 keys
(f) 76 keys
Figure 3: TP/9S top view
© 2021 FATAR srl
PAGE | 3 / 18
