Fatar TP/9S - TABLE 1-3 ENTIRE TRAVEL; TABLE 1-4 EXTRA TRAVEL

TP/9S 6509xxxx

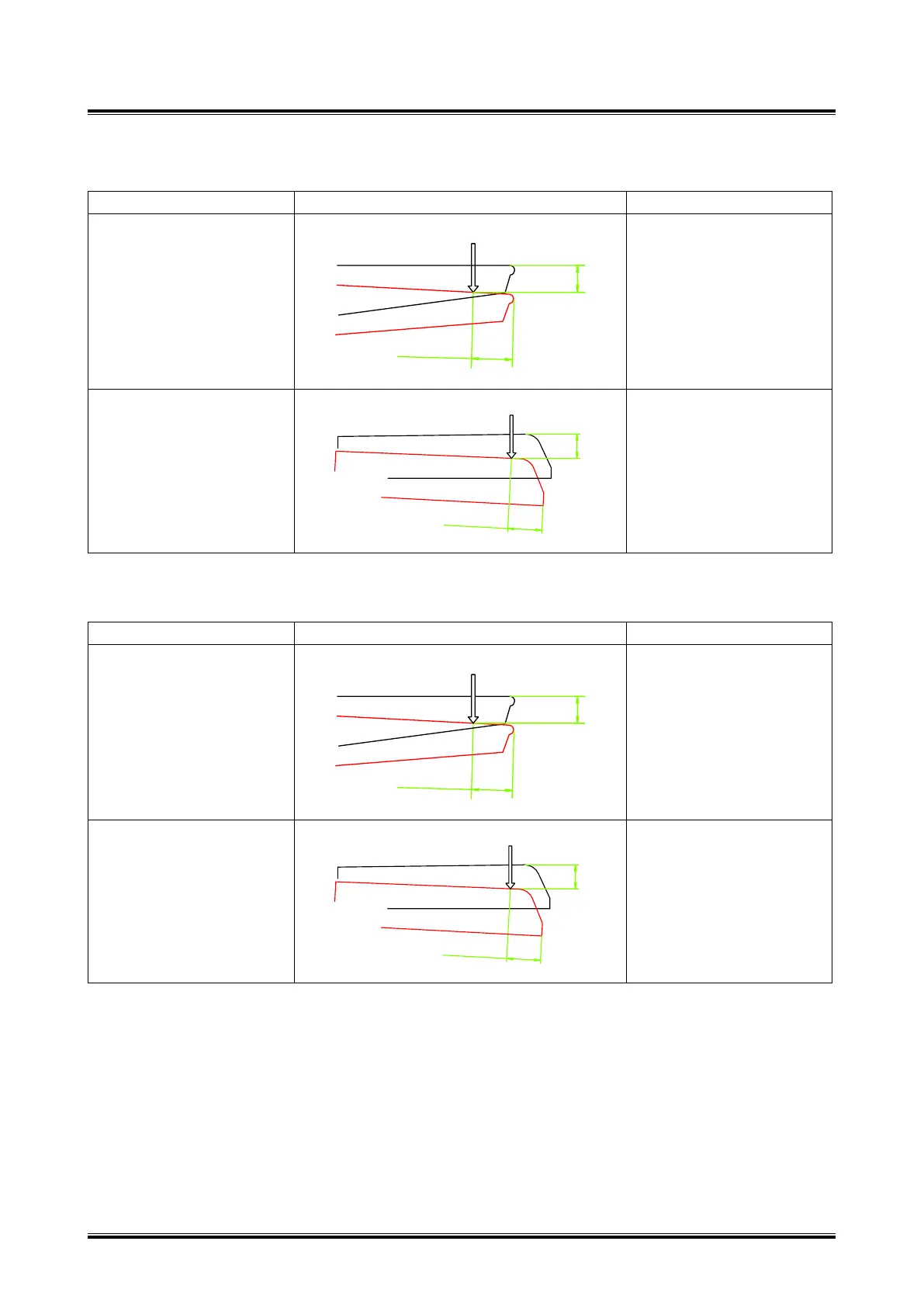

TABLE 1-3 ENTIRE TRAVEL
ITEM CONDITION STANDARD
WHITE KEY
F: Applied force on white key
to go at maximum travel
A: Measured travel of white
key
F
220 (gf)
5(mm)
A
A = 10.0 +/- 1.0 mm
BLACK KEY
F: Applied force on black key
to go at maximum travel
A: Measured travel of black
key
F
220 (gf)
A
10 (mm)
A = 5.7 +/- 1.0 mm
TABLE 1-4 EXTRA TRAVEL
ITEM CONDITION STANDARD
WHITE KEY
F: Applied force on white key
to go at maximum travel
A: Measured travel of white
key
F
2400 (gf)
5(mm)
A
A = 15.0 +/- 1.0 mm
BLACK KEY
F: Applied force on black key
to go at maximum travel
A: Measured travel of black
key
F
2400 (gf)
A
10 (mm)
A = 7.0 +/- 1.0 mm
© 2021 FATAR srl
PAGE | 6 / 18
