Fatar TP/9S - ELECTRICAL CHARACTERISTICS; TABLE 2-1 CONTACT RESISTANCE; TABLE 2-2 INSULATION RESISTANCE

TP/9S 6509xxxx
ELECTRICAL CHARACTERISTICS

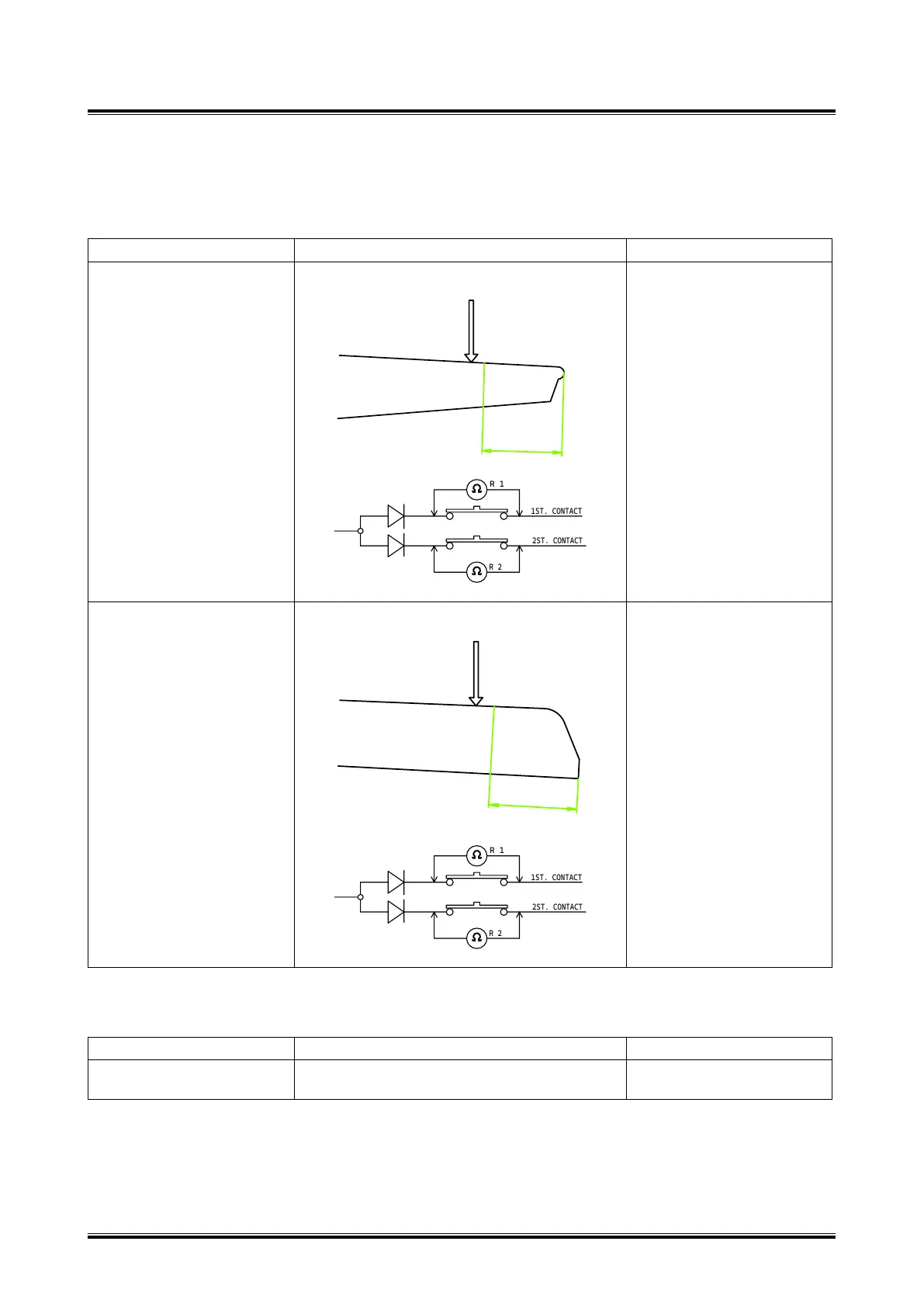

TABLE 2-1 CONTACT RESISTANCE
ITEM CONDITION STANDARD
WHITE KEY
F: Applied force on white key
to go at maximum travel
R1: Measured resistance of
the first contact
R2: Measured resistance of
the second contact
220 (gf)
F
10(mm)
R 1
R 2
1ST. CONTACT
2ST. CONTACT
R1: less than 100 ohm
R2: less than 100 ohm
BLACK KEY
F: Applied force on black key
to go at maximum travel
R1: Measured resistance of
the first contact
R2: Measured resistance of
the second contact
F
220 (gf)
10(mm)
R 1
R 2
1ST. CONTACT
2ST. CONTACT
R1: less than 100 ohm
R2: less than 100 ohm
TABLE 2-2 INSULATION RESISTANCE
ITEM CONDITION STANDARD
Resistance of the open con-
tacts
At 500 VDC More than 100Mohm
© 2021 FATAR srl
PAGE | 7 / 18
