Basic Function Instruction
6 - 24

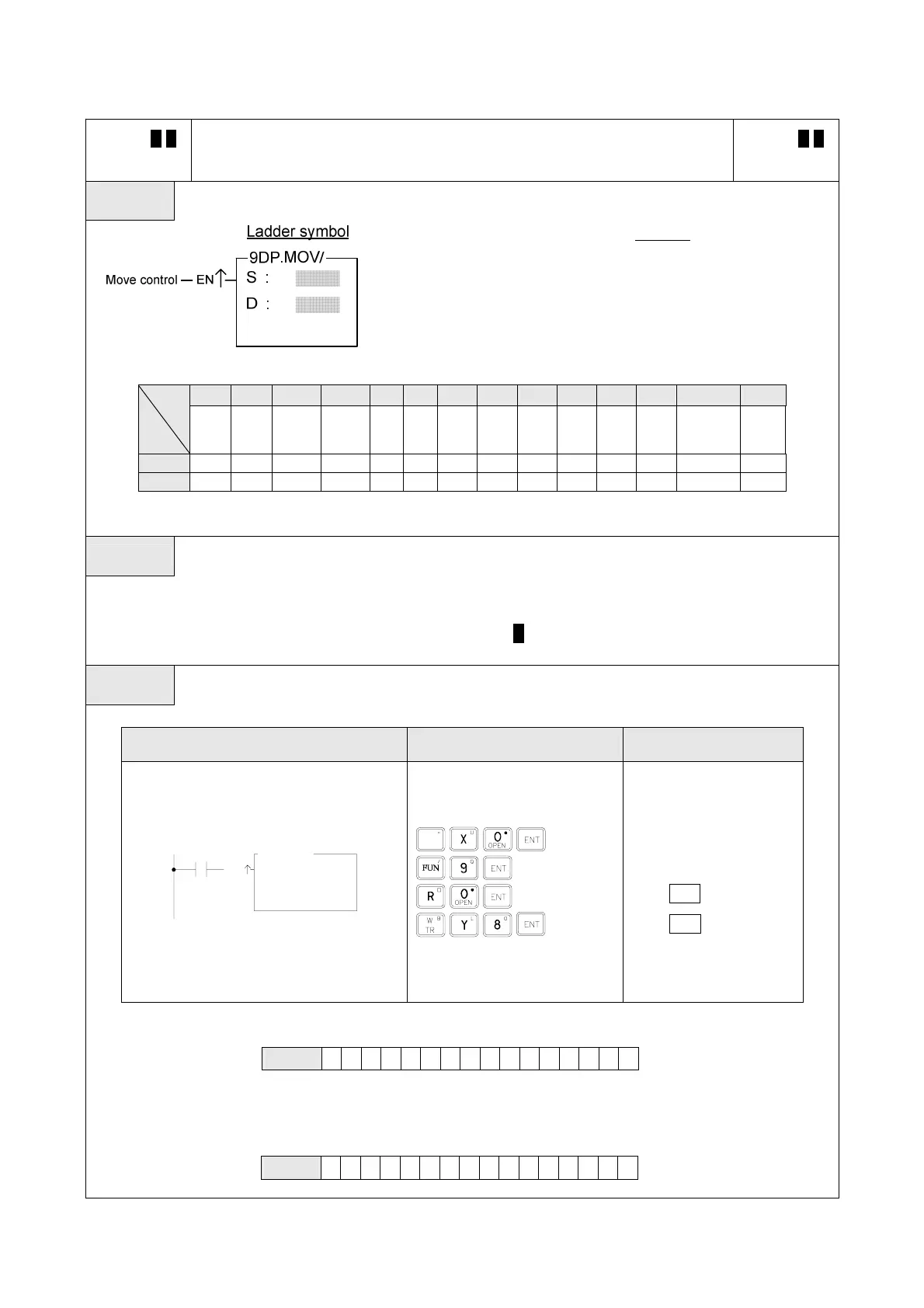

FUN 9 D P
MOV/
MOVE INVERSE
(Inverts the data of S and moves the result to a specified device D)
FUN 9 D P
MOV/
Symbol
Operand
S: Source register number
D: Destination register number
S, N, D may combine with V, Z, P0~P9 to serve
indirect addressing
WX WY WM WS TMR CTR HR IR OR SR ROR DR K XR
Range
Ope-
rand
WX0
∣
WX240
WY0
∣
WY240
WM0
∣
WM1896
WS0
∣
WS984
T0
∣
T255
C0
∣
C255
R0
∣
R3839
R3840
∣
R3847
R3904
∣
R3967
R3968
∣
R4167
R5000
∣
R8071
D0
∣
D4095
16/32-bit
+/
− number
V
、Z
P0~P9
S ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
D ○ ○ ○ ○ ○ ○ ○ ○* ○* ○ ○
Description
● Inverts the data of S (changes the status from 0 to 1 and from 1 to 0) and moves the results to a specified
register D when the move control input "EN" =1 or "EN↑" ( P instruction) from 0 to1.
Example Moves the inverted data of a 16-bit register to another 16-bit register.
Ladder Diagram Key Operations Mnemonic Codes
S :
X0
EN
D :
9.MOV/
R 0
WY 8
ORG
ORG X 0
FUN 9
S
： R 0
D： WY 8
B15 B0
S R0 0 1 0 10101010101015555H
Ø
X0＝1
Y23 Y8
↓ ↓
D WY8 1 0 1 0101010101010AAAAH
