8-3
f Jump

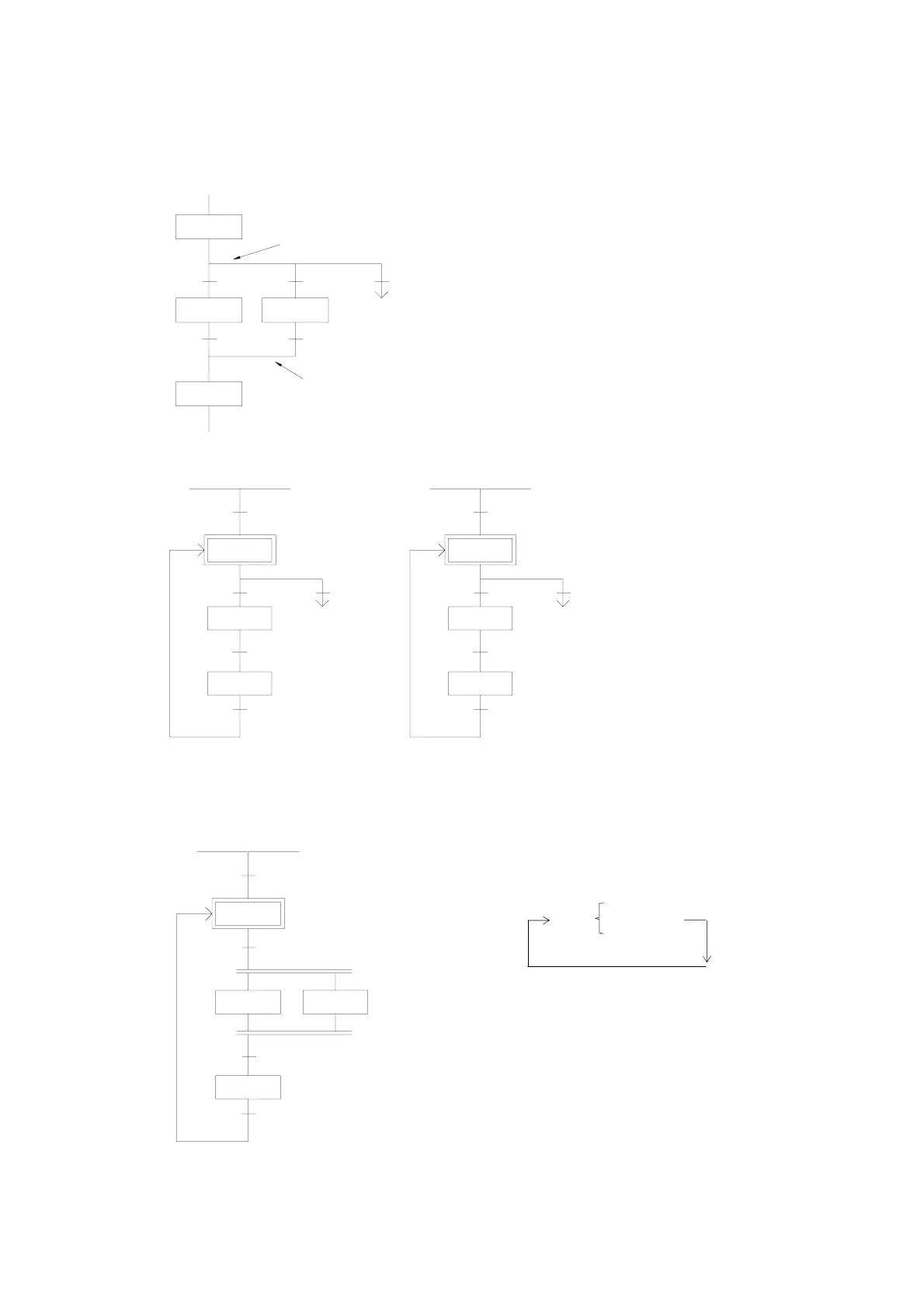

a. The same step loop
STP S20
X0
X3
STP S21
STP S23
X1
X4
STP S22
X2
S23
3-divergence
2-convergence
z There are 3 paths below step S20 as shown on the left.
ssume that X2 is ON, then the process can jump directly
to step S23 to execute without going through the process
of selective convergence.
z The execution of simultaneous divergent paths can not be
skipped.
b. Different step loop
M1924
X0
X2
X3
STP S20
STP S21
X4
S30
X10
STP S7
X11
X1
X3
STP S30
STP S31
X12
S21
STP S0
gClosed Loop and Single Cycle
a. Closed Loop
M1924
STP S1
STP S20
STP S22
X0
X1
X2
STP S21
z The initial step S1 is ON, endless cycle will be continued
afterwards.
S1
Æ ÆS22
S20
S21
To Next Page
