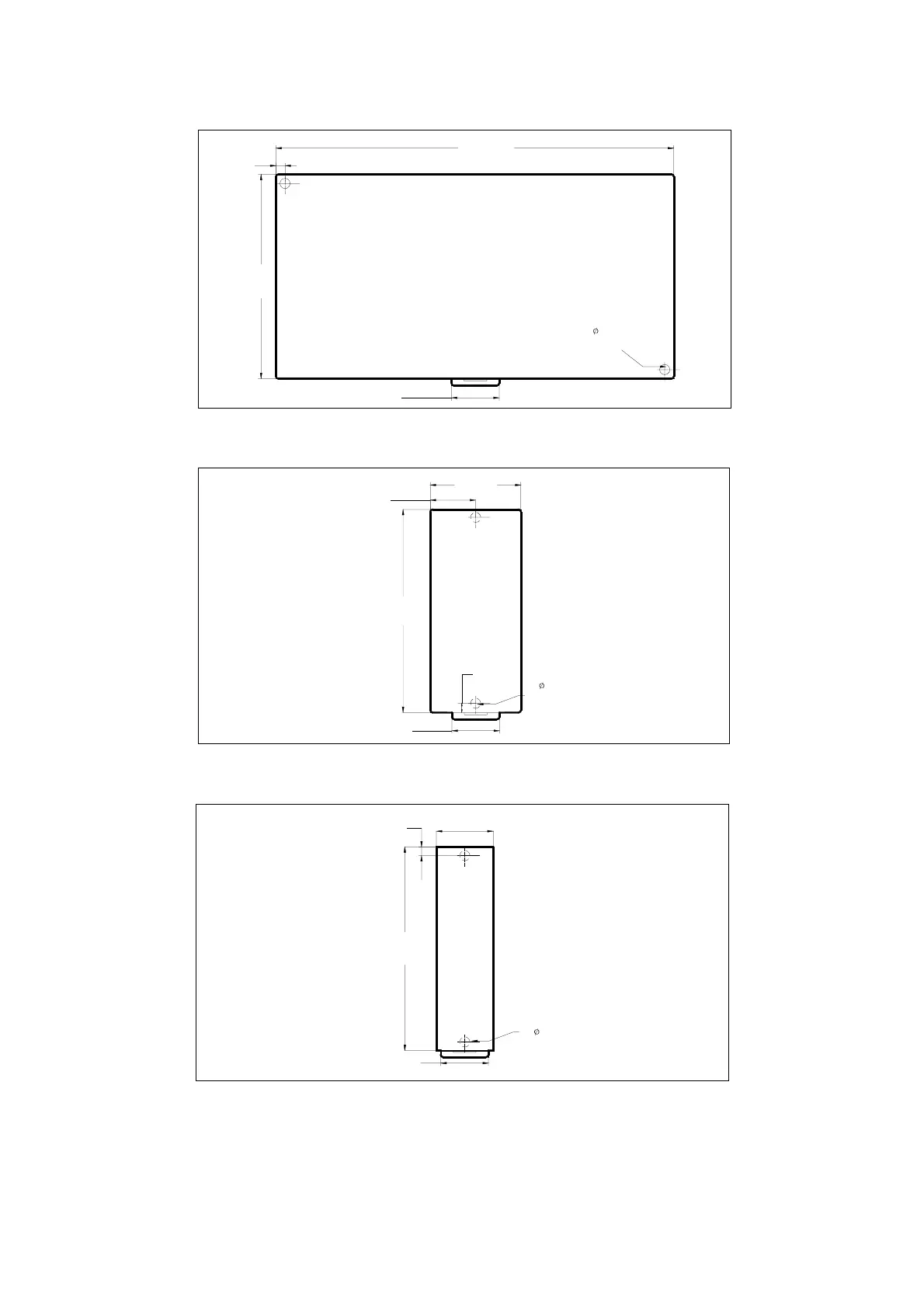

FATEK FBs-4A2D - Page 40

H4-5
4mm
(0.157in)
90mm
(3.543in)
21mm
(0.827in)
1750mm
(6.890in)
2 - 4.5 mm
(0.177 in)
尺寸 D :
尺寸 E :
90mm
(3.543in)
21mm
(0.827in)
40mm
(1.575in)
20mm
(0.787in)
3.8mm
(0.150in)
2 - 4.5 mm
(0.177 in)
尺寸 F :
25mm
(0.984in)
90mm
(3.543in)
21mm
(0.827in)
2 - 4.5 mm
(0.177 in)
3.8mm
(0.150in)
Size E:
Size F:
Size D:
