FATEK M Series - 18-3 VFFS Vertical Filling Packaging Machine Application

Amendment record
M-Series PLC Motion User Manual
18-3 VFFS 垂直填料包裝機
【Example 1】VFFS 垂直填料包裝機

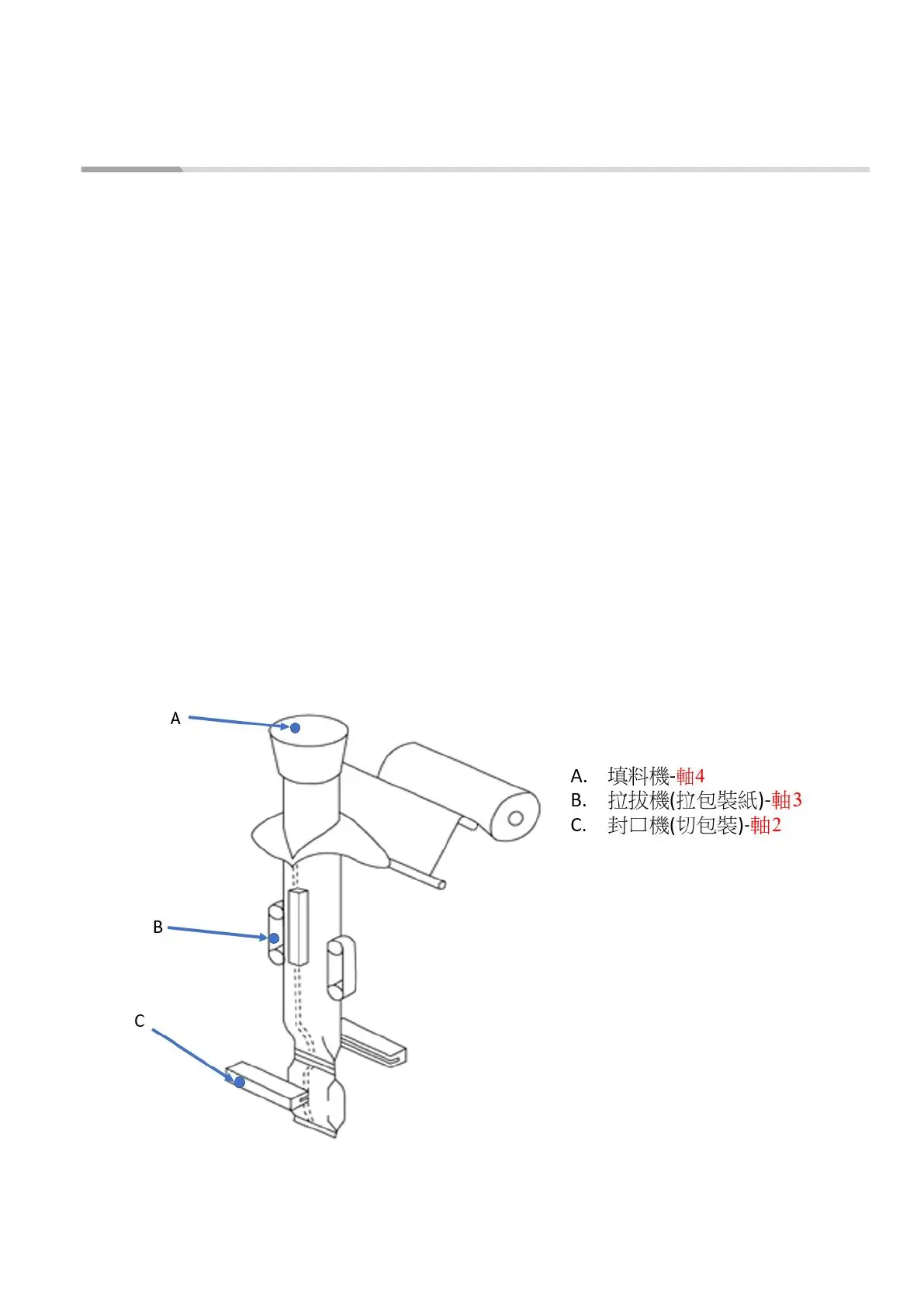

With E-CAM, use the reference axis to synchronously control the three axes of
A. Filling Machine/B. Drawing Machine/C. Sealing machine
In the following sample program, the axis numbers of Reference Axis 1/Reference Axis 2/Filling
Machine/Drawing Machine/Sealing Machine correspond to Axis 5/Axis 1/Axis 4/Axis 3/Axis 2.
#In this example, two virtual axes are used as the motion curve of the reference axis, in order to
demonstrate more motion control actions, so that users can be familiar with more motion control.
After familiarizing with this example, users can The program of the synchronous input axis can be
optimized according to the actual use.
Organization diagram
