FATEK M Series - 6-22 Set Mapping Table (ME_SET_MAP)

Chapter 6 Ladder Motion Commands
1-49
M-Series PLC Motion User Manual
6-22 Fun198 Set Mapping Table (ME_SET_MAP)
Fun198
ME_SET_MAP
Set Mapping Table
Fun198
ME_SET_MAP
Command Description

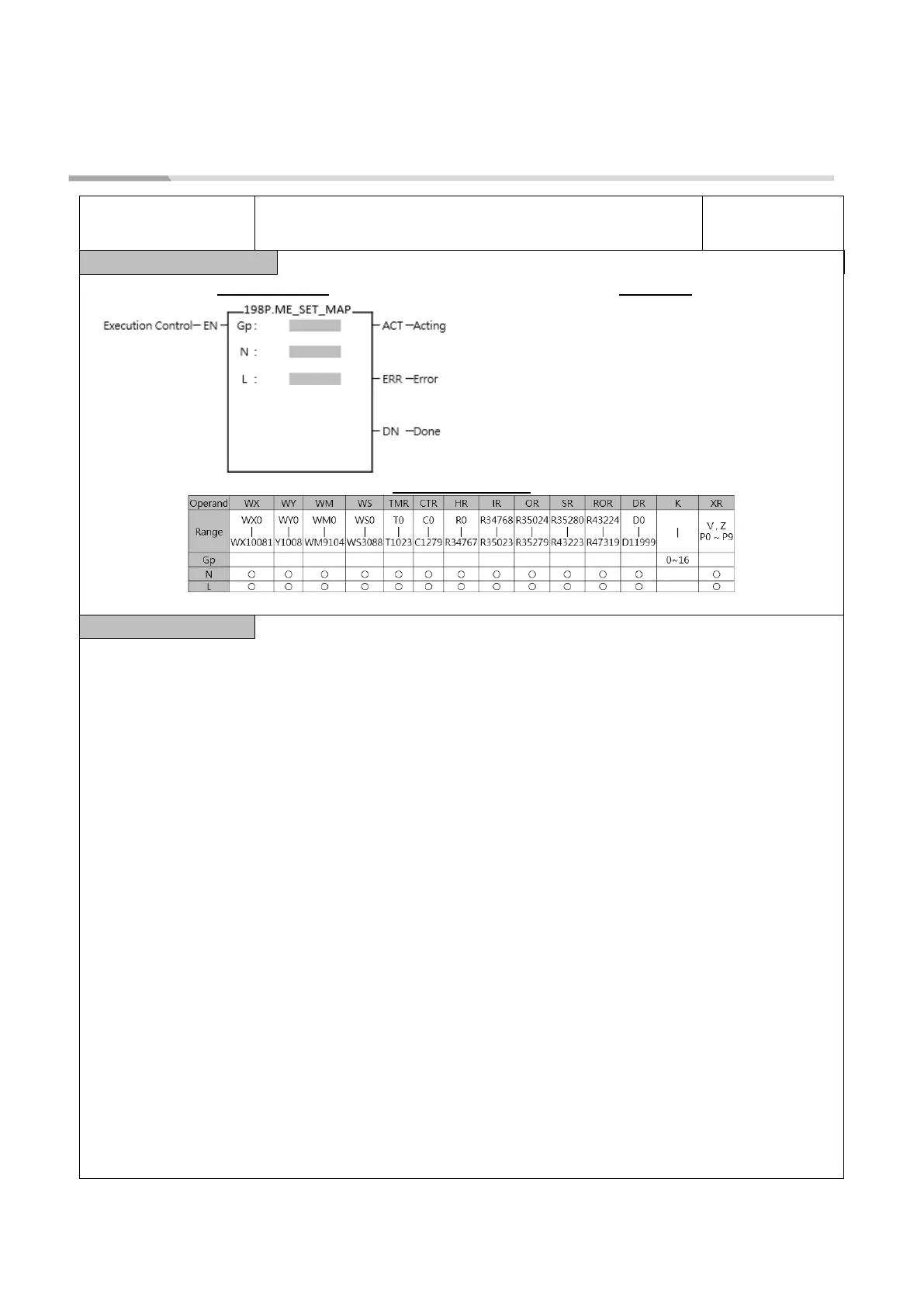

Ladder Symbol
Operands
Gp: Mapping Table Group No.
N: Mapping Starting Table No.
L: Consecutive Mapping Length
Relay and Register
Function Description
⚫ Operands
Gp (Mapping Table Groups No.): Group 1-16, 0 means all groups.
N (Mapping Table Starting Table No.): Mapping table number 1-1024, 0 means the entire
mapping table.
L (Consecutive Mapping Length): Number of consecutive mapping items
⚫ When the execution control [EN] changes from 0→1, Fun198 will map (write) the PLC register
to the motion control parameters.
When the execution control [EN] changes from 1→0, all output indications are reset.
⚫ When the mapping is being written, the output indication [ACT] will be ON.
⚫ When the mapping is being written, if an error occurs, the output indication [ERR] will be ON.
⚫ When the mapping is written in, the output indication [DN] will be ON..
