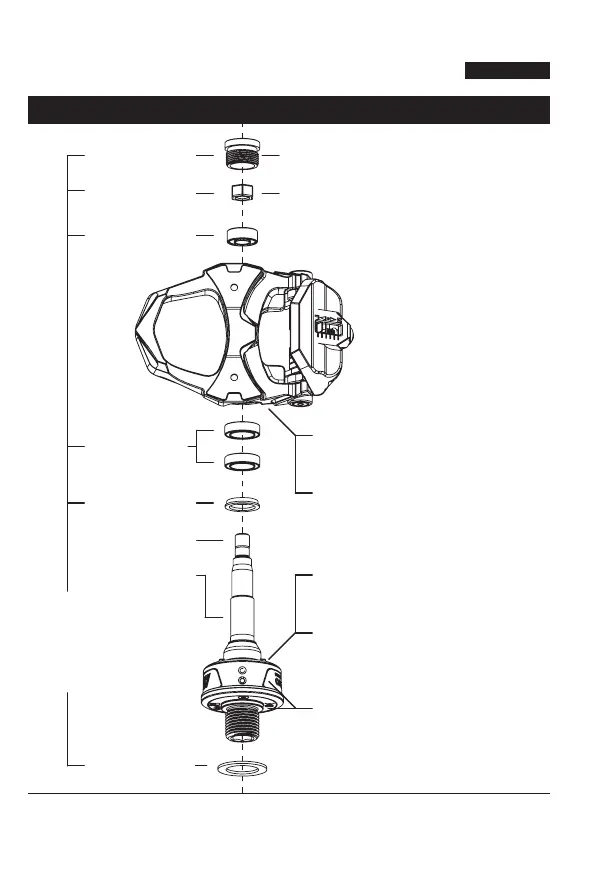

25. Exploded view of the components
Set of adhesive labels
Art. 772-94
• Tightening torque 2-3 Nm.
• Clockwise closing direction both
for right and left pedal
• Tightening torque 8-10 Nm.
• Clockwise closing direction for left pedal.
• Counter-clockwise closing direction for right pedal.
• Use a 9 mm socket wrench (CH9)
with max. 13 mm outer diameter
End cap (2-3 Nm)
M6 nut (8-10 Nm)
6/13 bearing
10/15 bearing
Left pedal body
Art. 772-60
Right pedal body
Art. 772-61
Oil retainer
Grease the axle with
lithium grease
Assioma sensor on left axle
Art. 772-64
Bearing set, M6 nuts,
oil seal, end caps, washers
Art. 772-72
Assioma sensor on right axle
Art. 772-65
14x20x1 washer
Pay attention not to
grease the thread
